Lets have thread for custom turbo setups and pictures to give ideas to those that might be fabricating their own setups.

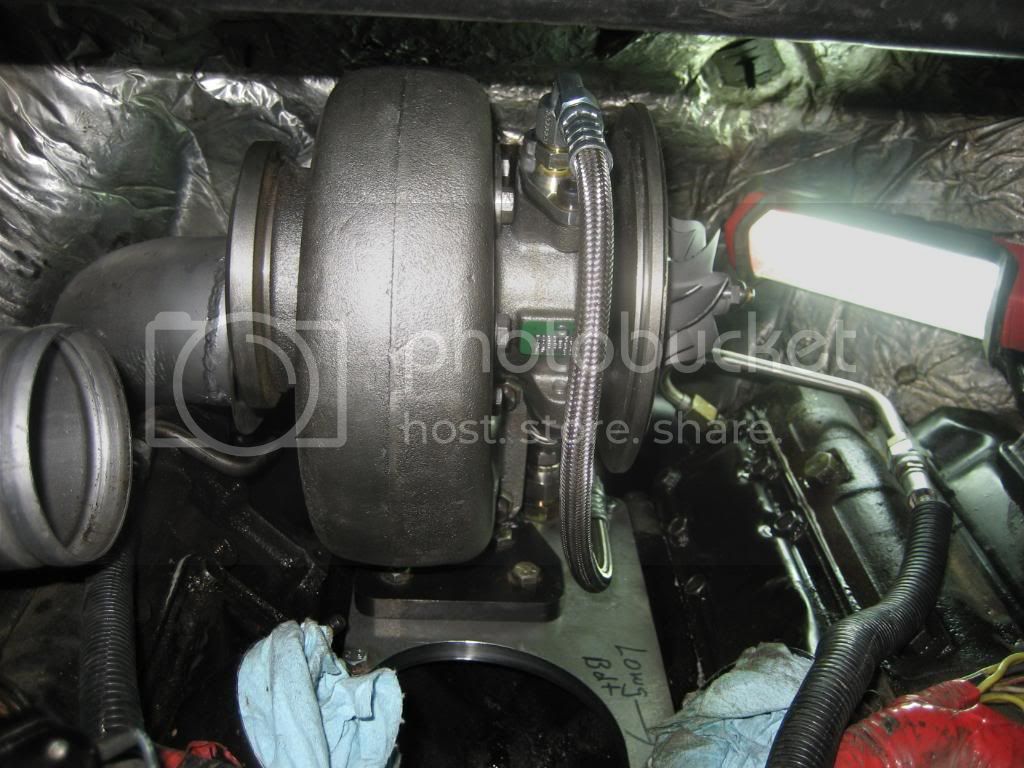

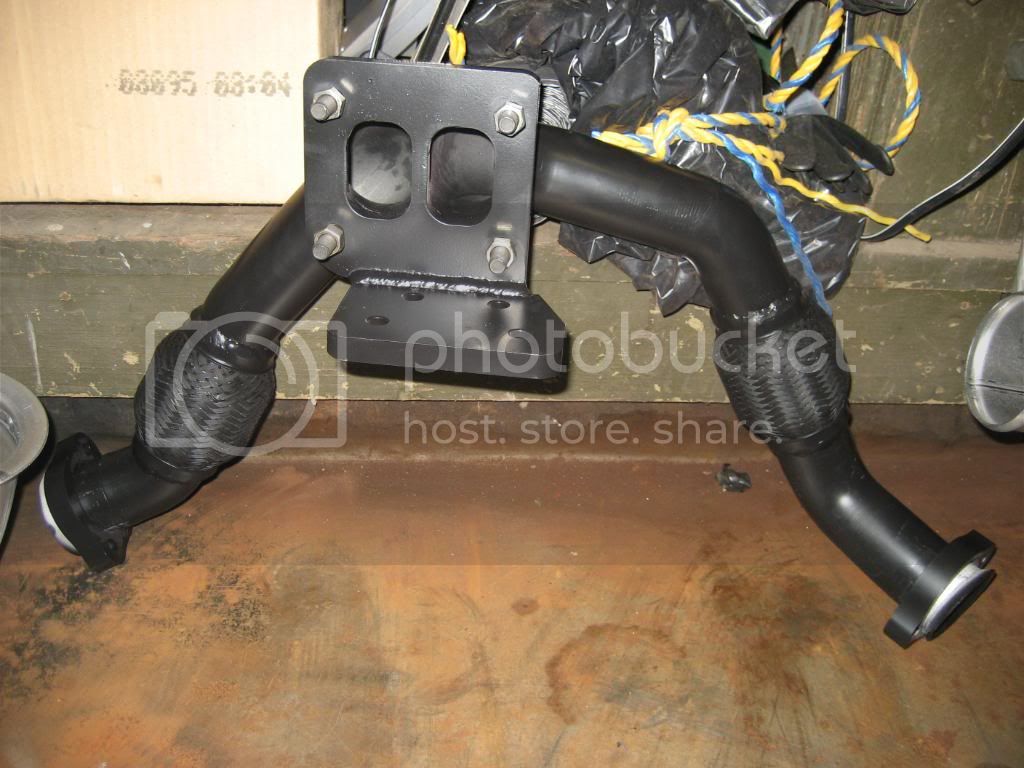

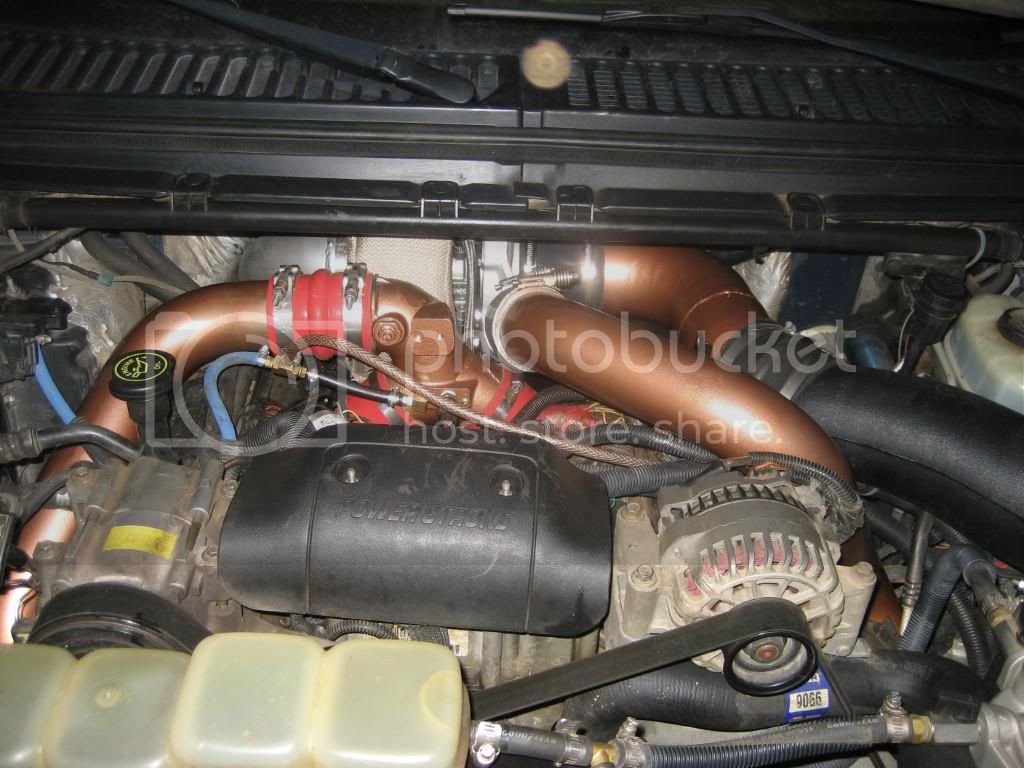

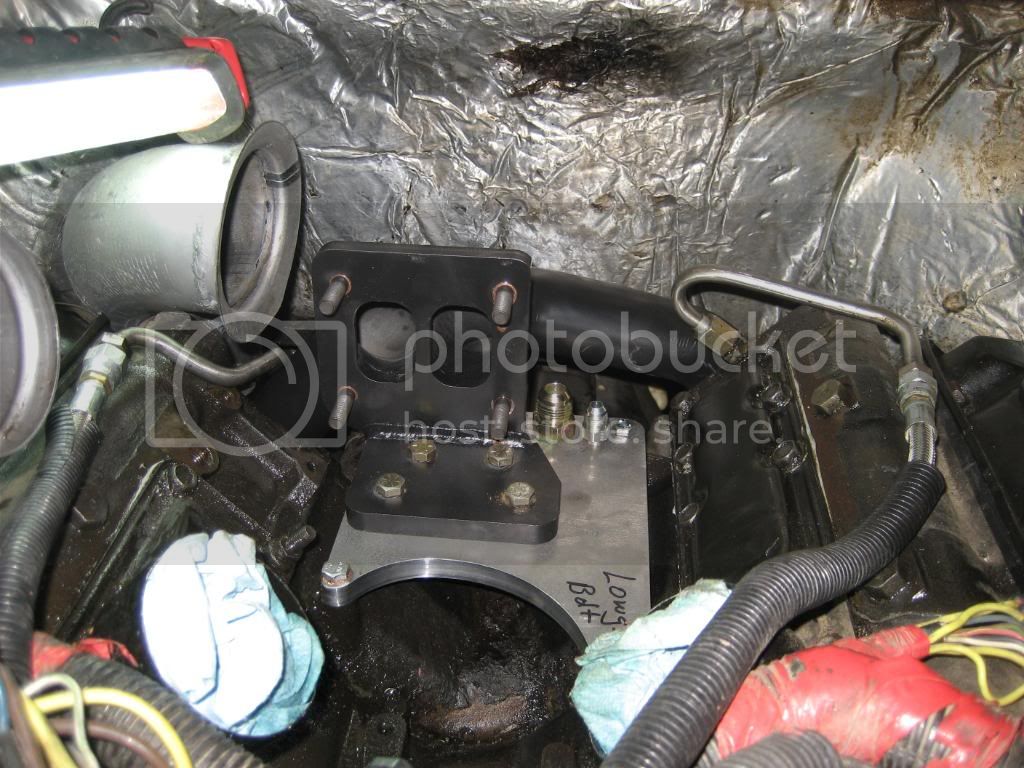

I'll start: Billet wheeled S400 based turbo setup for 2.6 sled pulling, Murff mount, custom "Y", IC plumbing, hood stack, etc...







a_moore

Active member
Joined
May 22, 2011
Messages
354
Reaction score
34
Location
Blowing in the wind

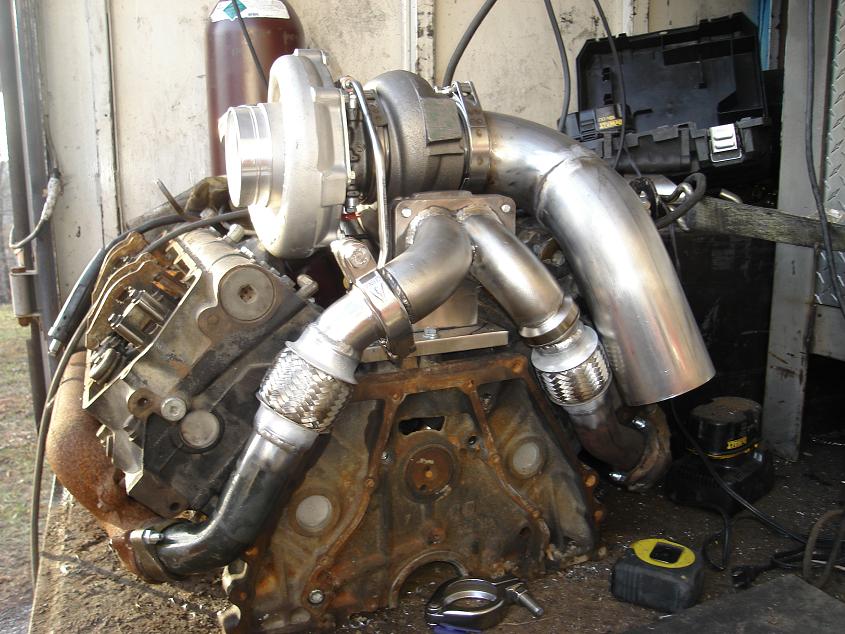

Garrett/Volvo GT4594 and mount kit I made for a member a while back.

68X94 Comp 88X82 1.19 T6 Exh


Attachments

  • DSC01587i.jpg
    277.9 KB · Views: 1,011
  • DSC01588mod.jpg
    116.5 KB · Views: 1,007
Last edited:

a_moore

Active member
Joined
May 22, 2011
Messages
354
Reaction score
34
Location
Blowing in the wind

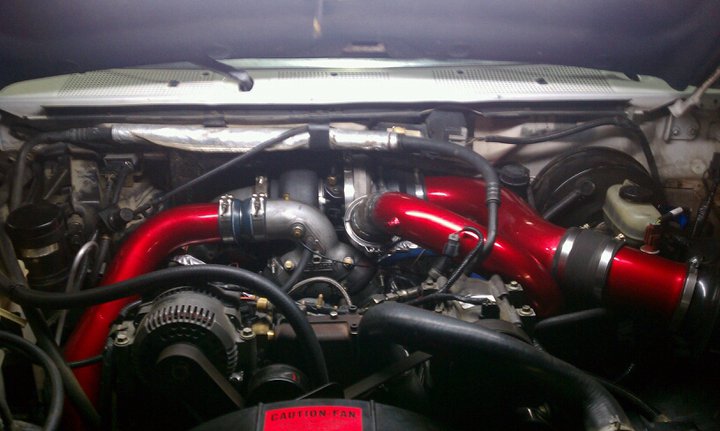

On my old 7.3

This was the infamous Chinese GT45 that would not die, later upgraded to the GT4594 setup exactly like the one seen above.


Attachments

  • cai%20003.jpg
    263.6 KB · Views: 860
  • cai%20005.jpg
    284.5 KB · Views: 959

Derek@Vision Diesel

New member
Joined
May 18, 2011
Messages
5,054
Reaction score
0
Location
Canby, OR
very good looking mounts! Its always good to see other peoples ideas under the hood, even thoug i probably wont ever have the skill to duplicate most


JD3020

Active member
Joined
May 18, 2011
Messages
4,002
Reaction score
0
Location
Farmersville/Dayton, Oh
I wish i could fab up stuff halfway decent. I have a entire spare motor sitting in the shop, a TIG welder, a stick welder, and a buddy that is a manager at Fastenal. I'm just itching to make myself a turbo set-up, but i know that with my skill it wouldn't fit in the truck and would look like a pile of dog **** compared to everybody elses.LOL
