2012 Excursion Conversion

[NorthCentral Customs]

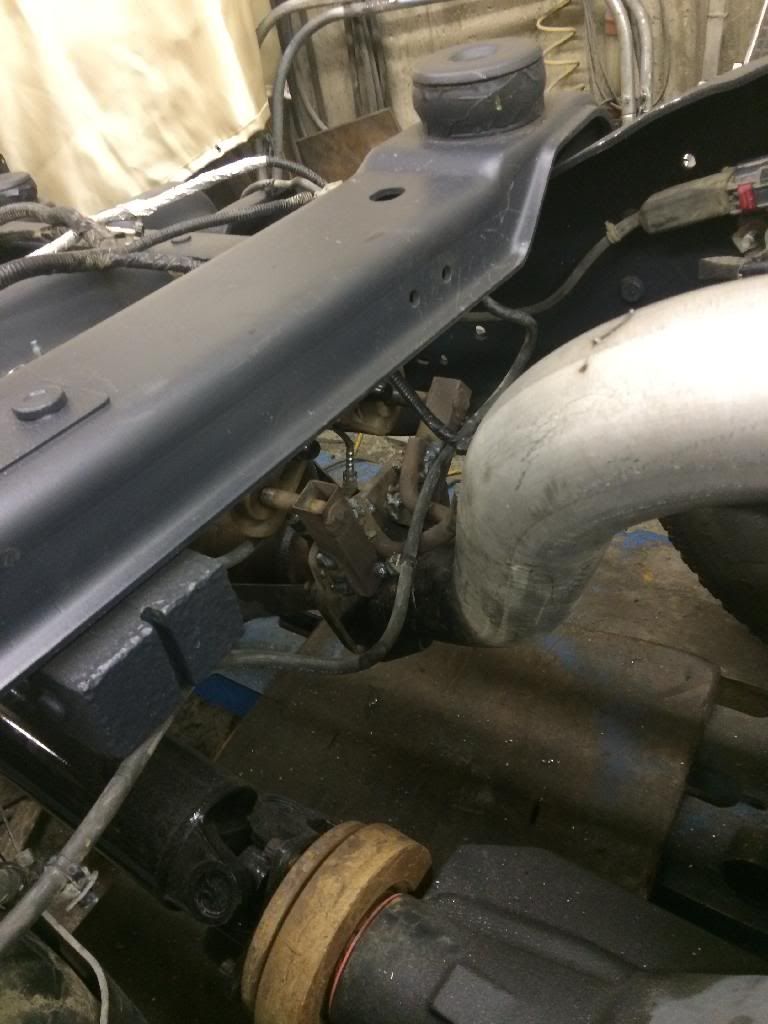

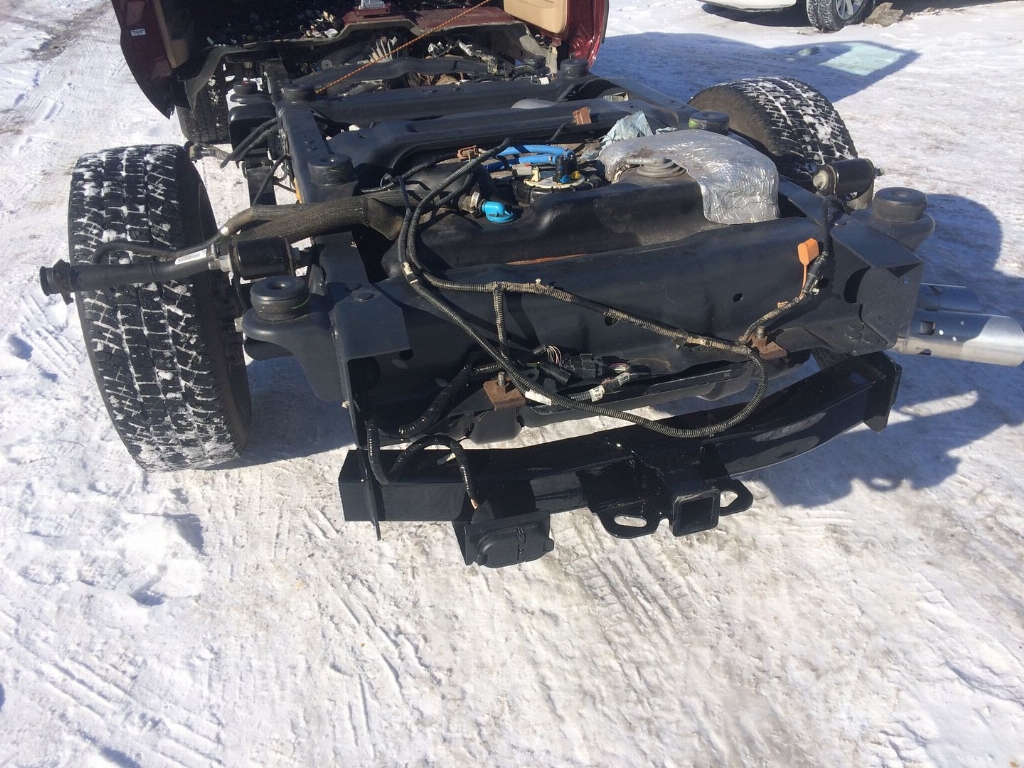

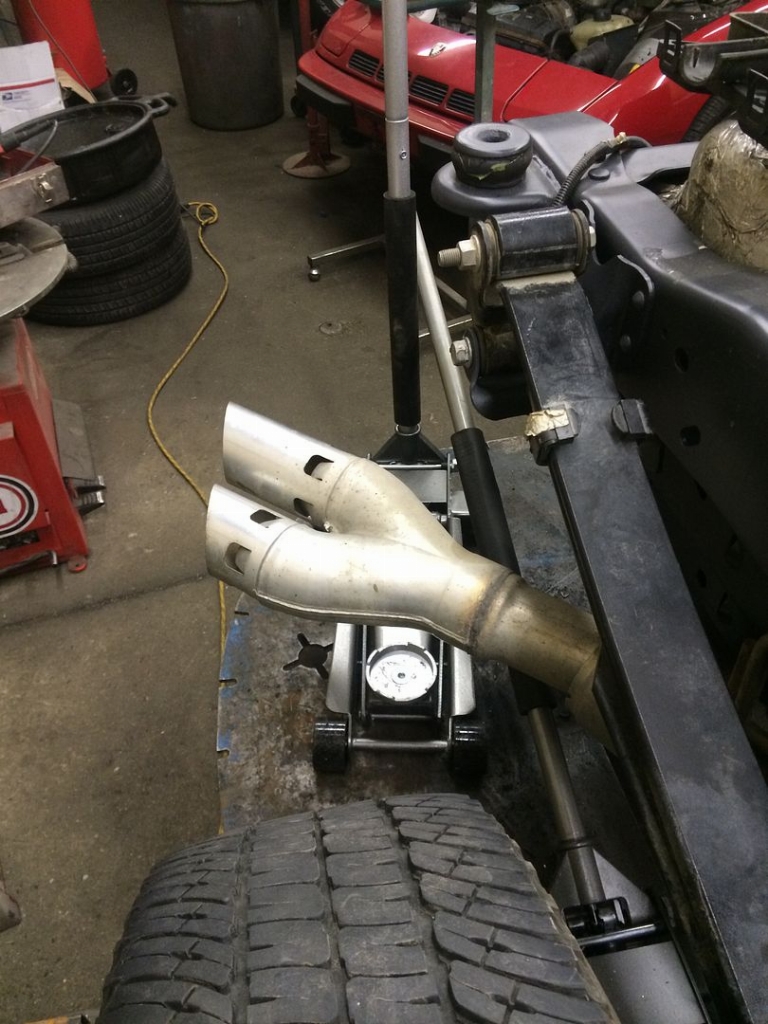

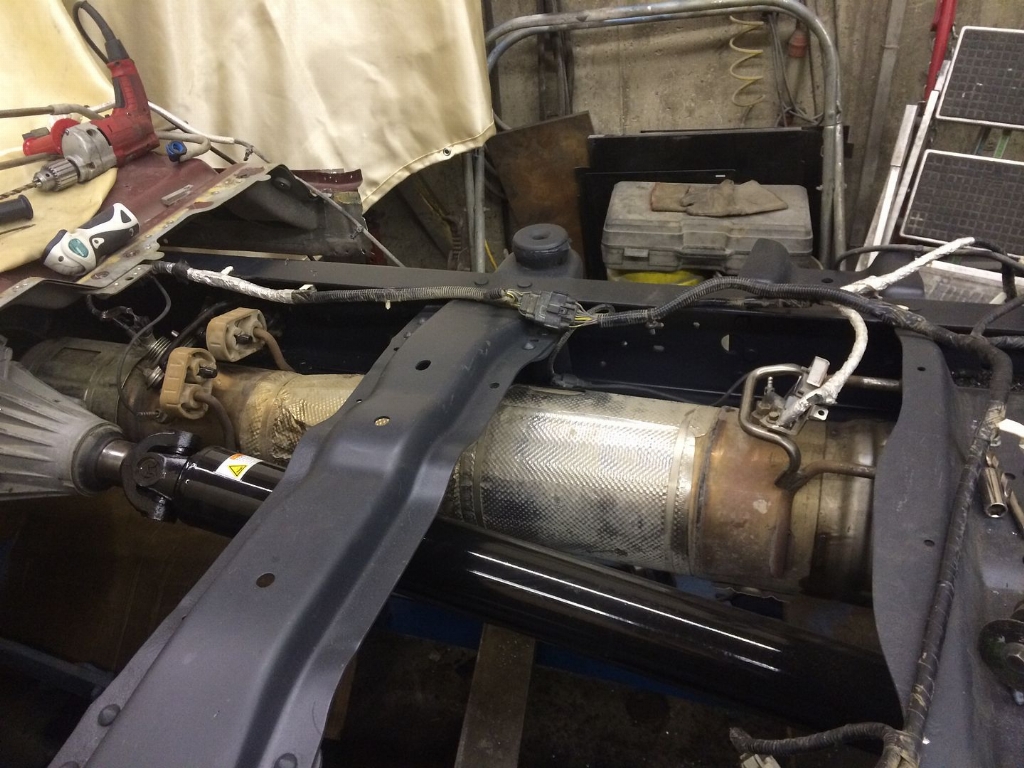

Got all the exhaust reconfigured and hung. All the wiring figured out. Last to do is plumb the fuel lines and drill one hole for the new shocks.



[NorthCentral Customs]

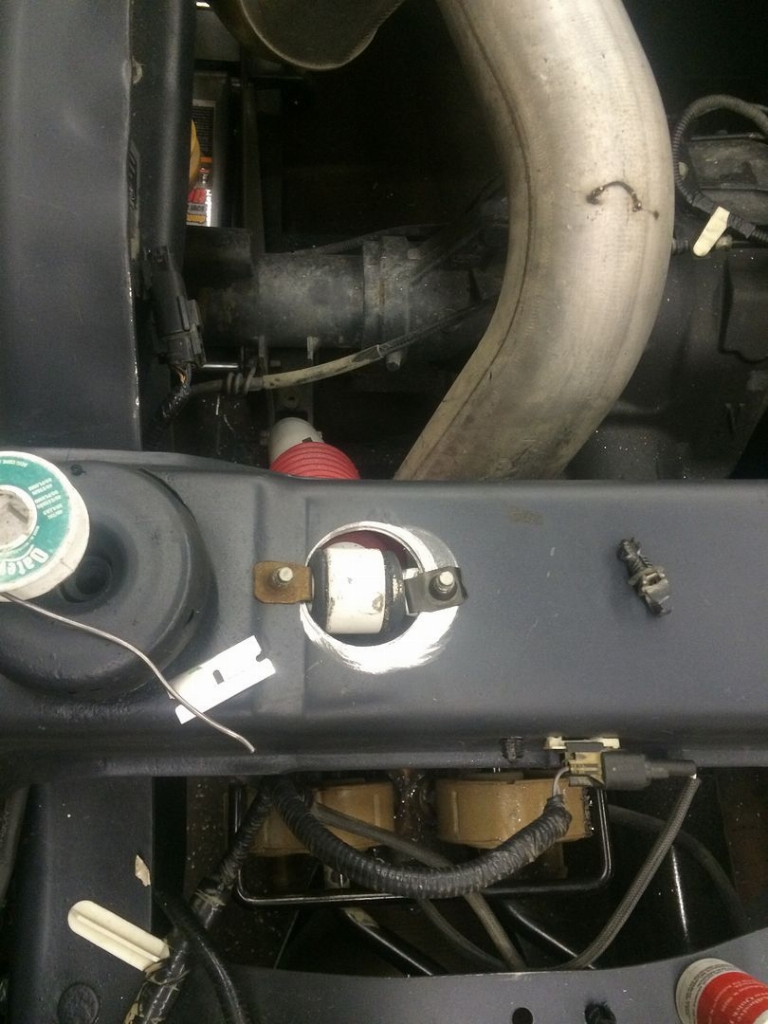

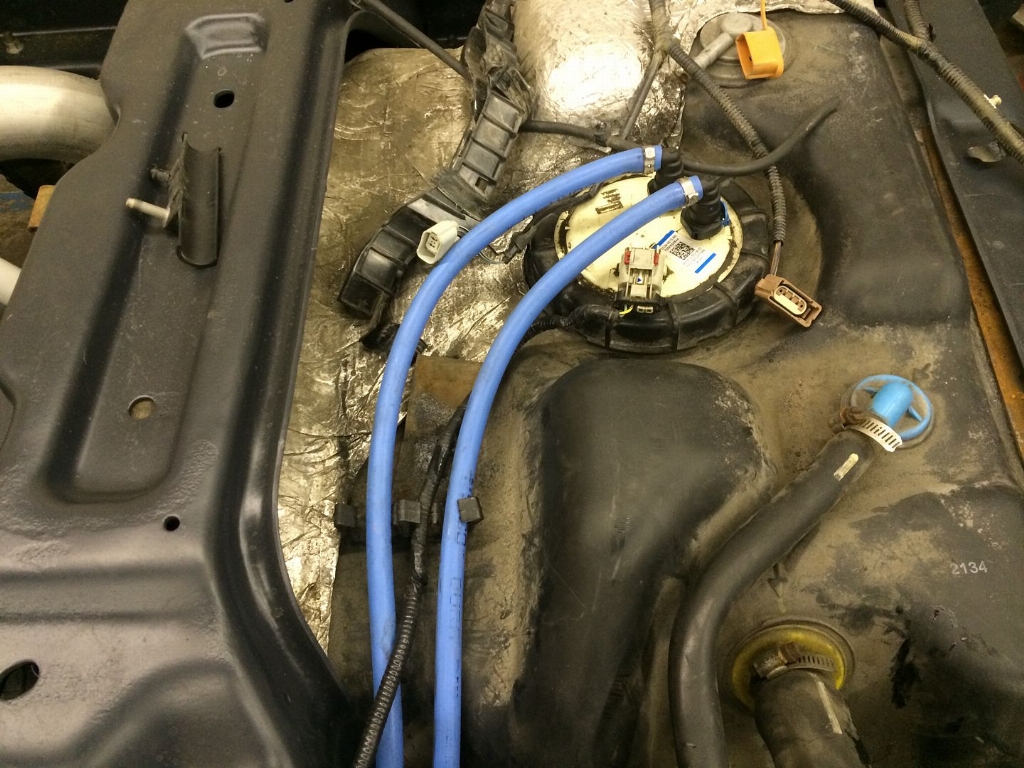

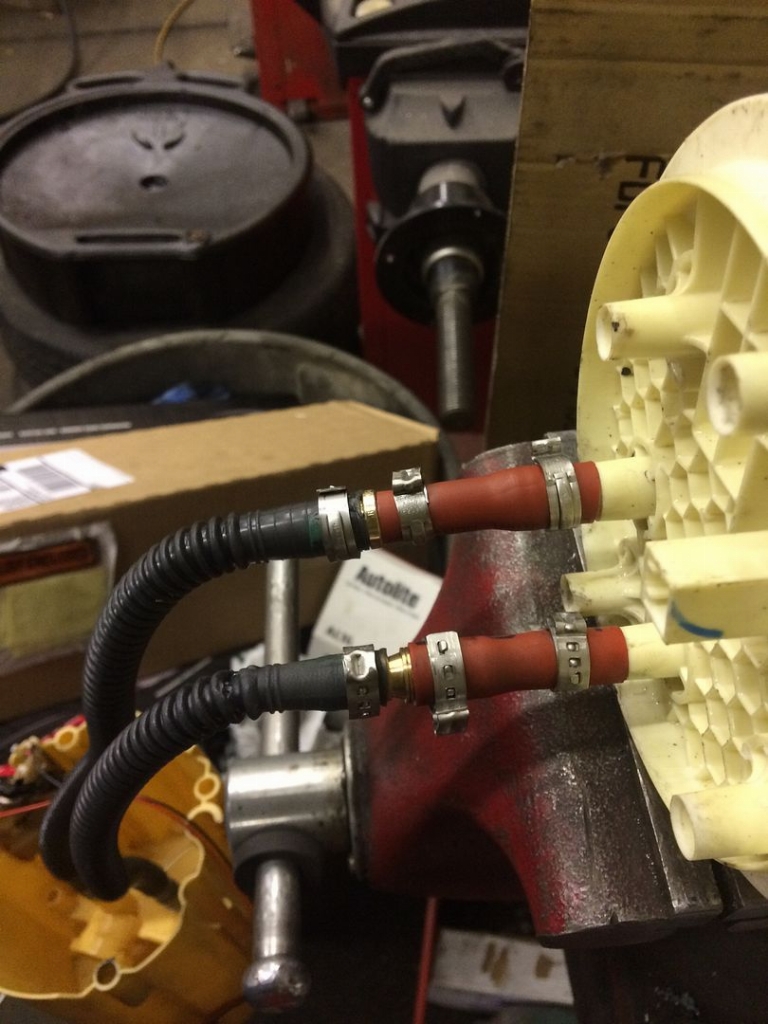

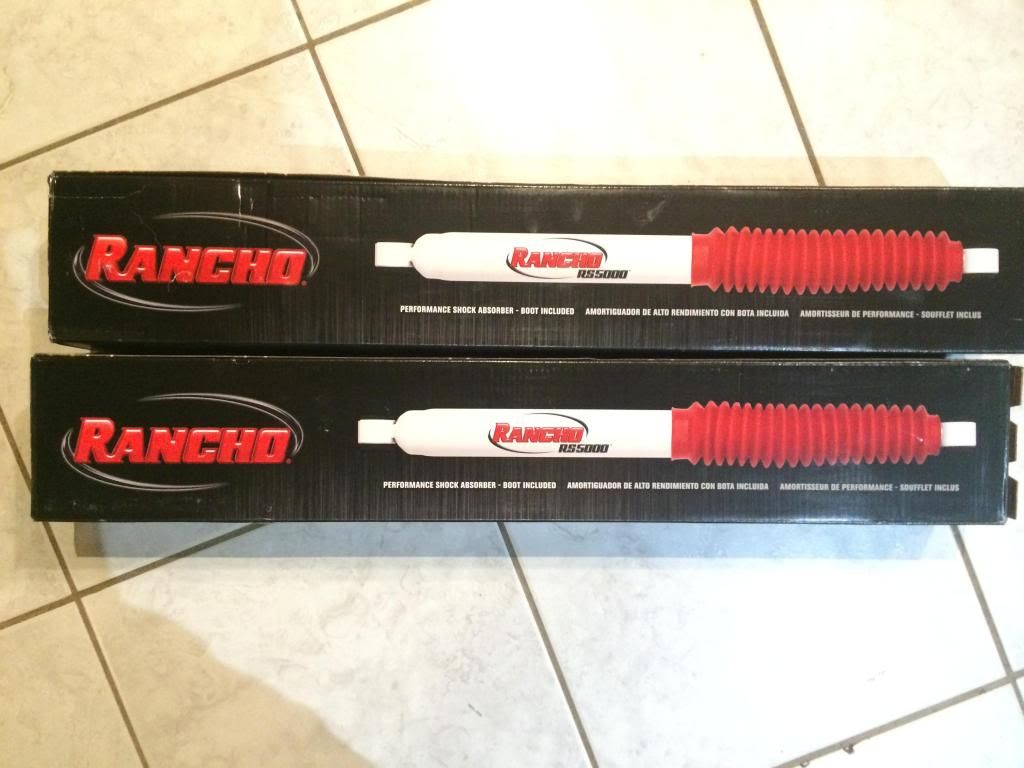

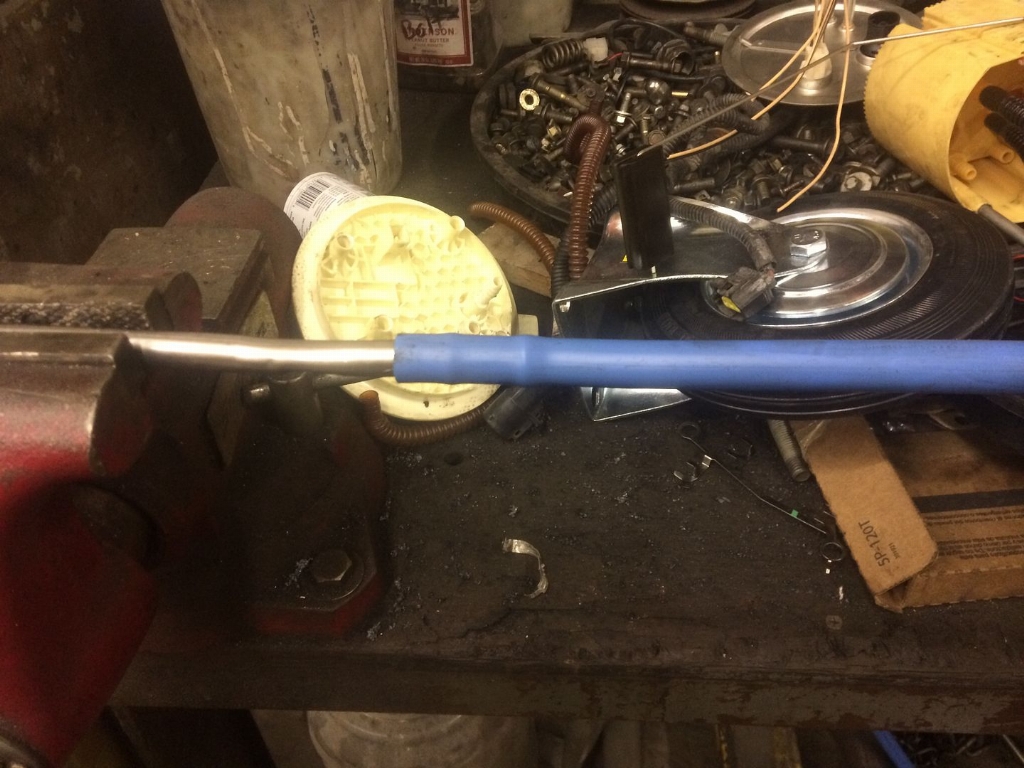

Got the shocks installed, broke out the bottom of the tank for the sending unit out of the 12. Need to lengthen the sending unit hoses and rods. So the gauge reads right. Also started lengthening the fuel lines.



[NorthCentral Customs]

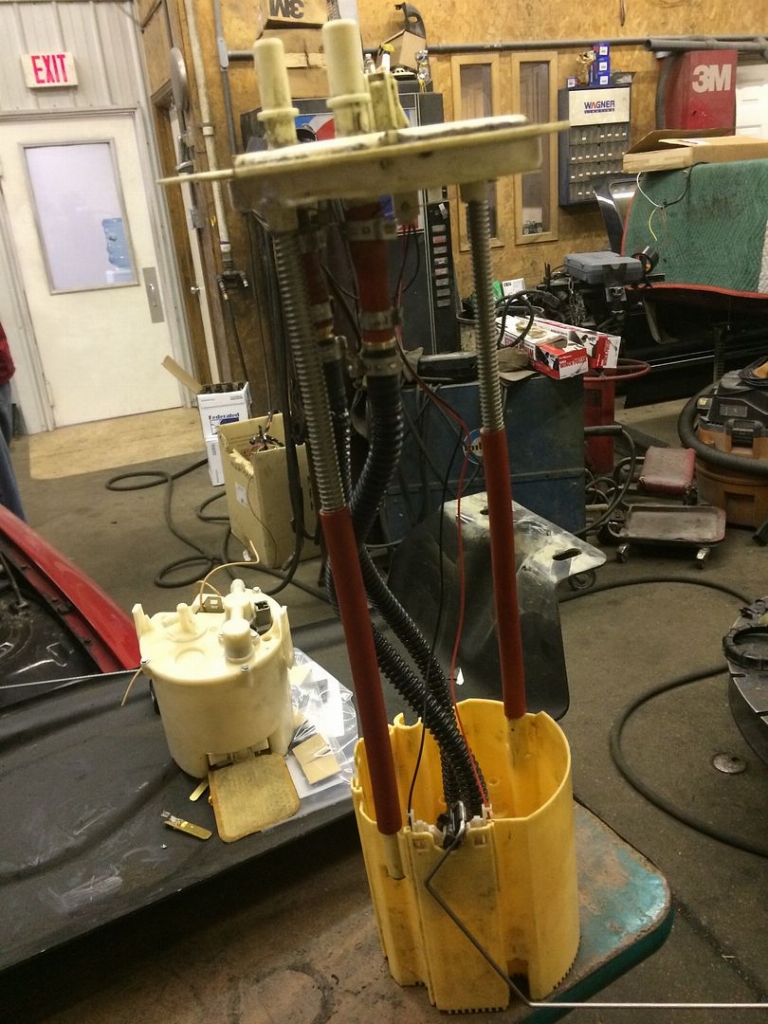

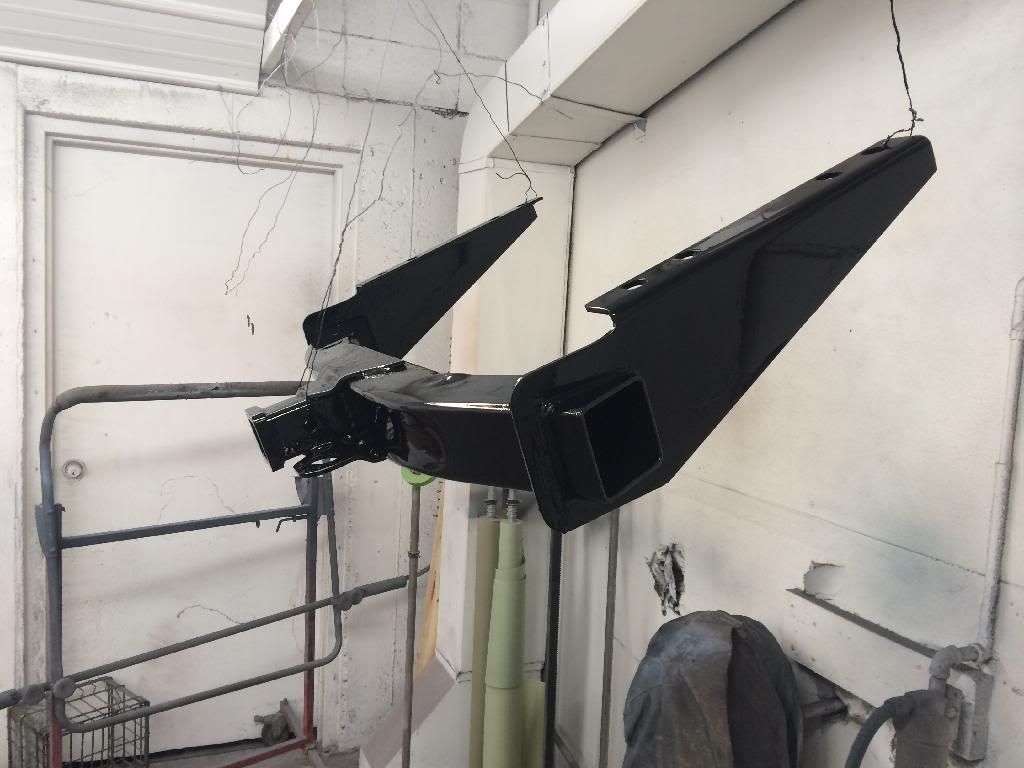

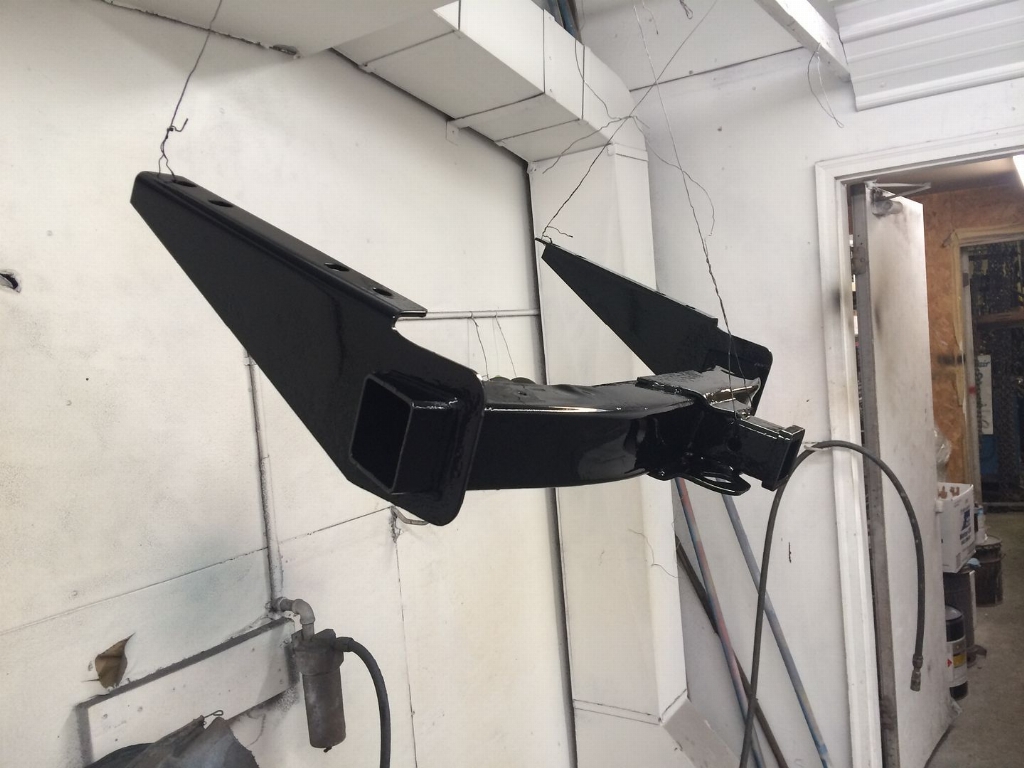

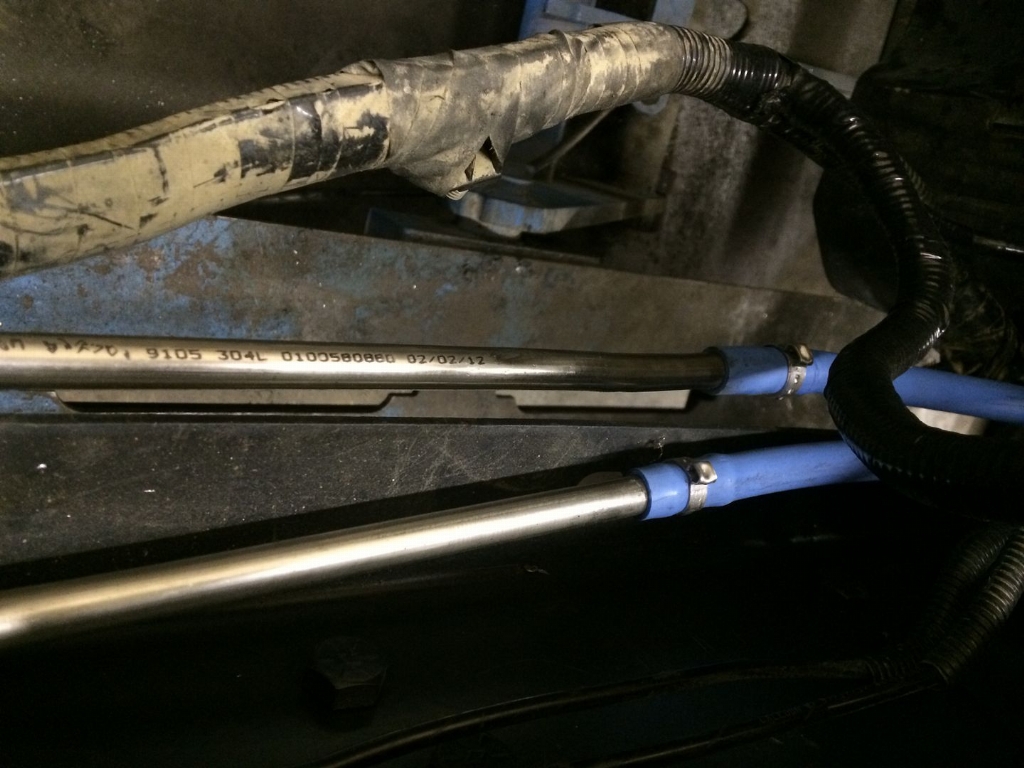

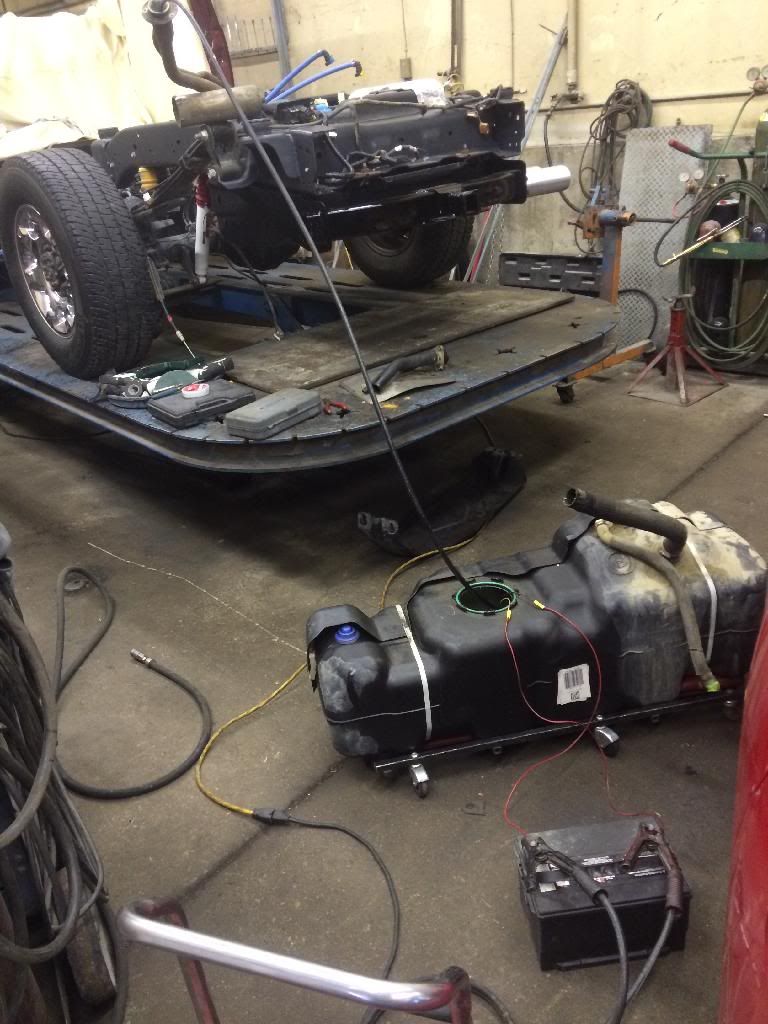

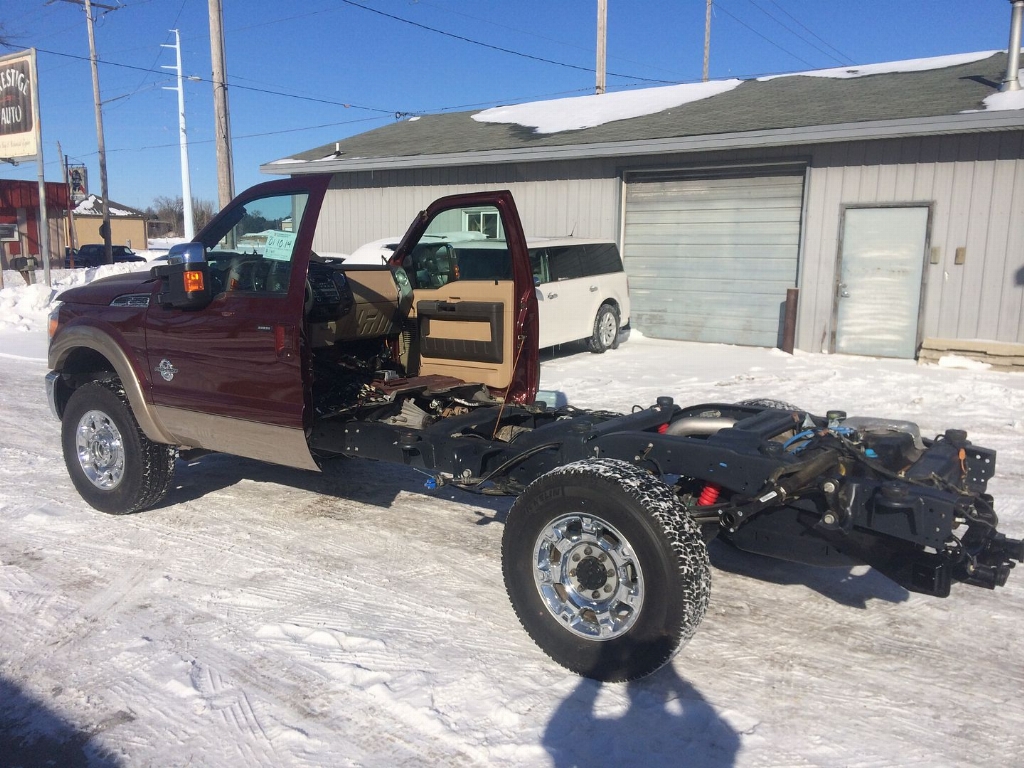

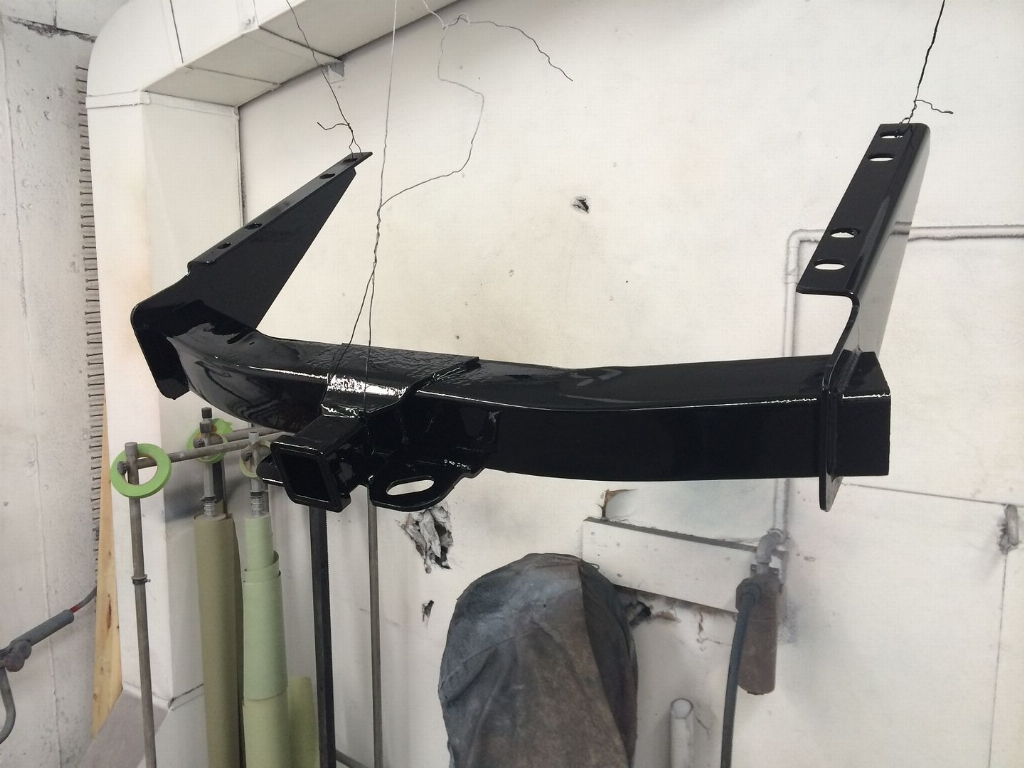

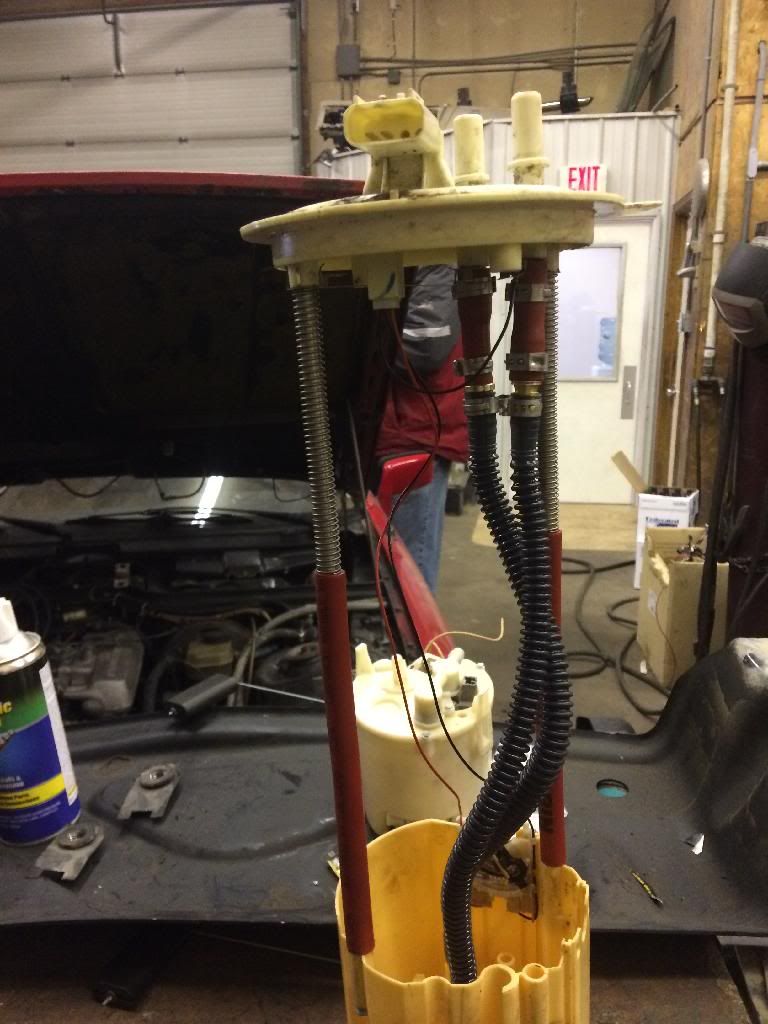

Fuel sending unit lengthened and installed, fuel lines all ran and hocked up, took the hitch back off and sanded and painted it with industrial paint. Fuel tank has to come back down to put the hitch back on because you can't get your hands in the frame to position the nuts/keepers for the hitch bolts and you defiantly can't do it when the body's on. Monday straighten up the wires and fuel lines, take the tank back down put up the hitch, reinstall the tank and transfer the fuel from the 12 into the Ex, fire her up and driver off the frame rack and set the body on the frame.



[NorthCentral Customs]

http://www.youtube.com/watch?v=SYu7unEbk7s&feature=em-upload_owner



[NorthCentral Customs]

Everything all tided up. Used the V10 pump to transfer the Diesel from the 12 tank to the ex tank, swapped the filler necks and tubes. Got the 12 Excursion running today. Tomorrow but on the body and do the parking brake.



[NorthCentral Customs]

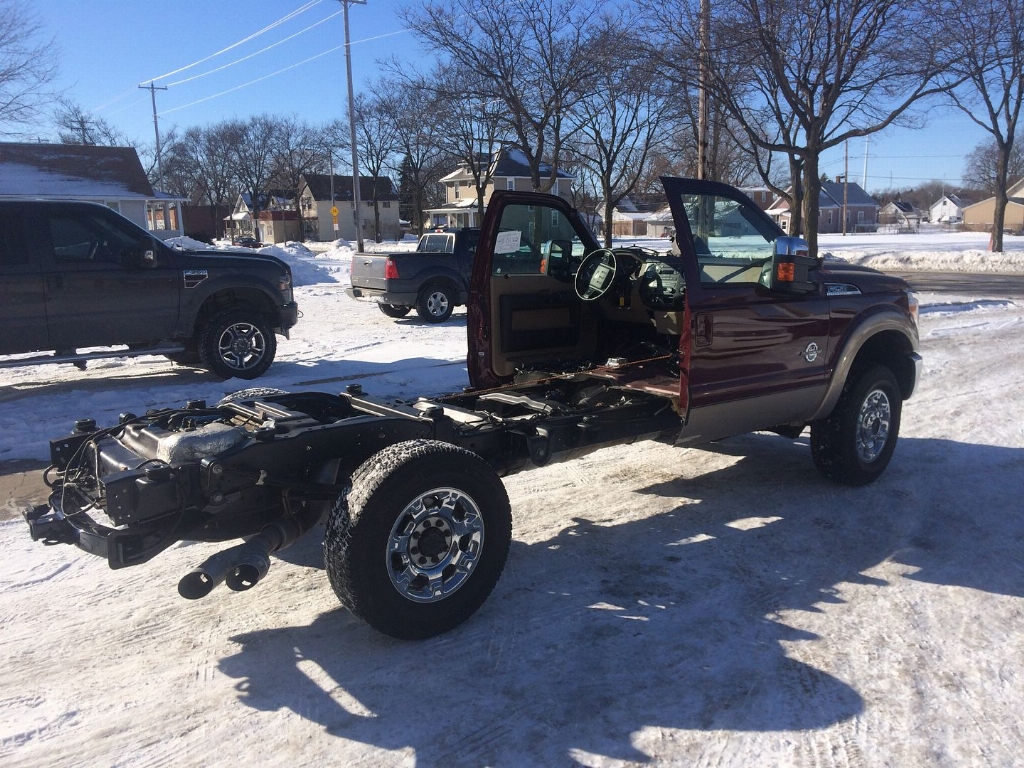

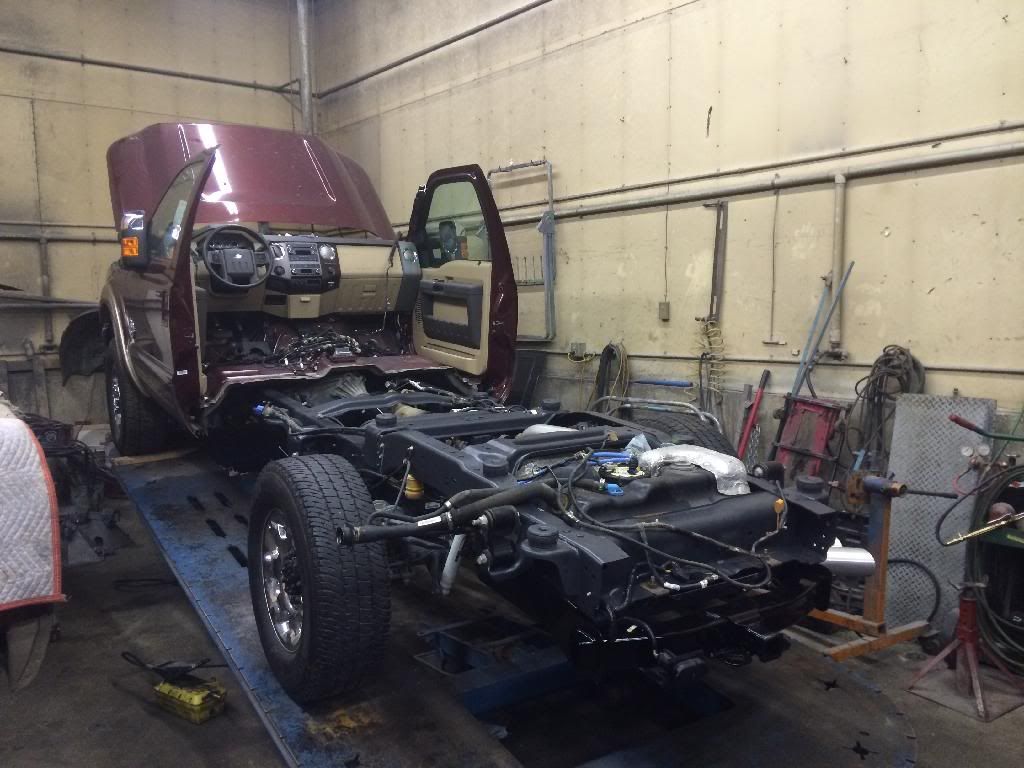

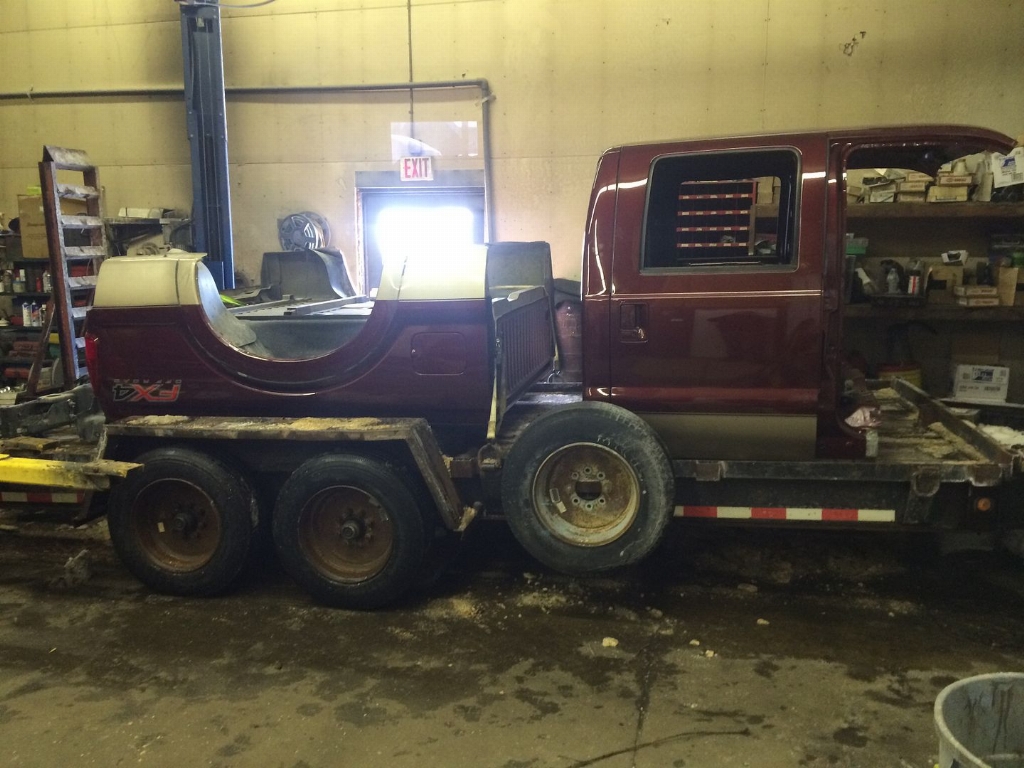

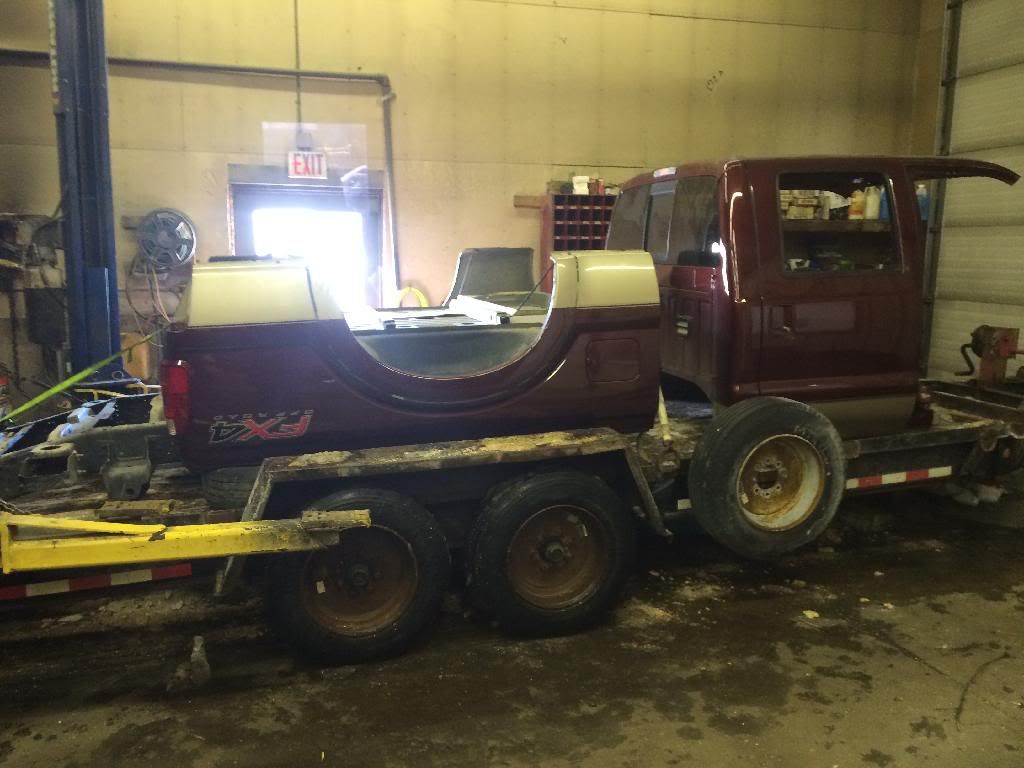

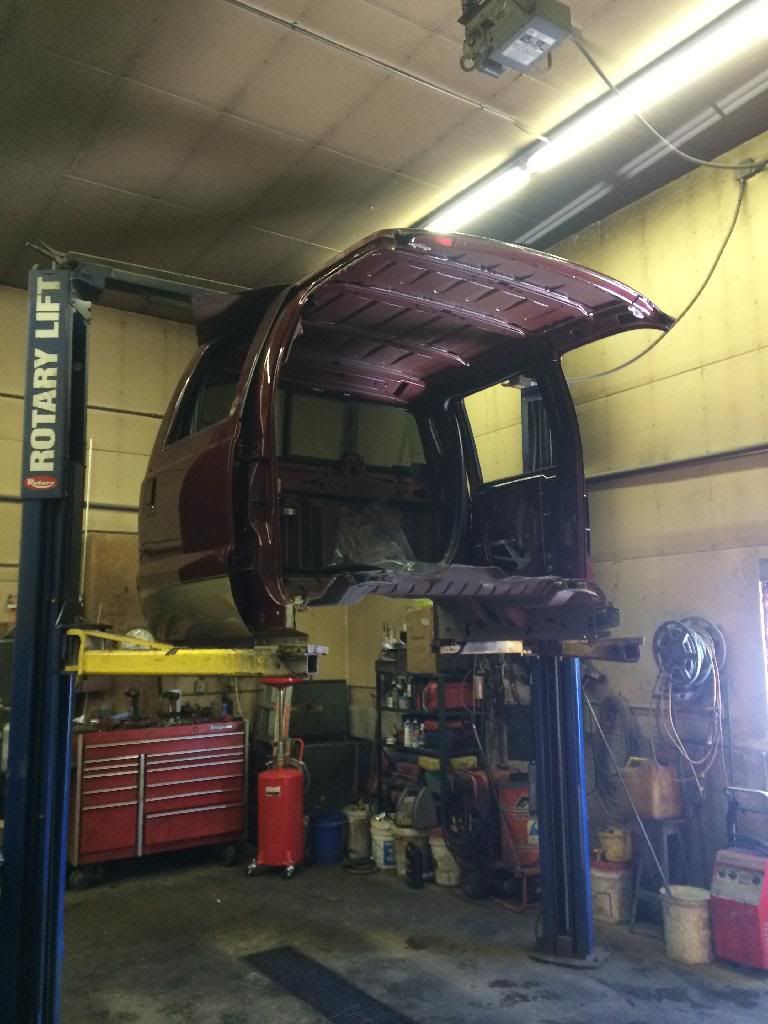

Body back on, doors back on, body jigged in and weld in place, Tomorrow welder up.



[NorthCentral Customs]

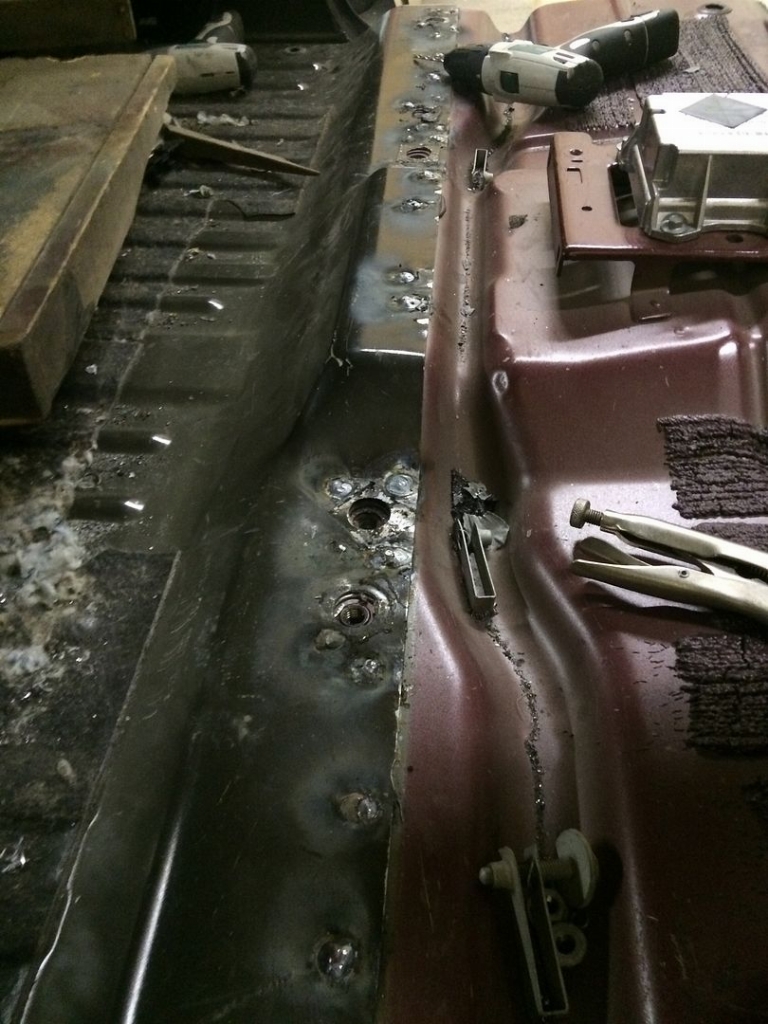

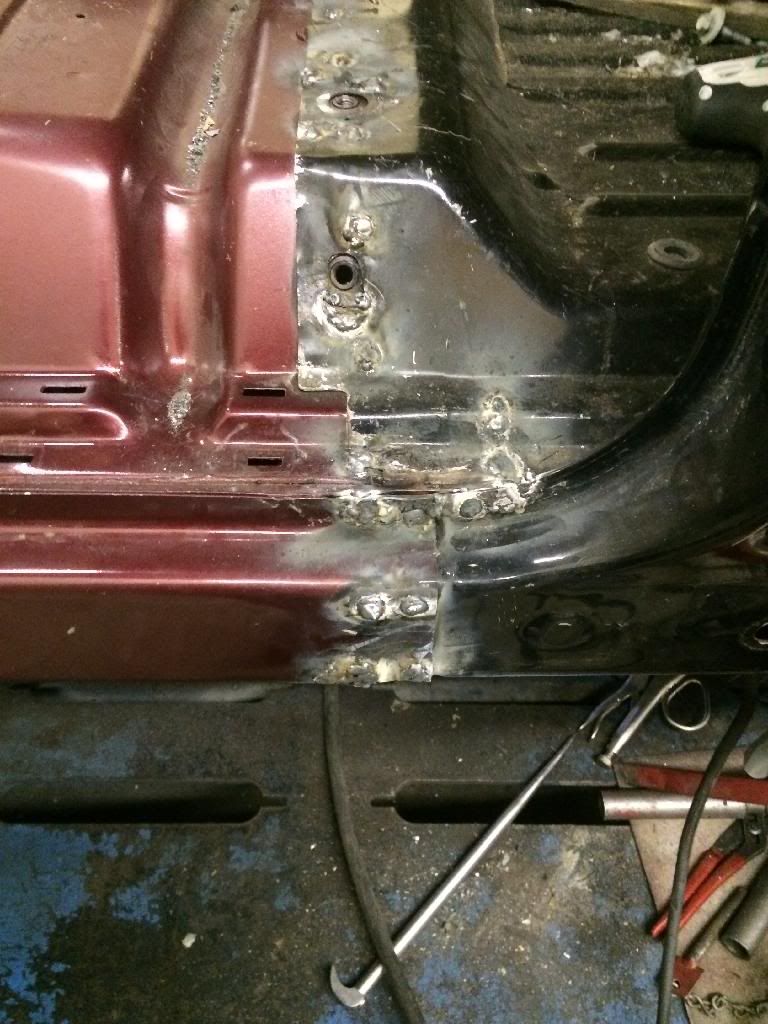

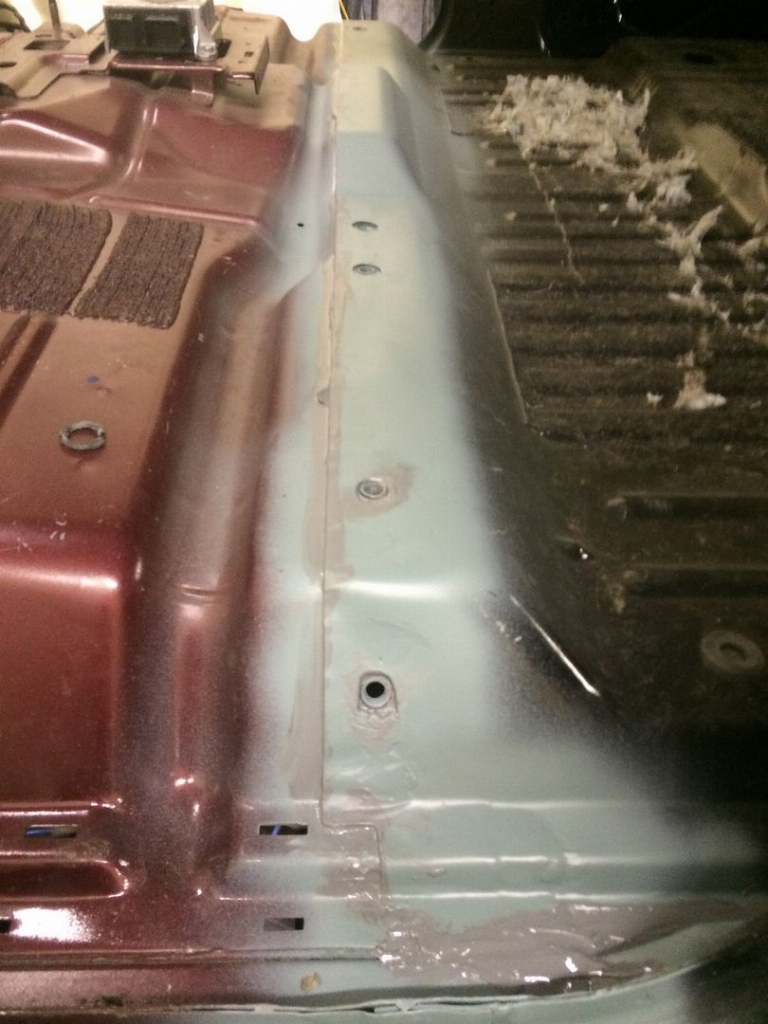

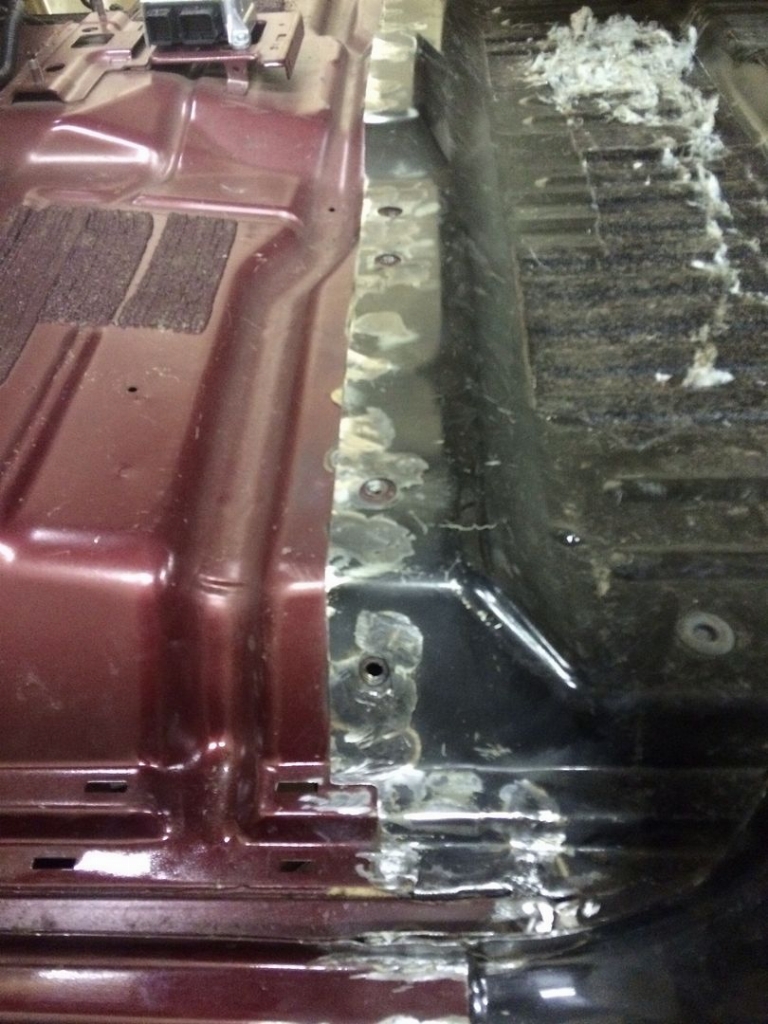

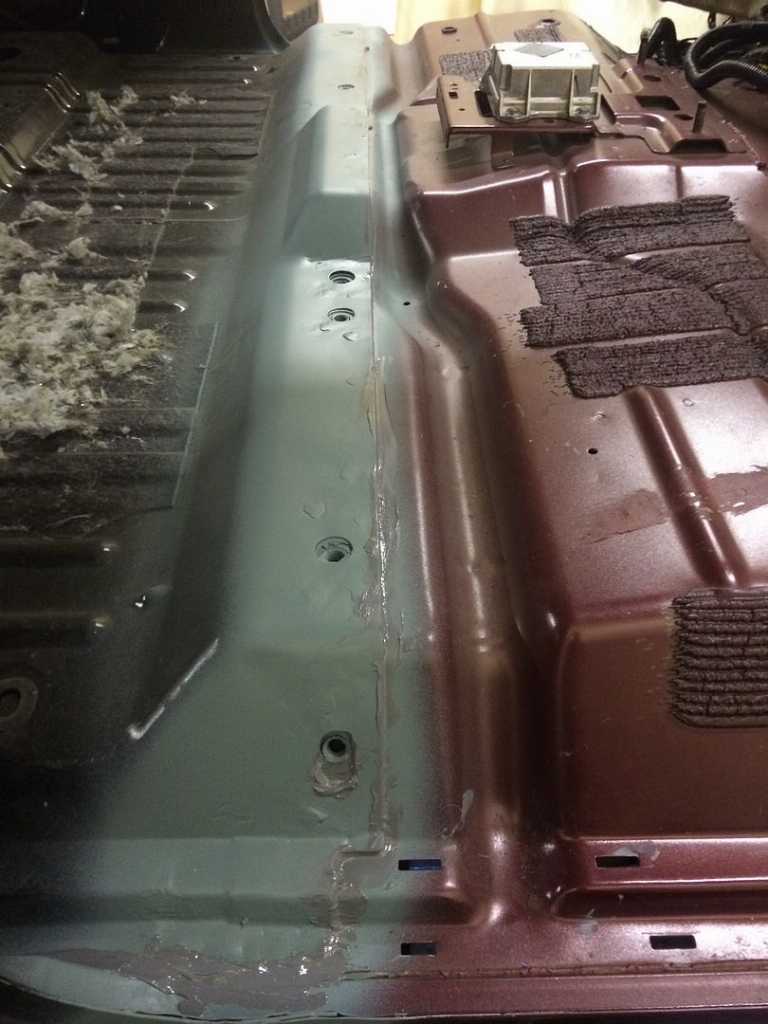

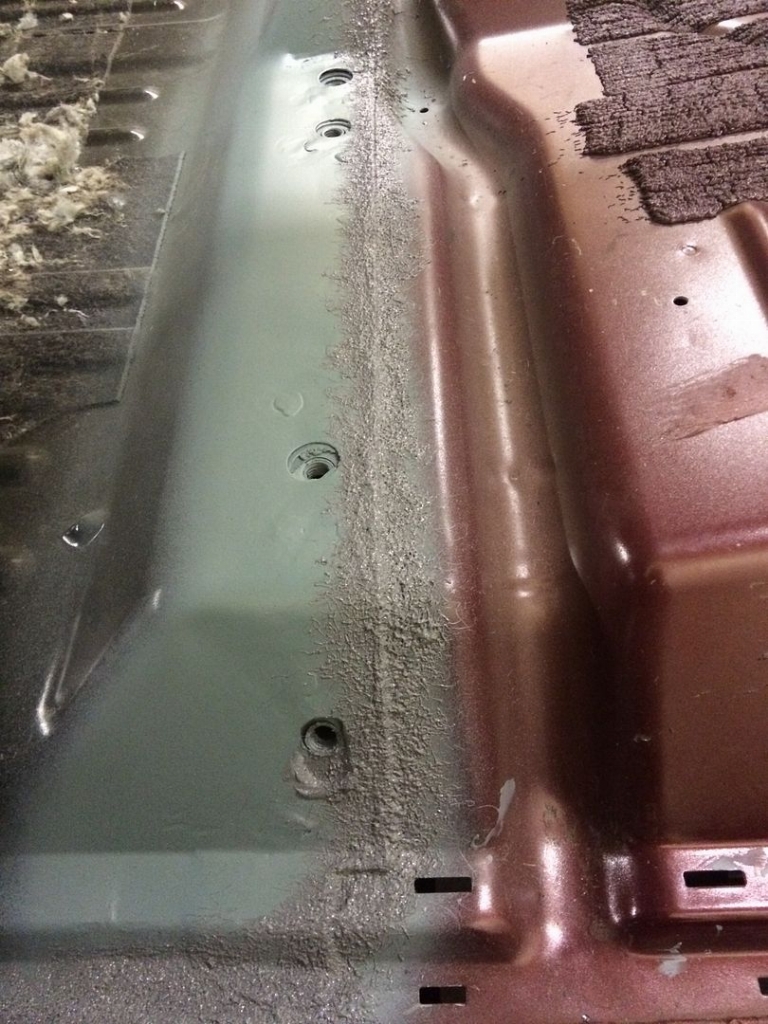

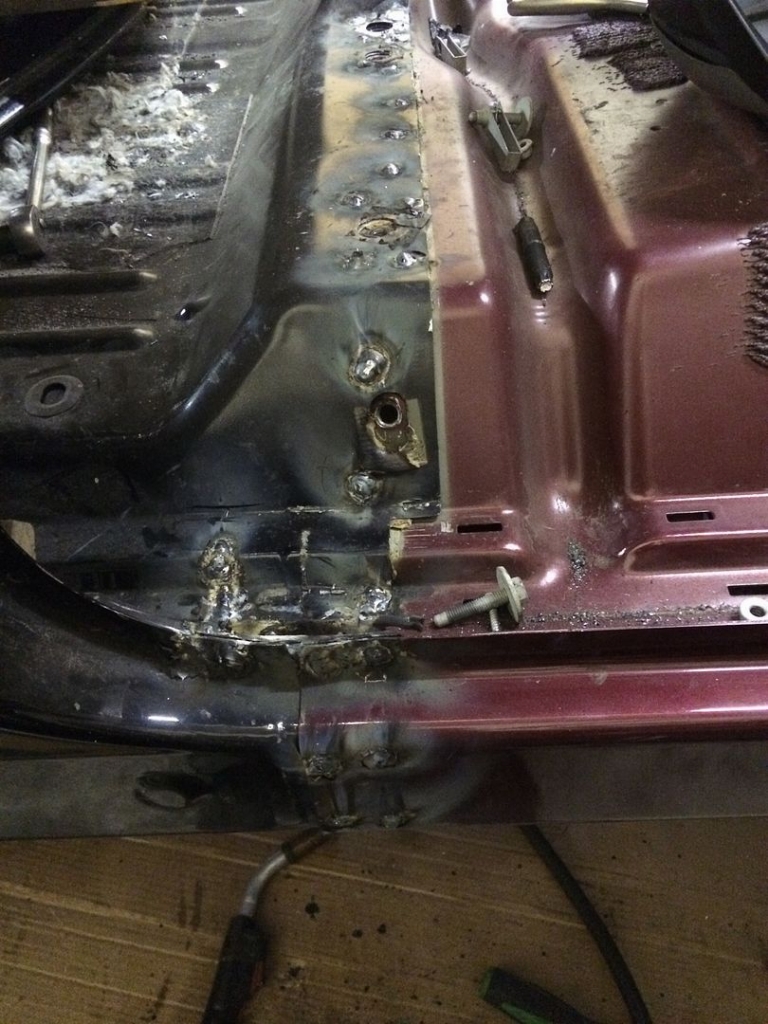

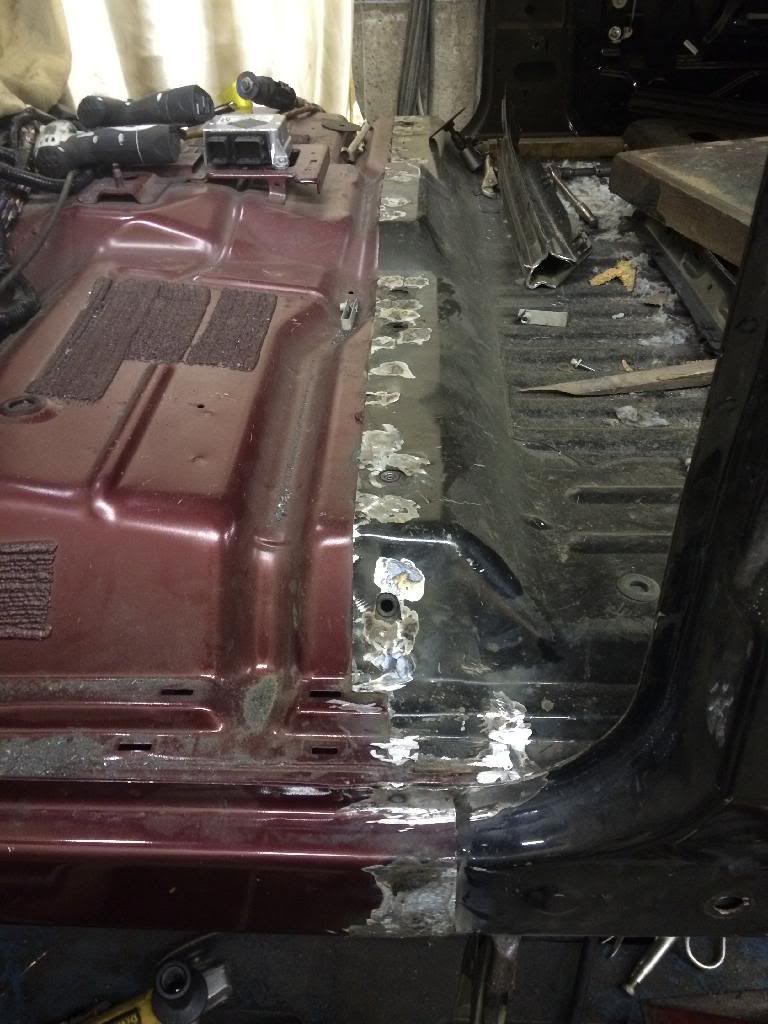

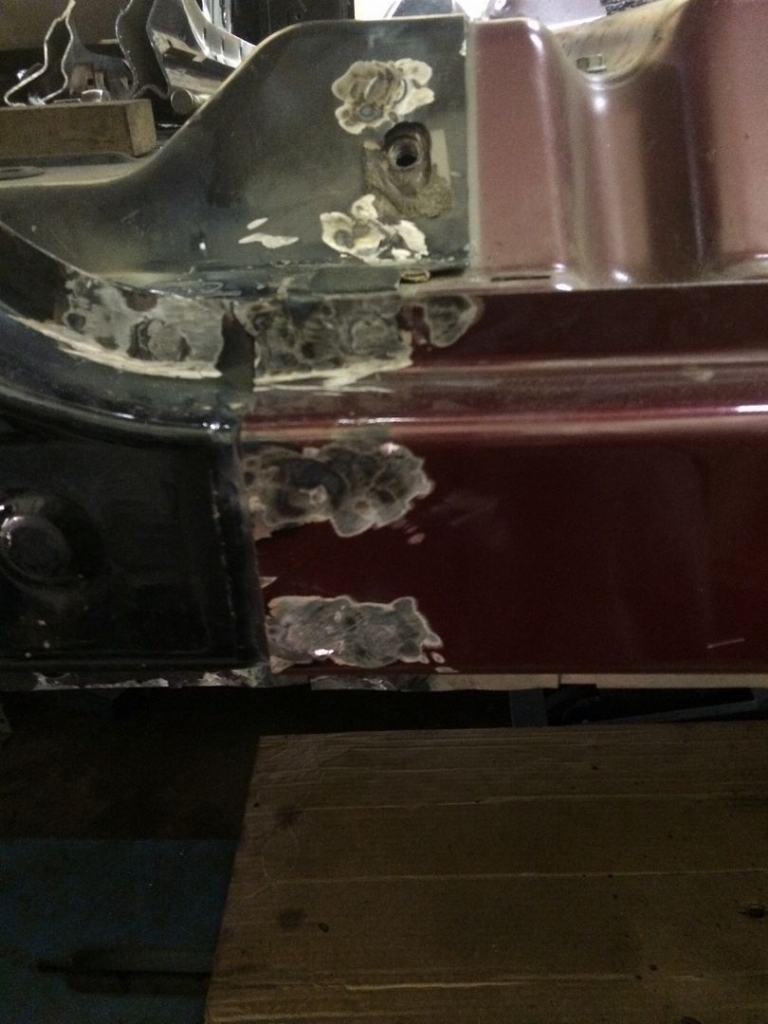

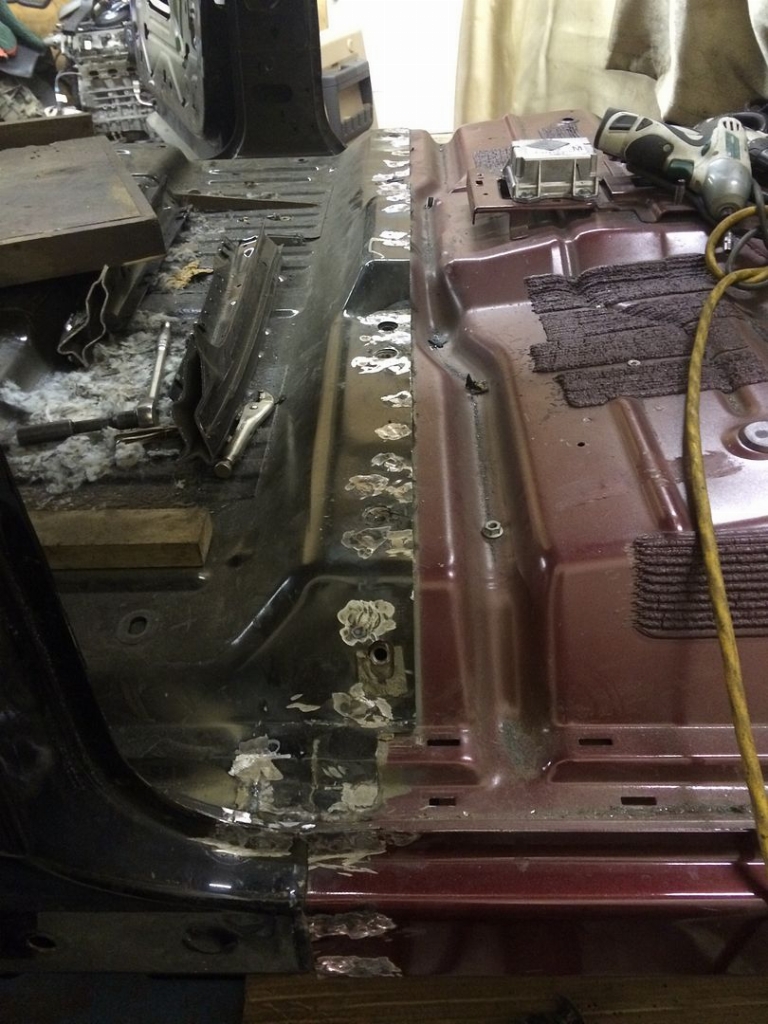

Not much to say today. Welded the floor and inner and out rockers together.



[NorthCentral Customs]

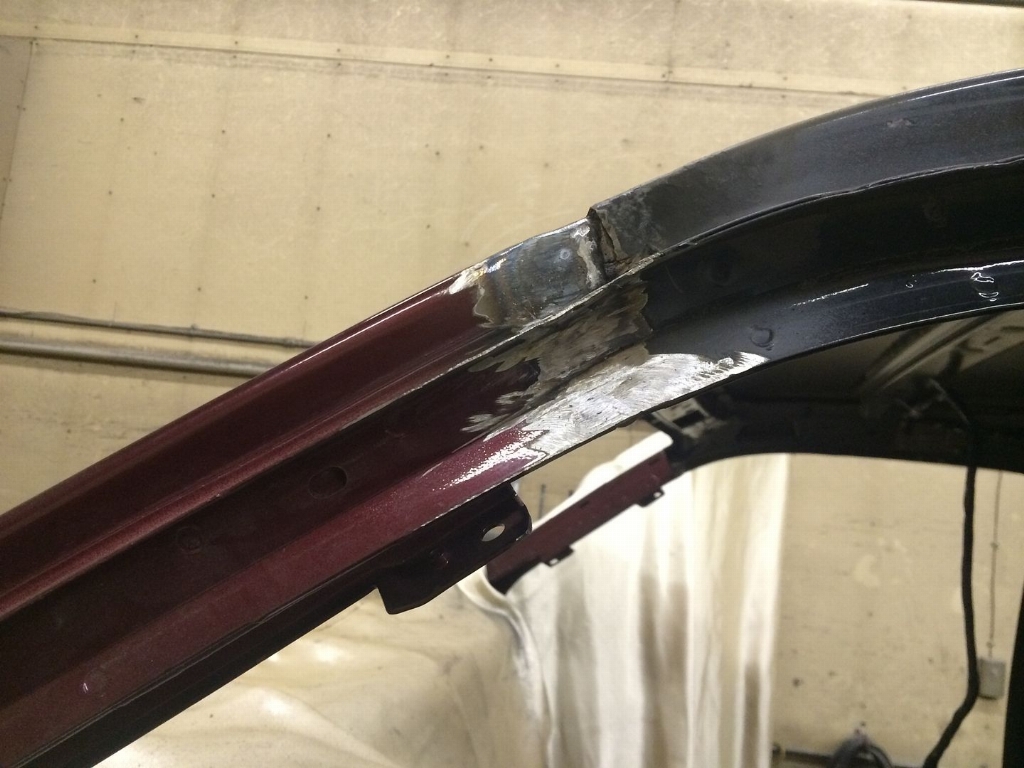

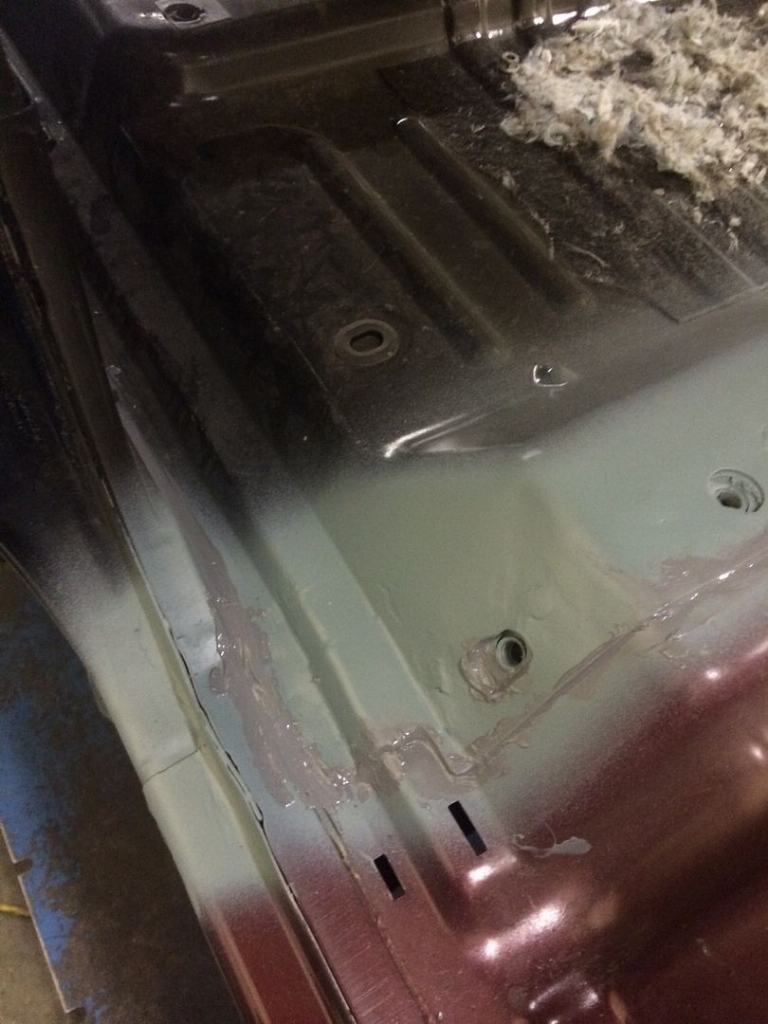

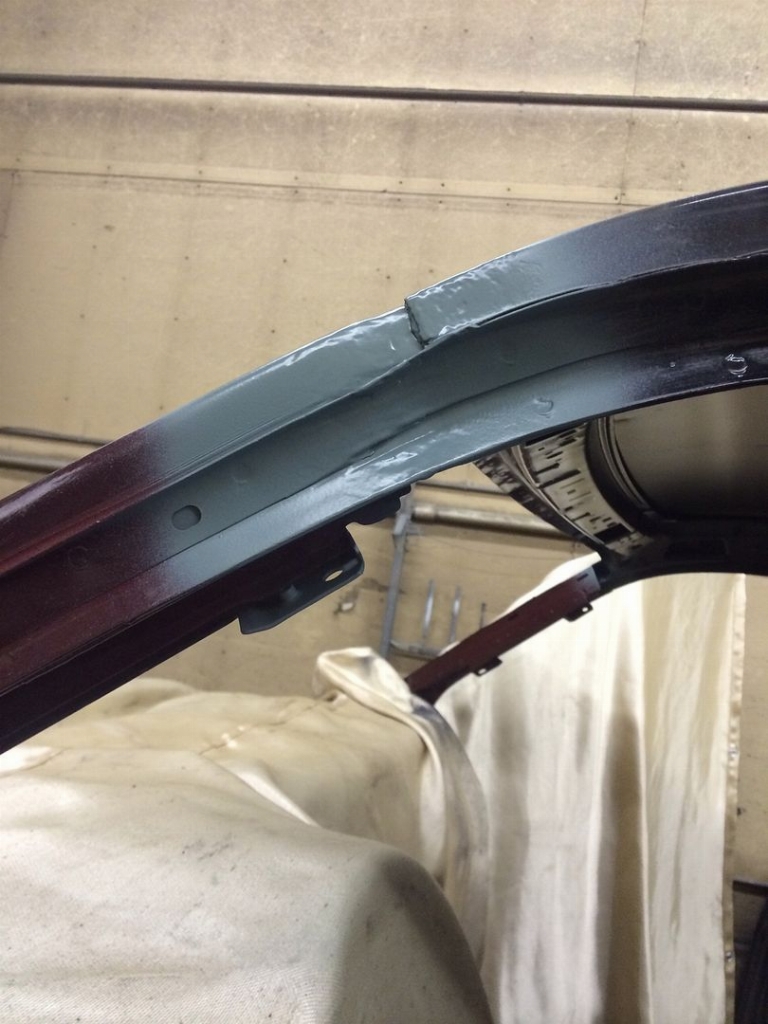

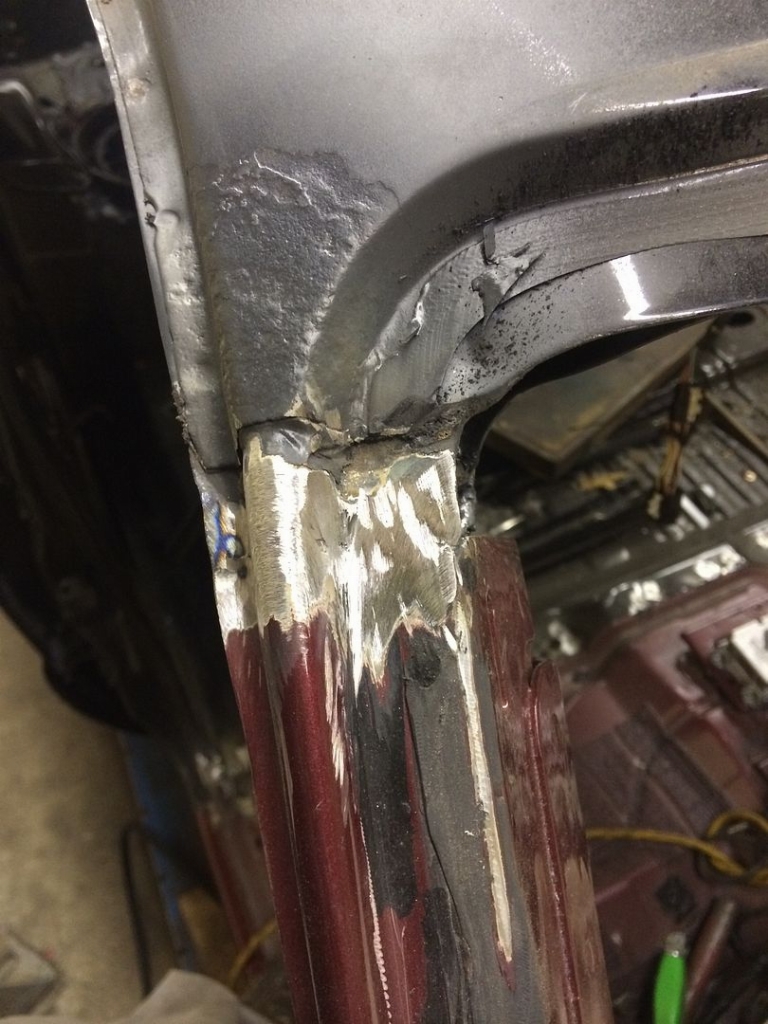

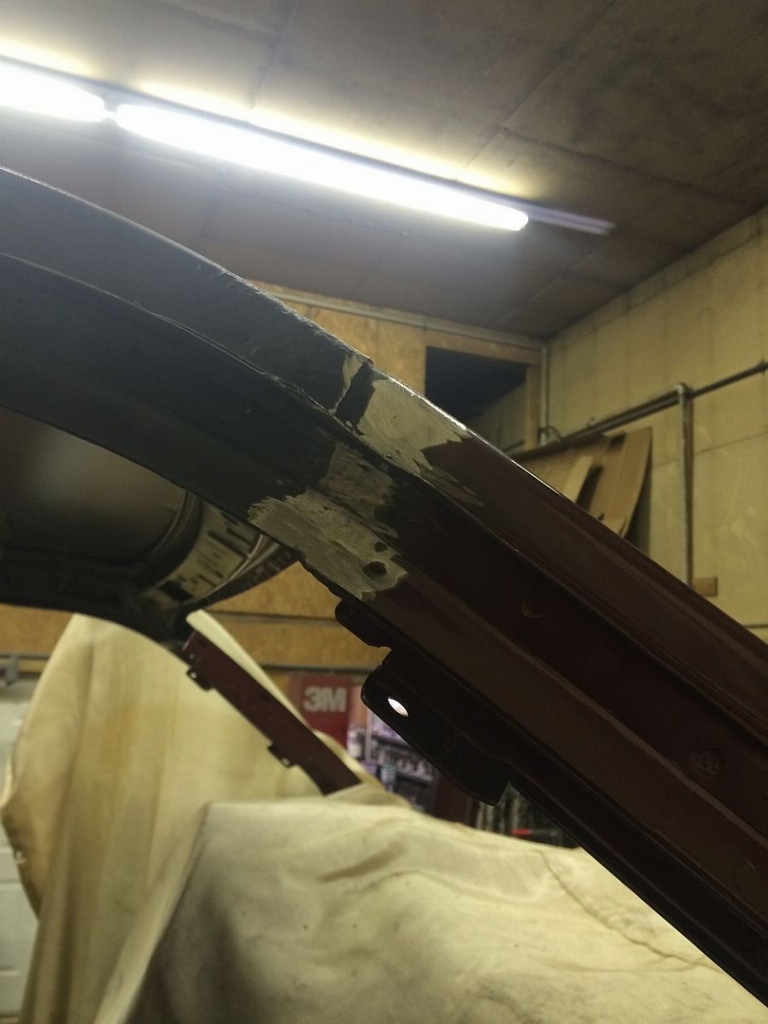

Made a little more room in the shop today, welded up the A pillars and ground down the welds. Tomorrow prime welds and caulk joints.



[NorthCentral Customs]

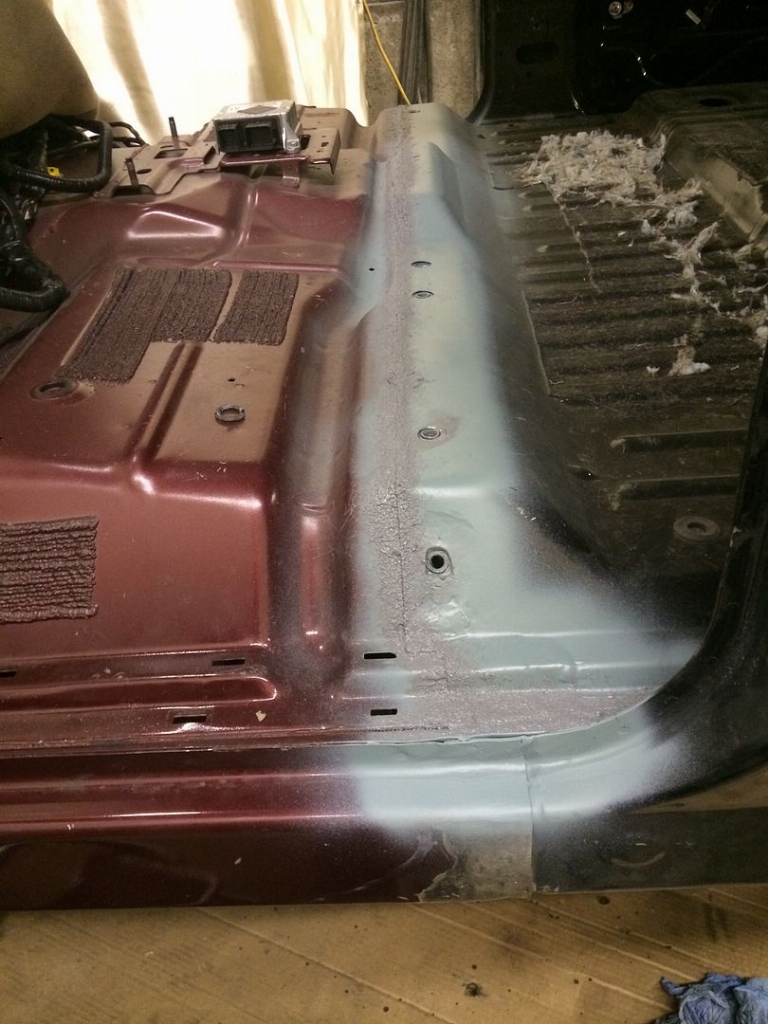

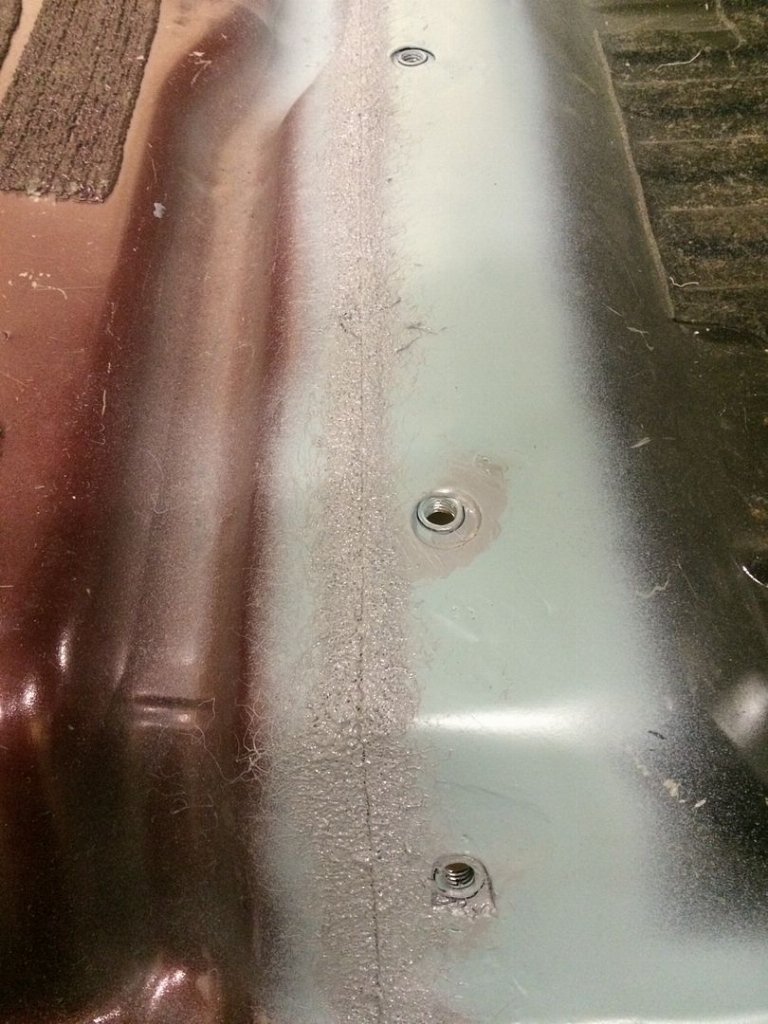

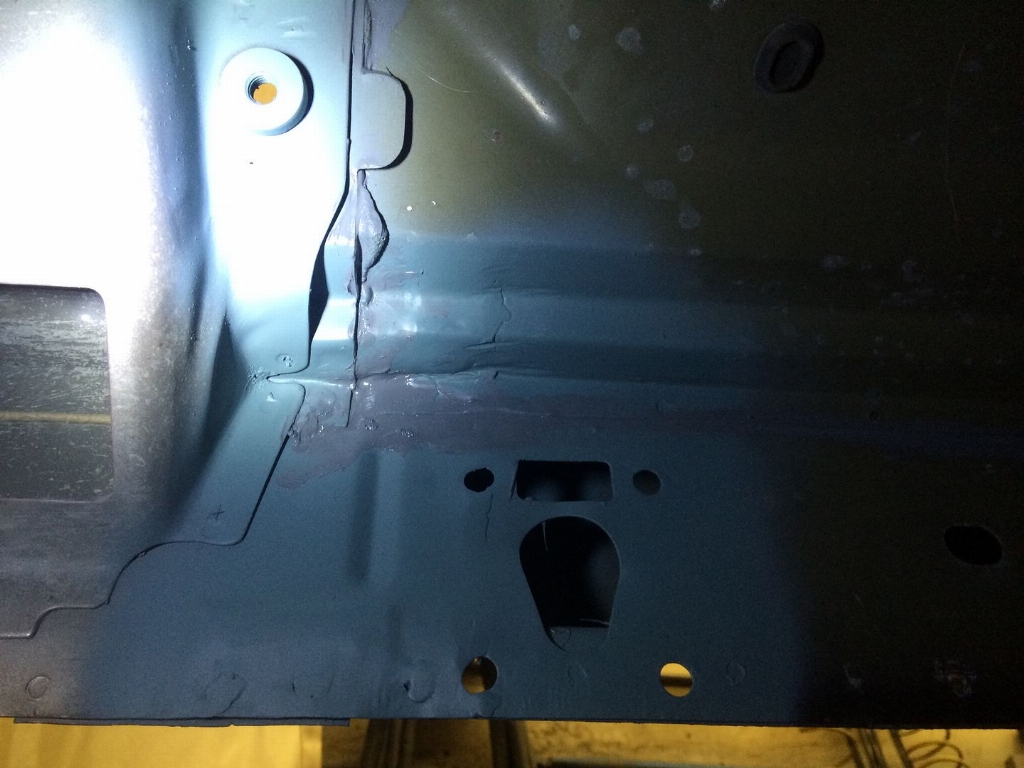

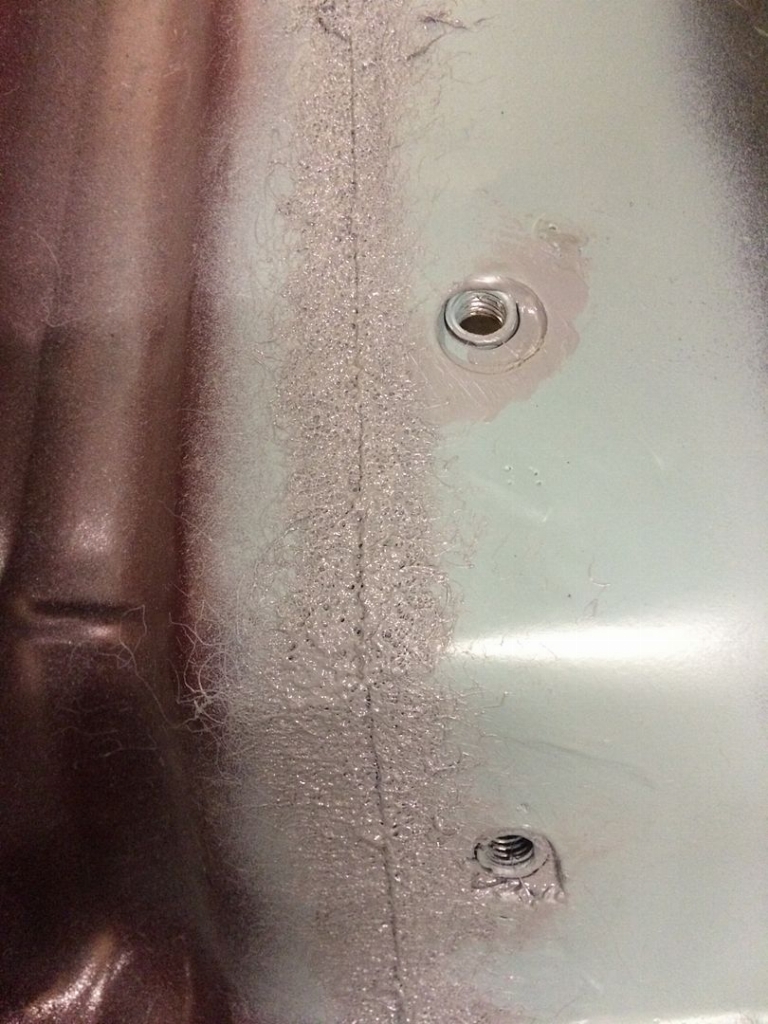

Got everything epoxy painted. Next week to work on welding the frames together.



[NorthCentral Customs]

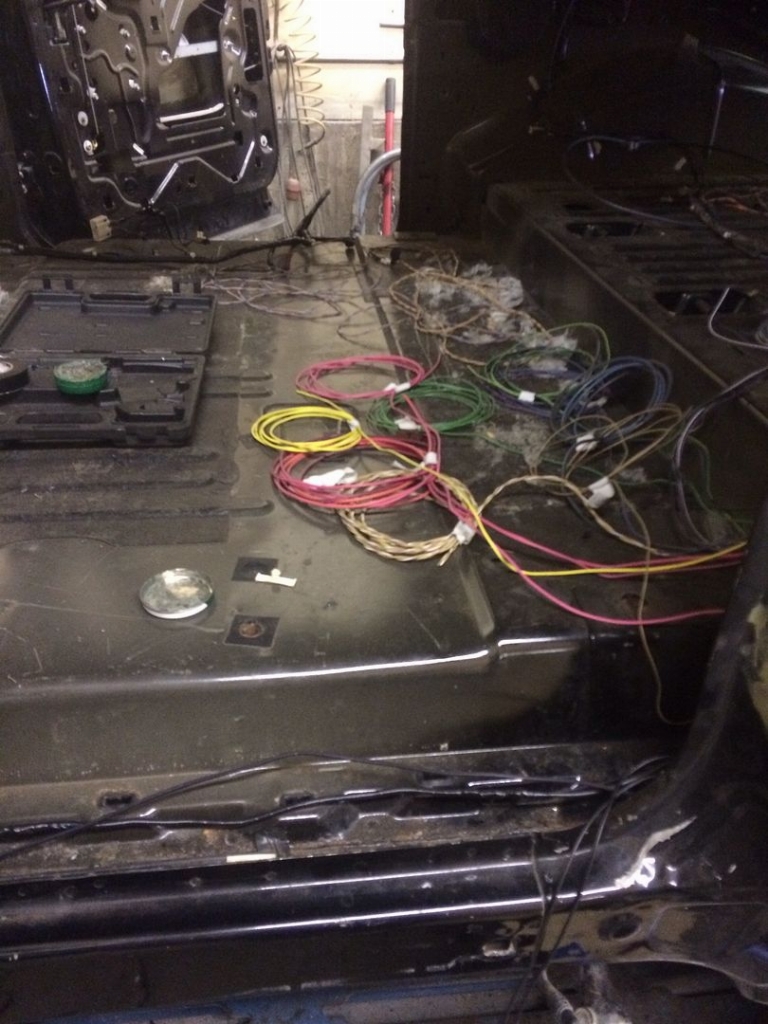

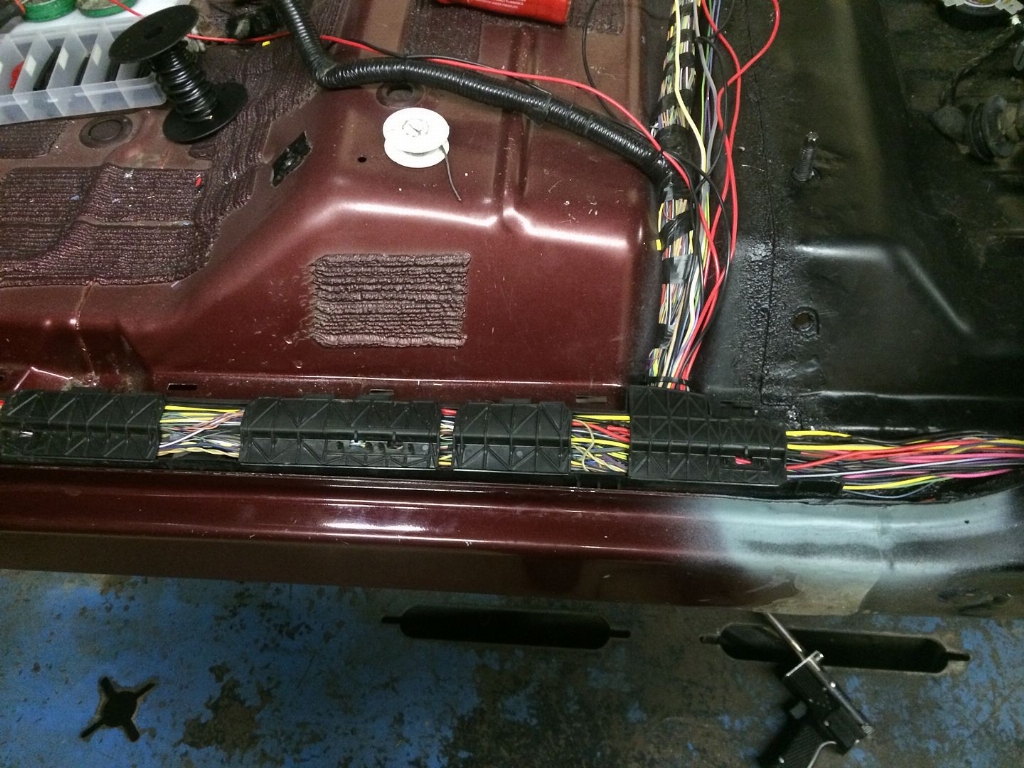

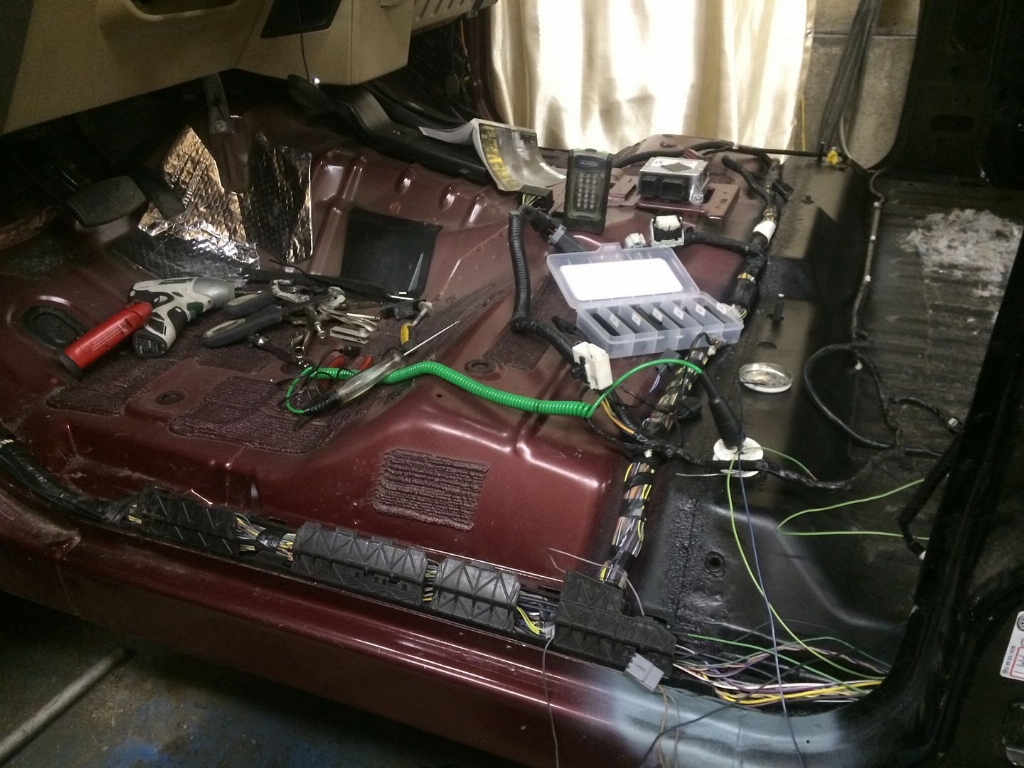

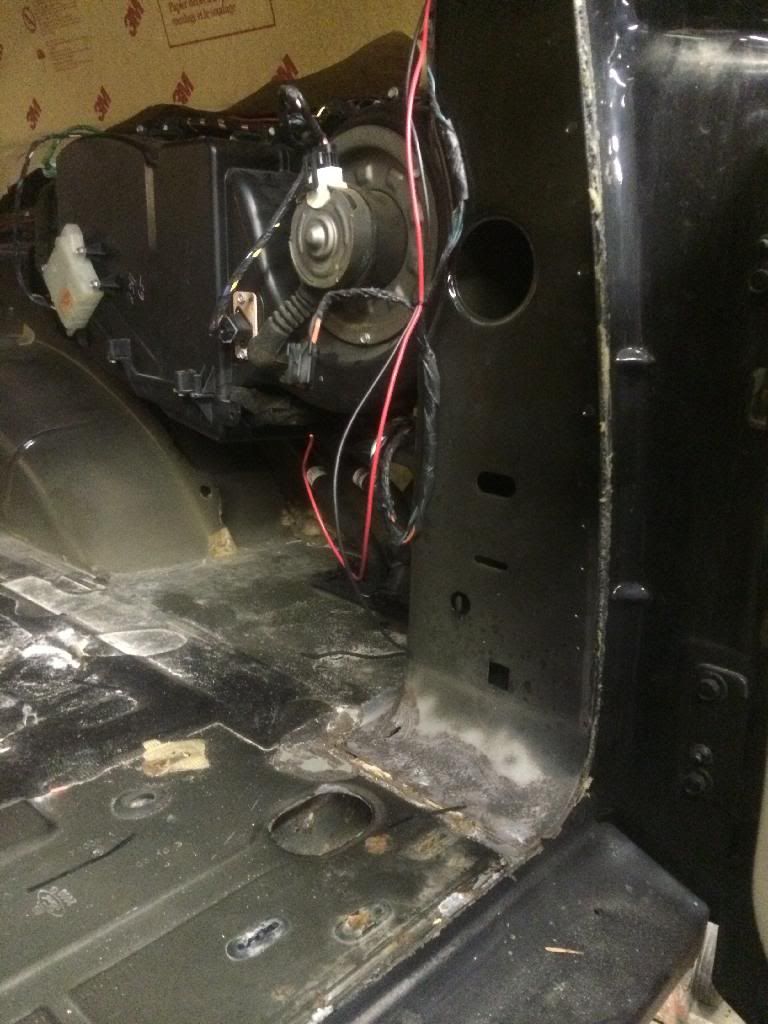

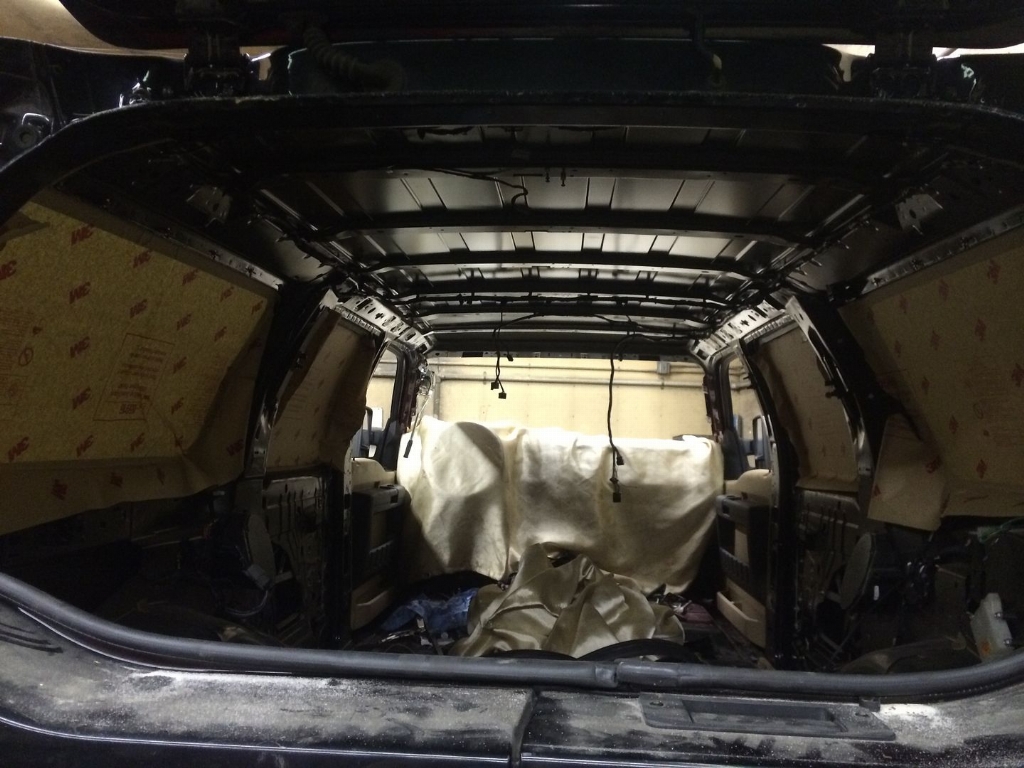

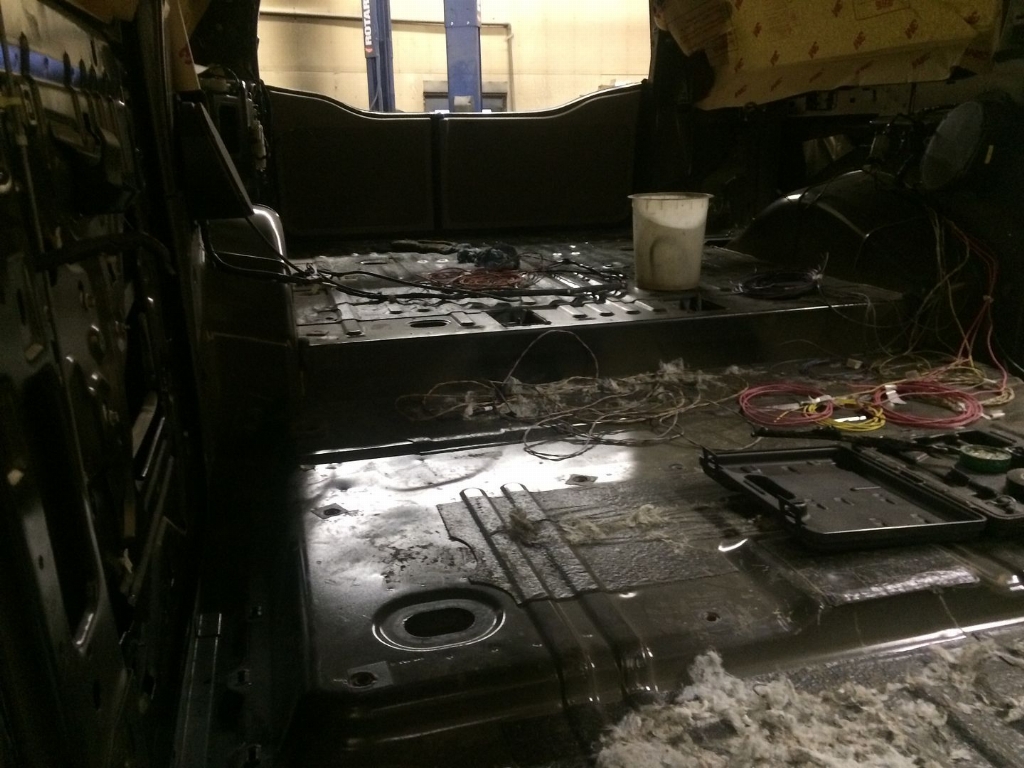

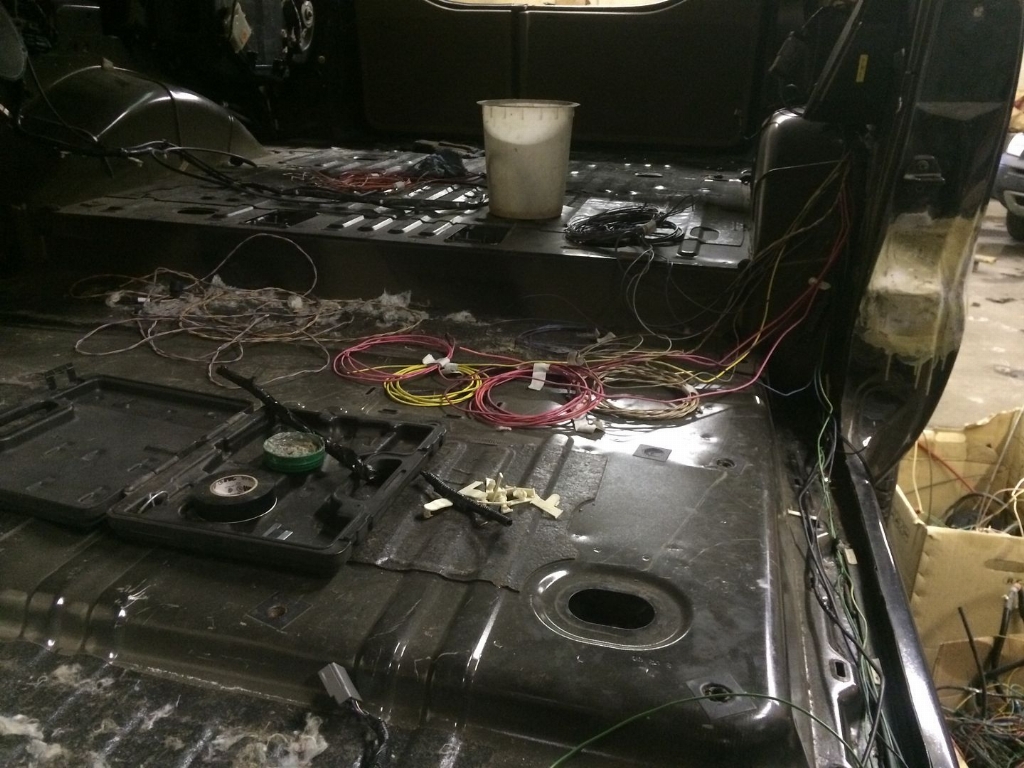

Started wiring the inside. Got the taillights, reverse lights, third brake light and a heavy ground ran to the battery.



[NorthCentral Customs]

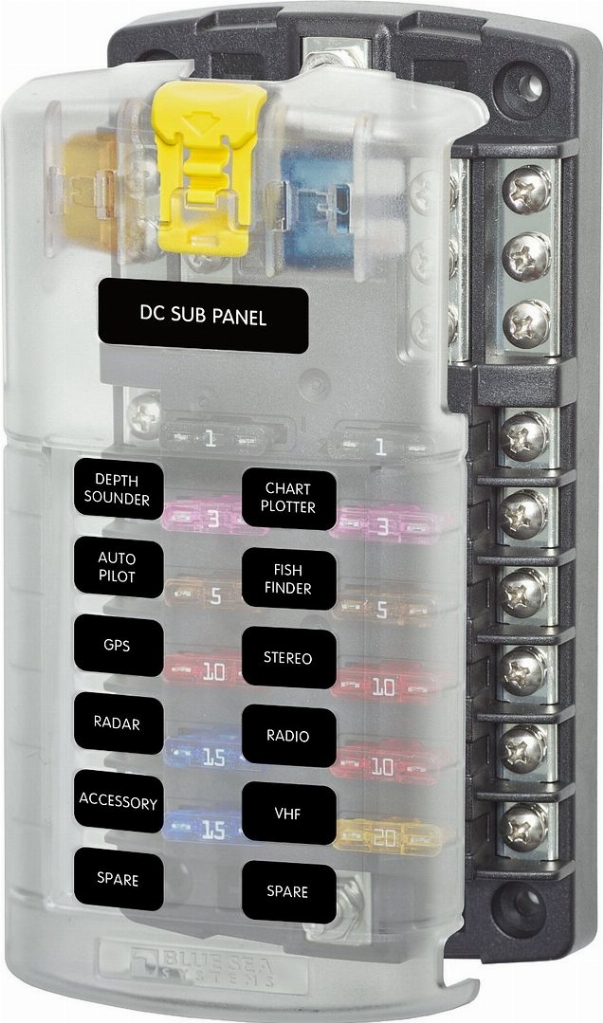

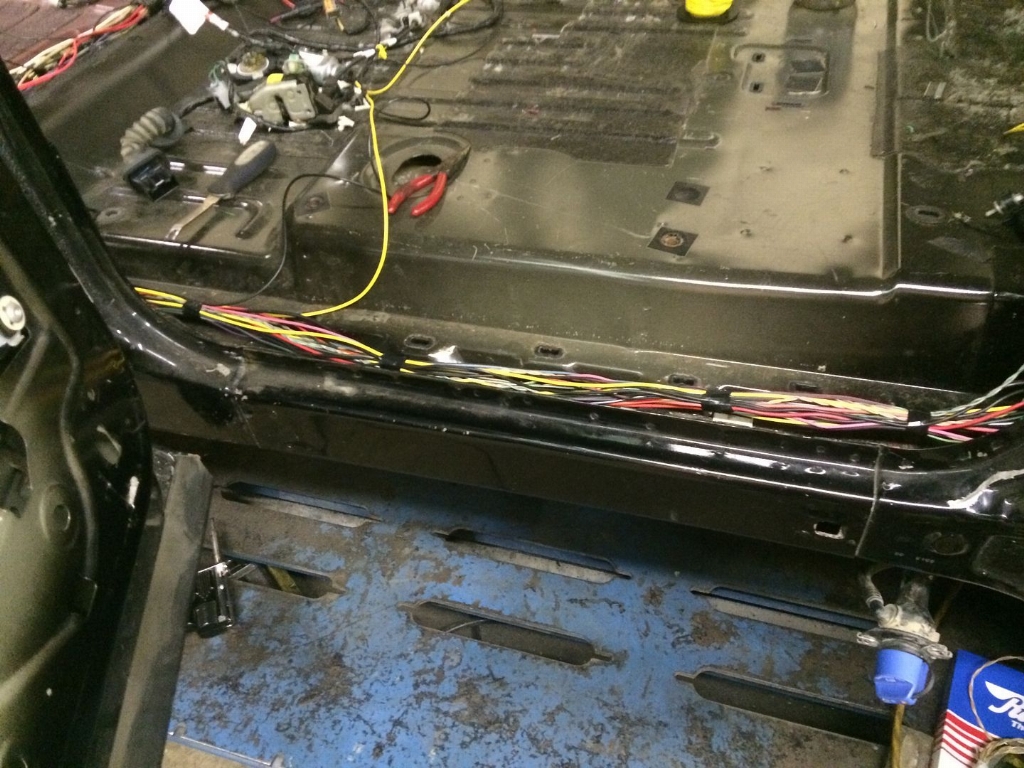

Still working on wiring. Got most of the Ex wiring wired back into the 12. Just have rear wiper, 12v outlet on one side, power for the rear heater/ac fan. Mounted the extra fuse box for those items and all the add accessories. All the DVD players, back up lights, will be coming from the fuse box. It has a hot lead right from the battery 125 amps, and grounding lead to the body and spots to hook up grounds. It's mound underneath the dash right next to where the wiring harness leaves threw the fire wall.



[NorthCentral Customs]

Took my extra fuse box back out so I could split the fuse in half. So I have 6 hot at all times and 6 with hot in the key on position. Had to do this with a relay. I also wired in some more stuff.

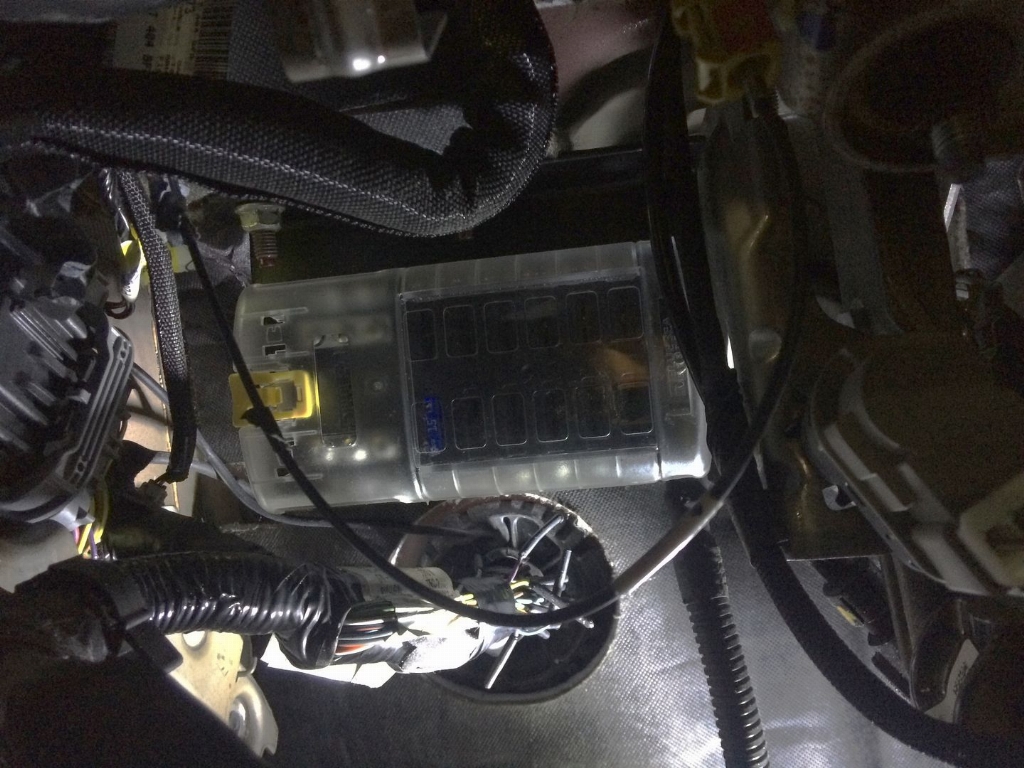

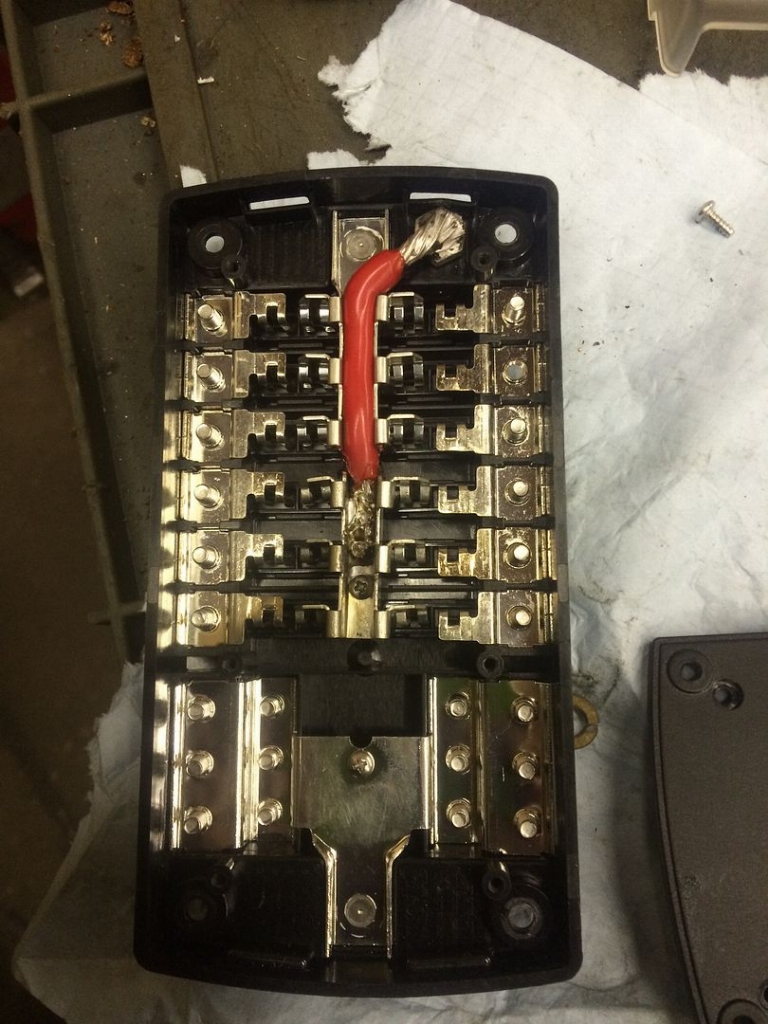

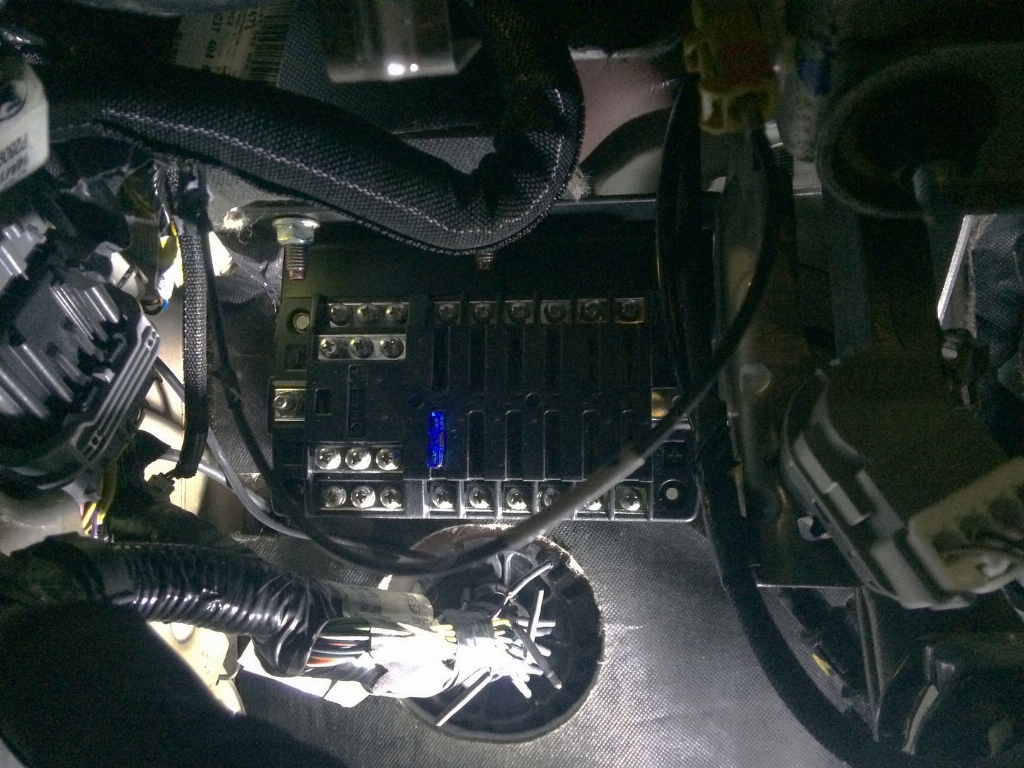

Back of fuse panel opened up.



[loboost]

I wish I could afford to have a perfectly good truck cut it half Lol

Looks good so far

sent while driving recklessly



[fordman2121]

Looks great! I'm a little surprised you left the emissions all intact.



[NorthCentral Customs]

Looks great! I'm a little surprised you left the emissions all intact.

It for future emission checks. This way you can put it back to stock with out any problems. Customer still might delete.



[uga33]

Glad you brought this project over here. I was very bummed when FTE did what they did. Looking great!



[weekendwarriorfsw32]

Wow, amazing job so far.



[NorthCentral Customs]

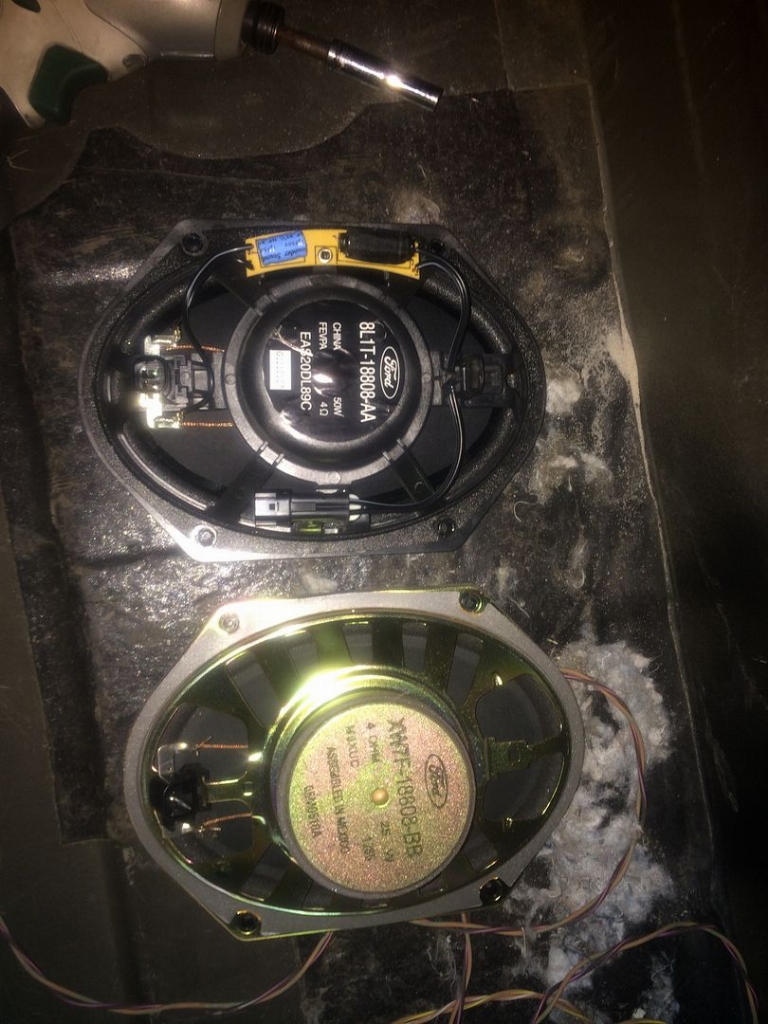

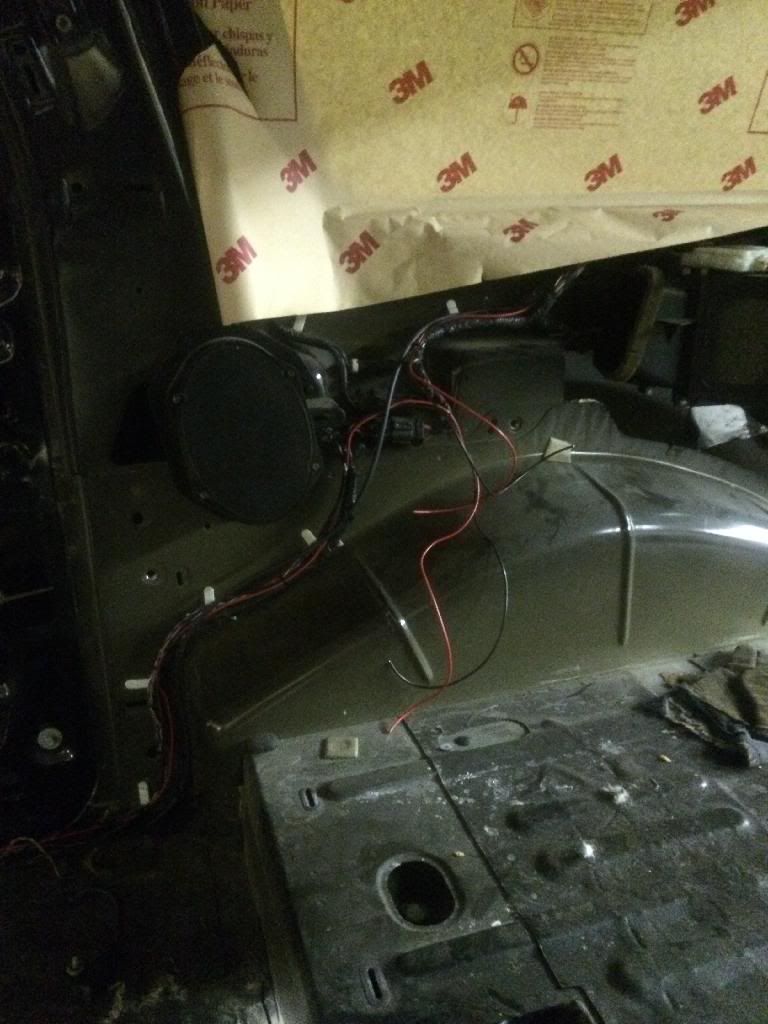

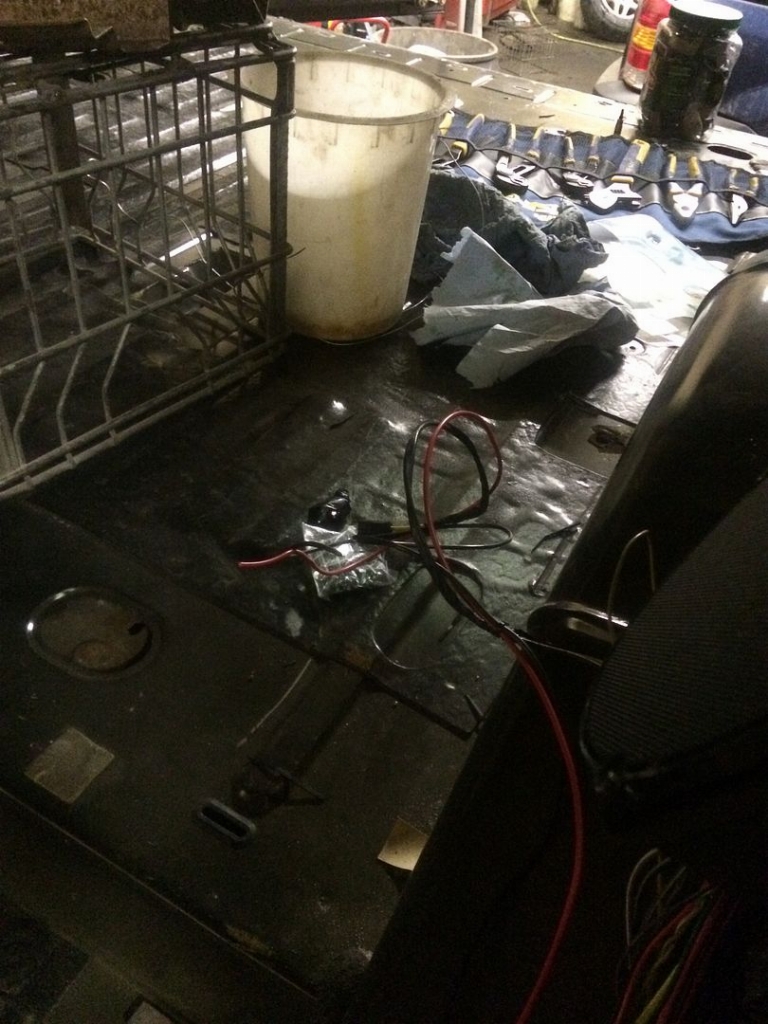

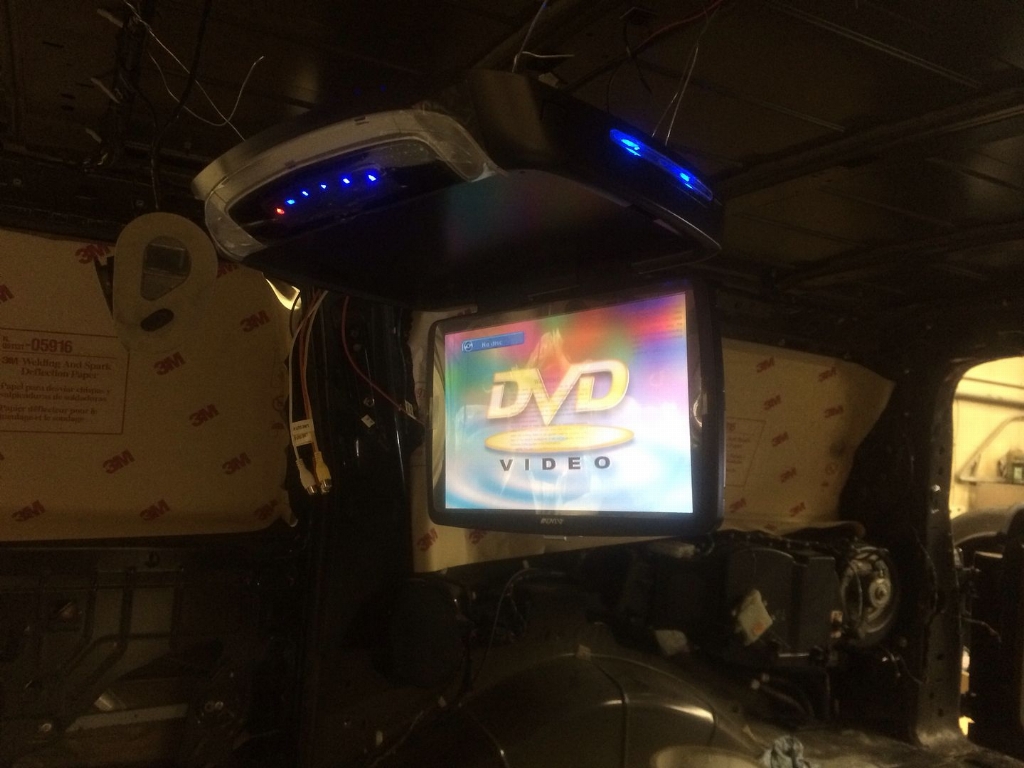

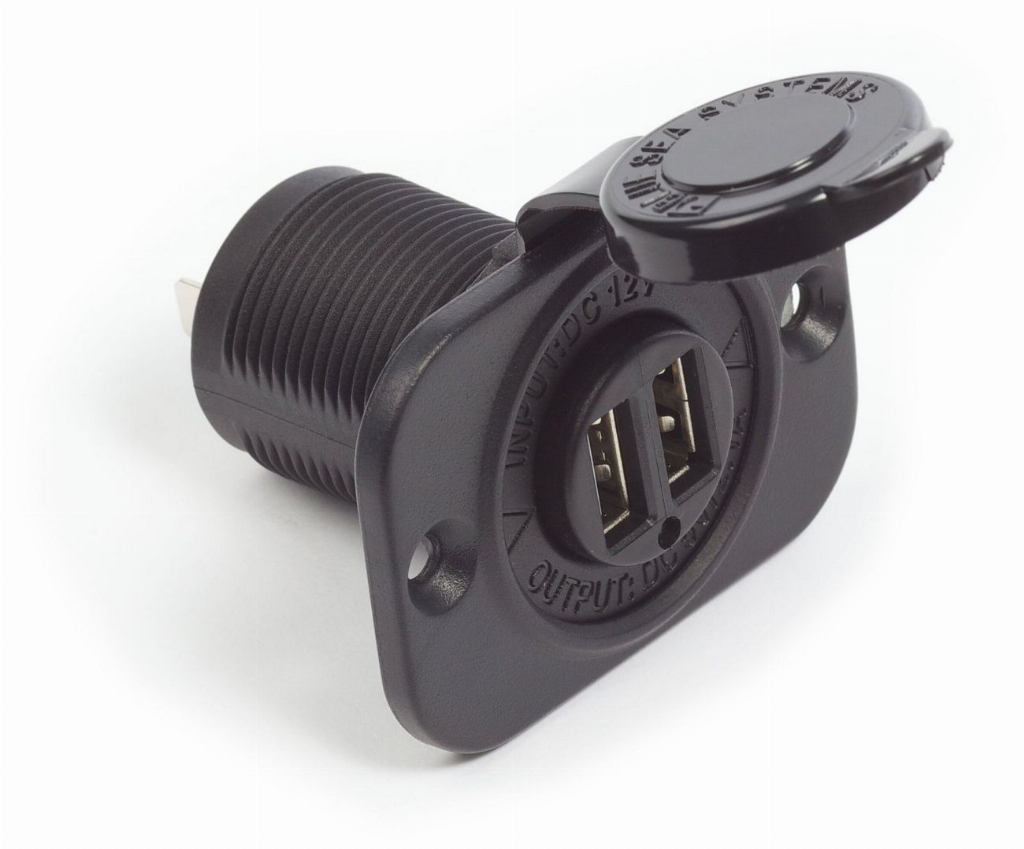

Still working on interior wiring. Today I wired the dvd players, one in the drivers head rest, one the passenger headrest and one roof mounted for the third row. They all have to be able to watch the same movie from the big DVD. Also wired for dual usb charging ports. One for the front seats, one for the second seats, one on each side of the third row seat and one in back by 12v outlet. All wired together on one circuit. Put the speakers in from the 12 and wired them. Tomorrow run all the wiring for the 6 seat heaters for the second and third row.

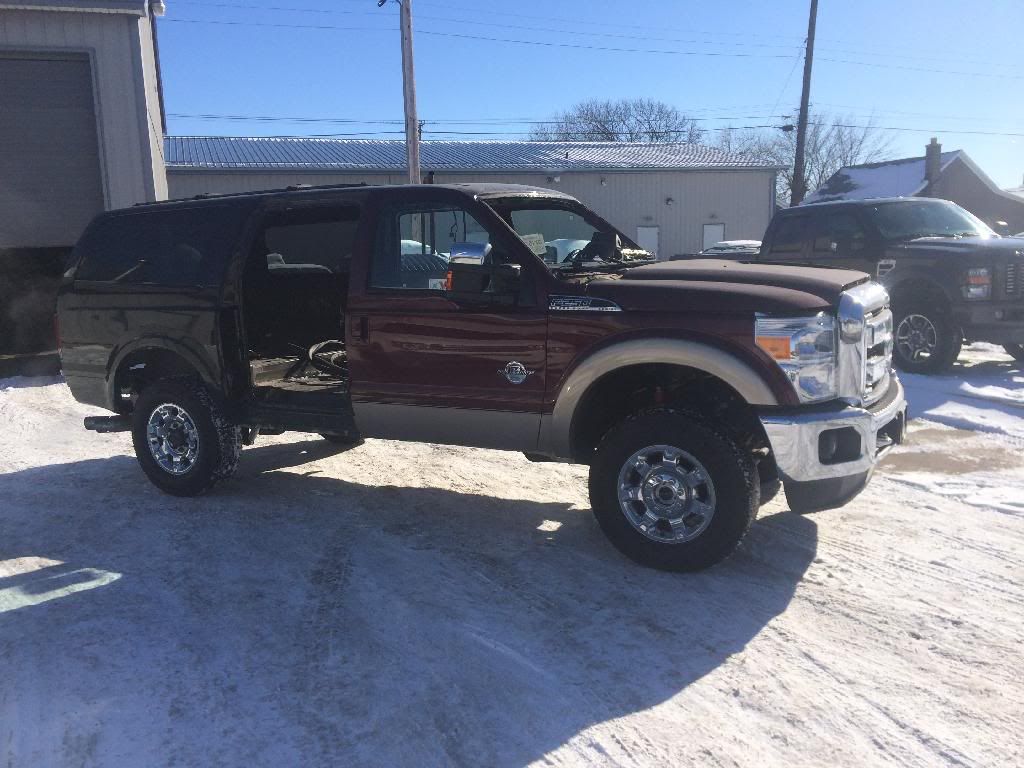

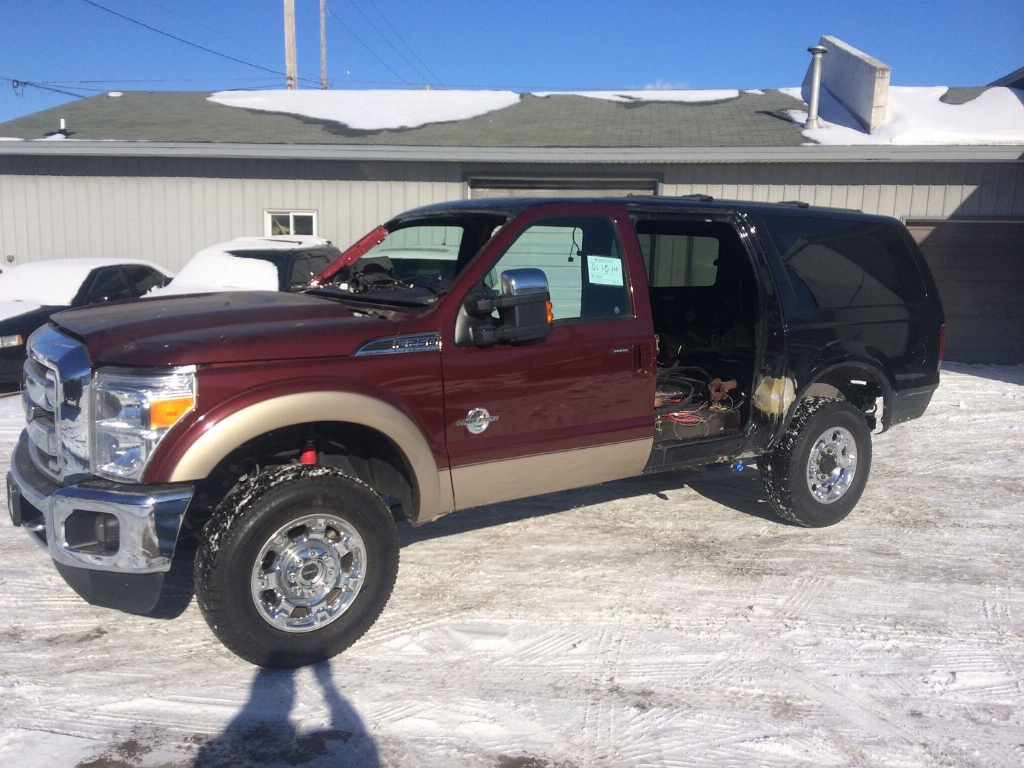

12 on top



[NorthCentral Customs]

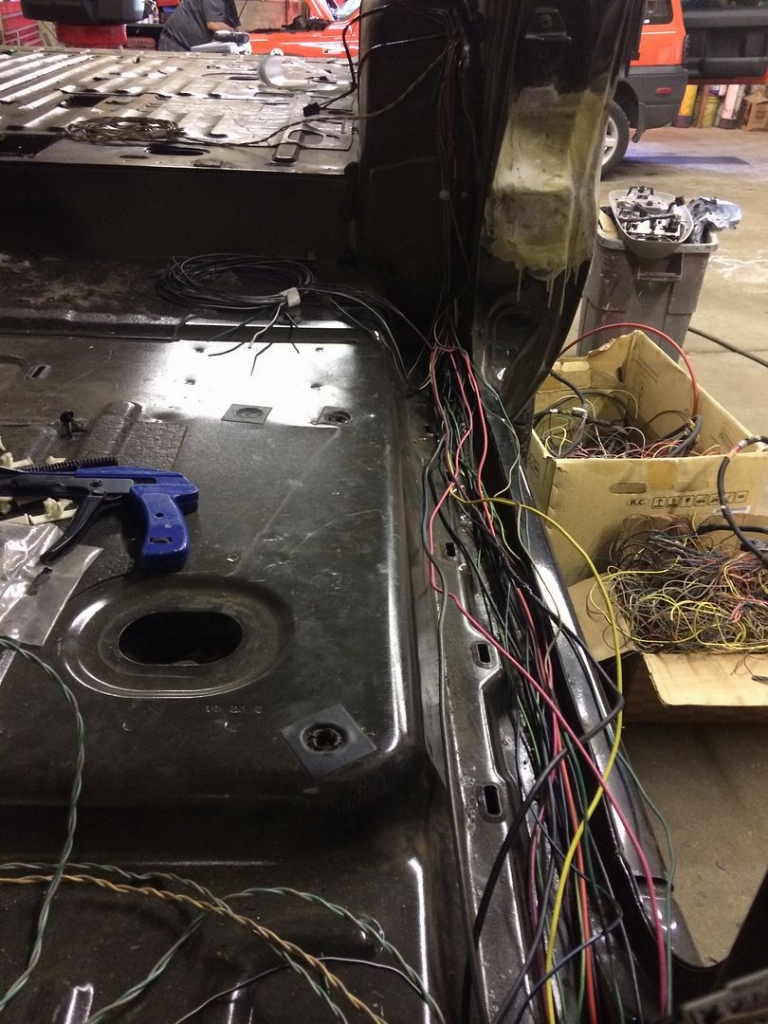

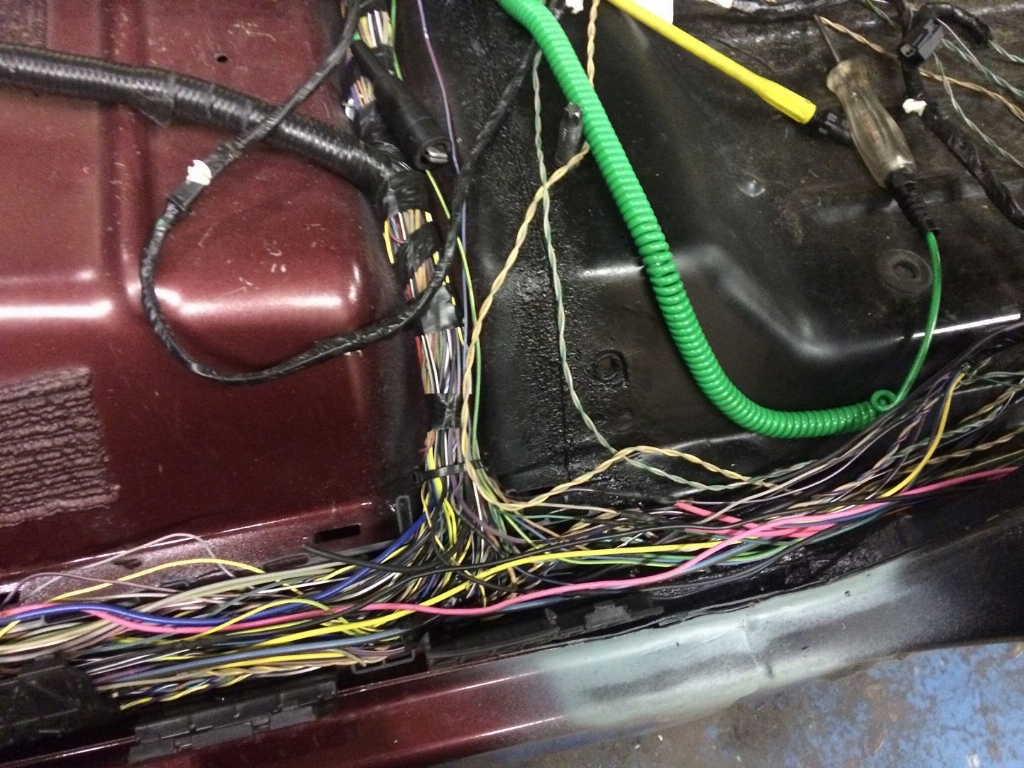

Pretty much all wrapped up with the interior wiring. Wired the heated seats and started cleaning all the wire mess up.
