7.3L MANLEY Rods... for sale!!

Powerstroke Cowboy

Well-known member
Joined
May 20, 2011
Messages
4,383
Reaction score
156
Location
Montana
We are now a dealer for Manley rods. We just got as of yesterday a shipment of 5 sets of 7.3L rods in and have them Ready to ship out when the time comes. :D These are some very nicely put together rods!

PM me for prices. They are going to be lower for the first five sets then after that they will go up!!! Include shipping information with the PM please!

I will Include some pictures of there rods compared to the Factory Forged rods.

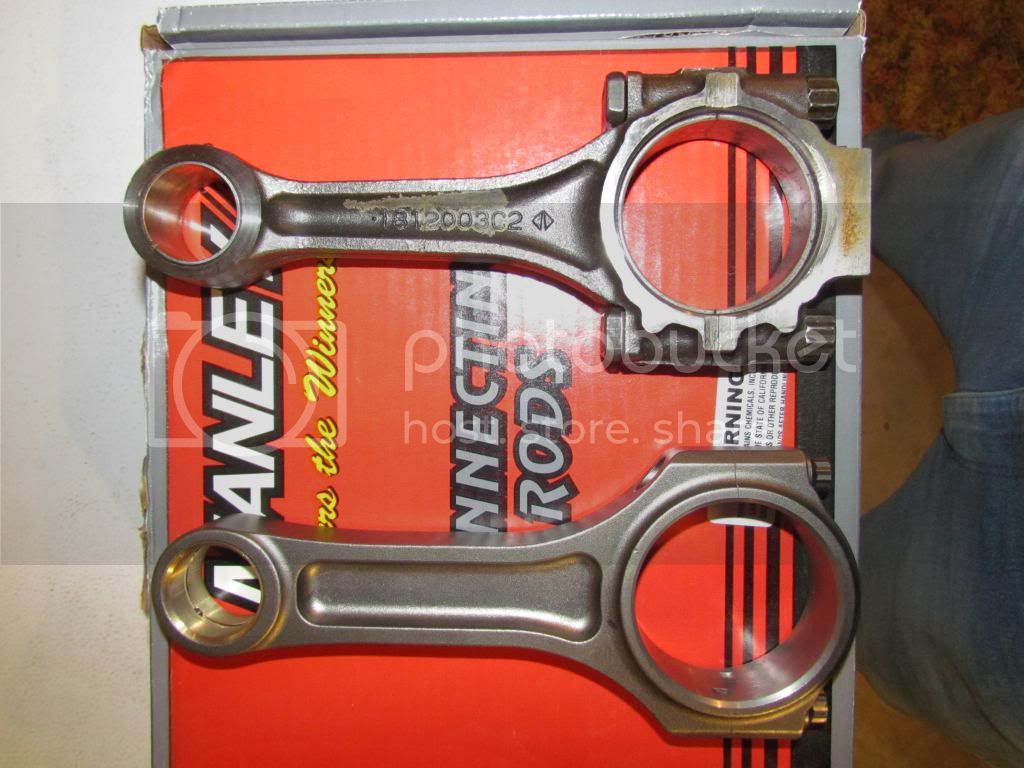

First picture are just to compare them.

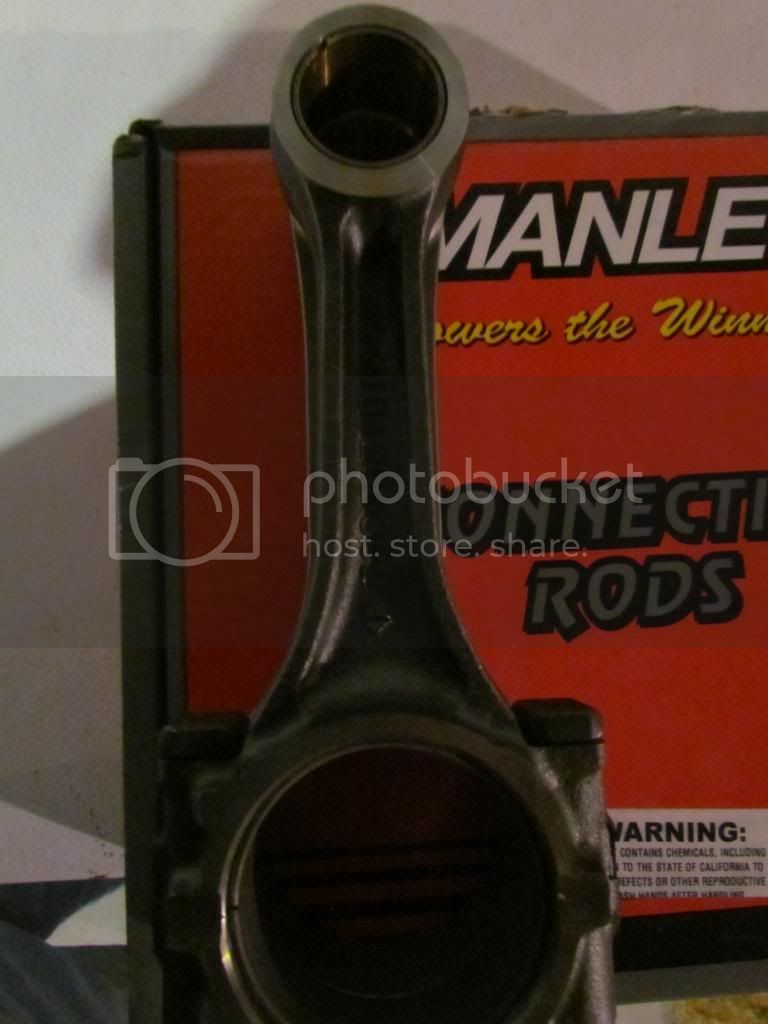

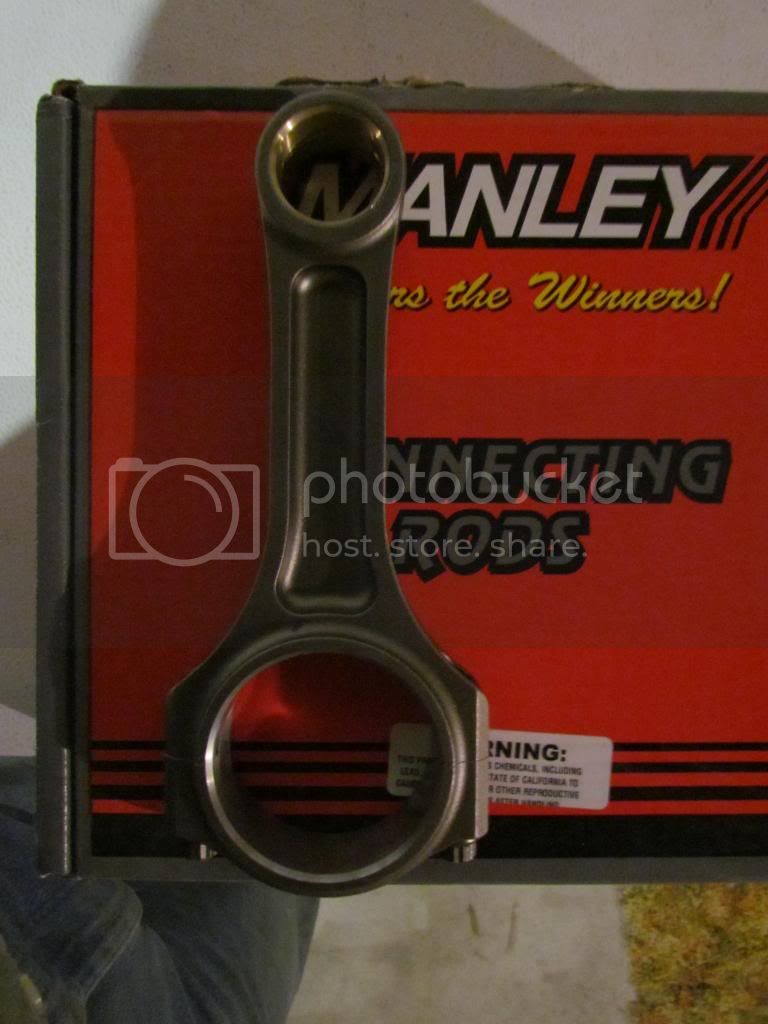

MANLEY rod.

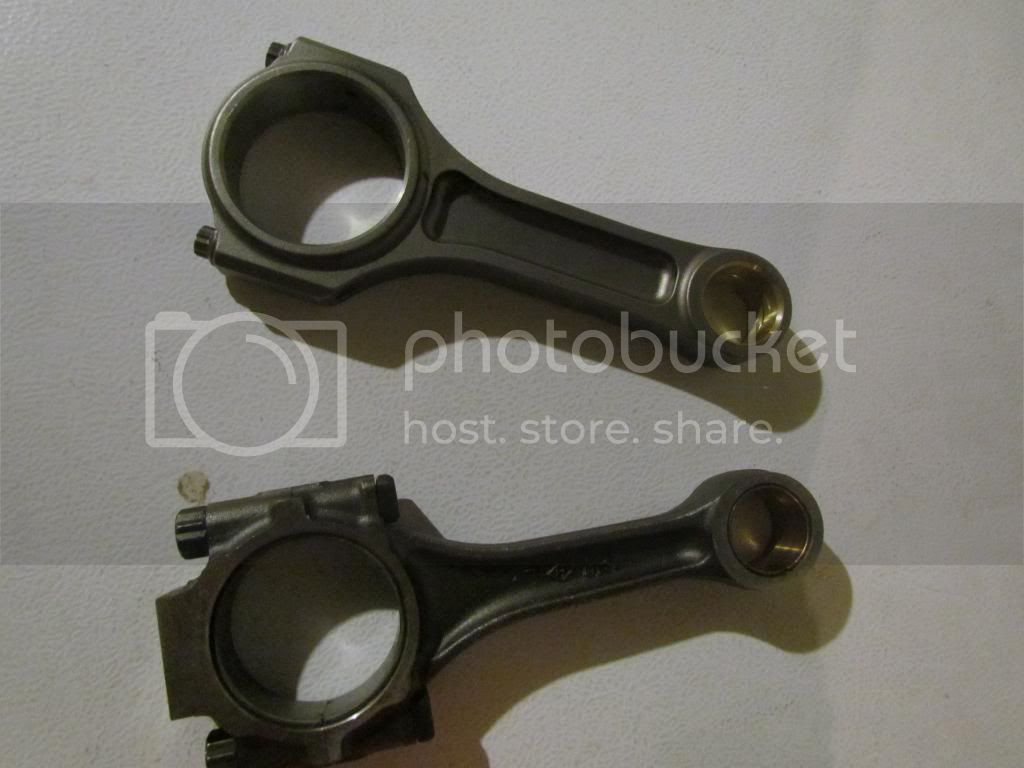

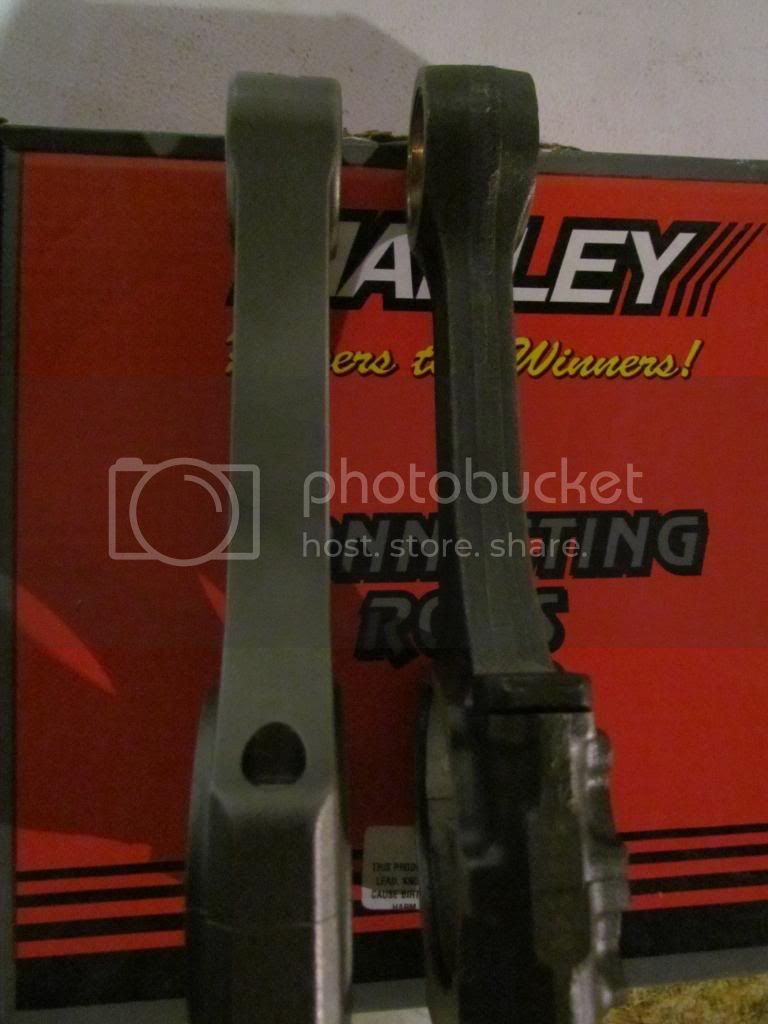

Compared to Factory Forged rods.

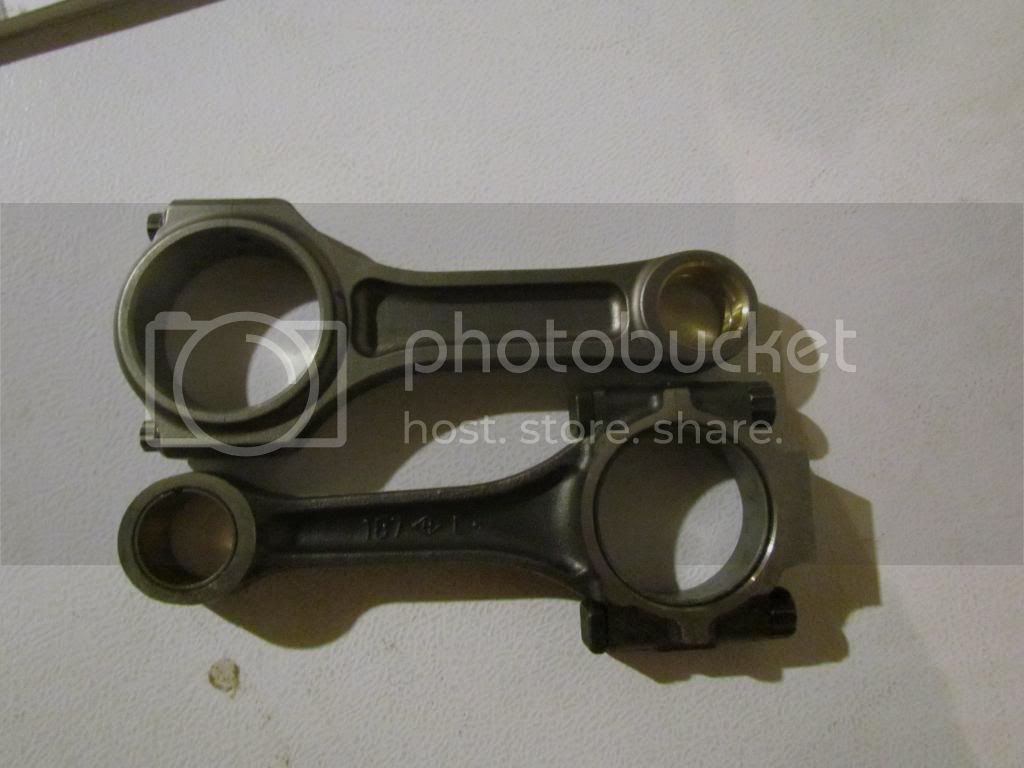

Factory Forged rod laid on TOP of the MANLEY rod.

again

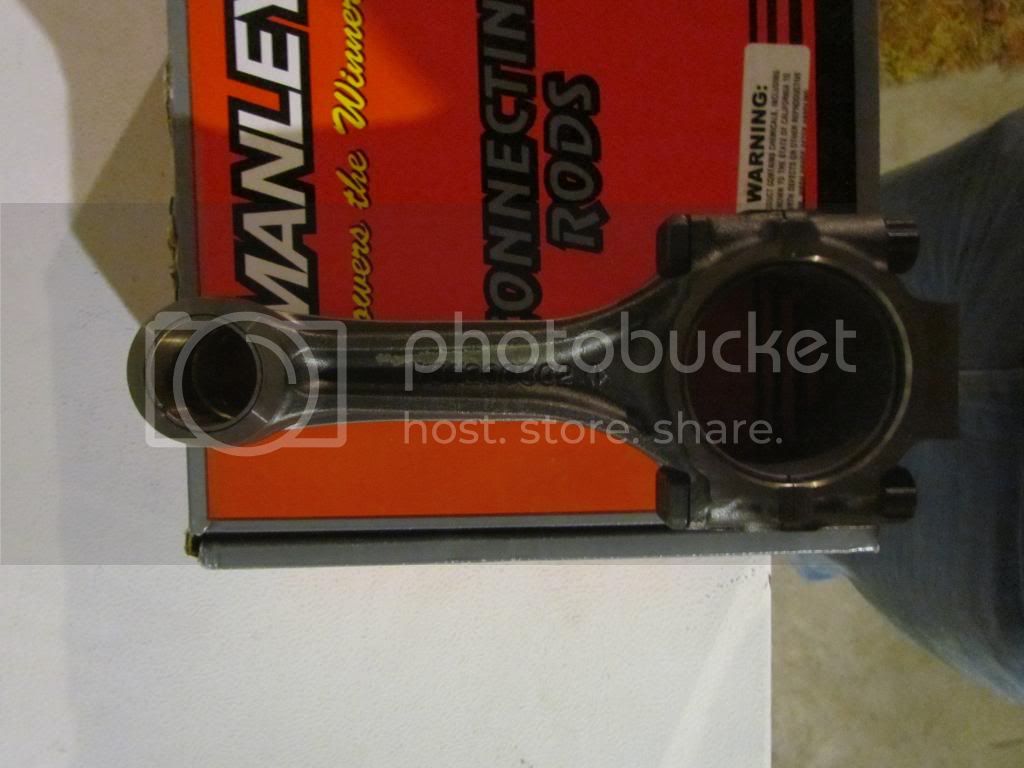

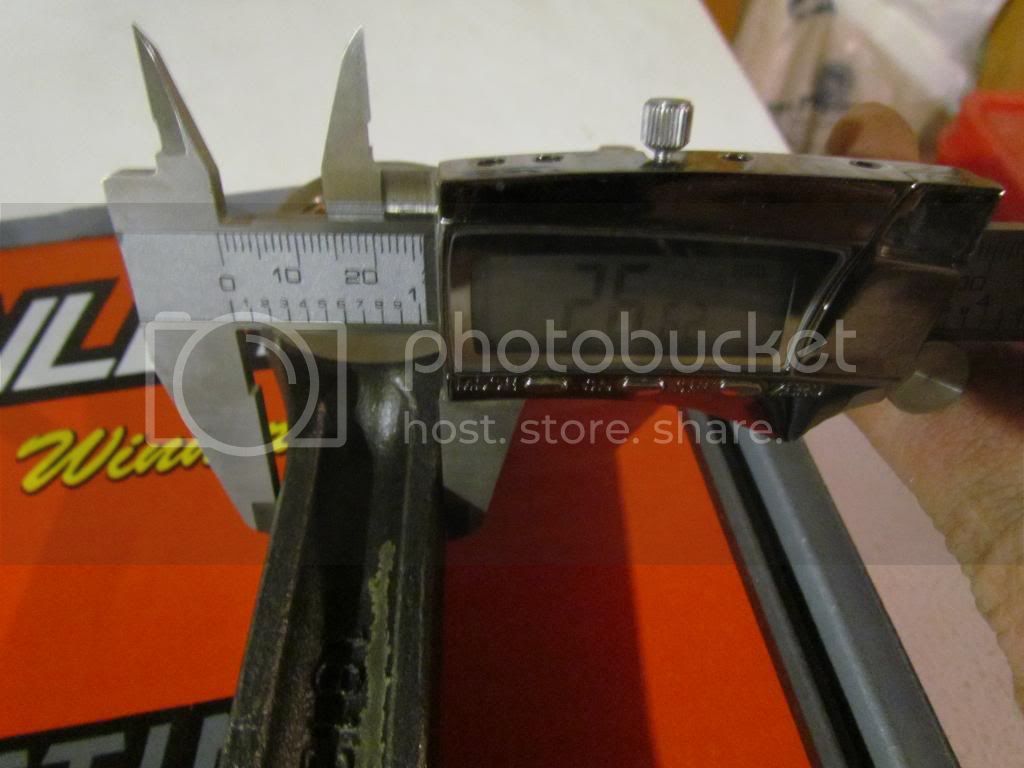

Small part of the neck on the Factory Forged rod.

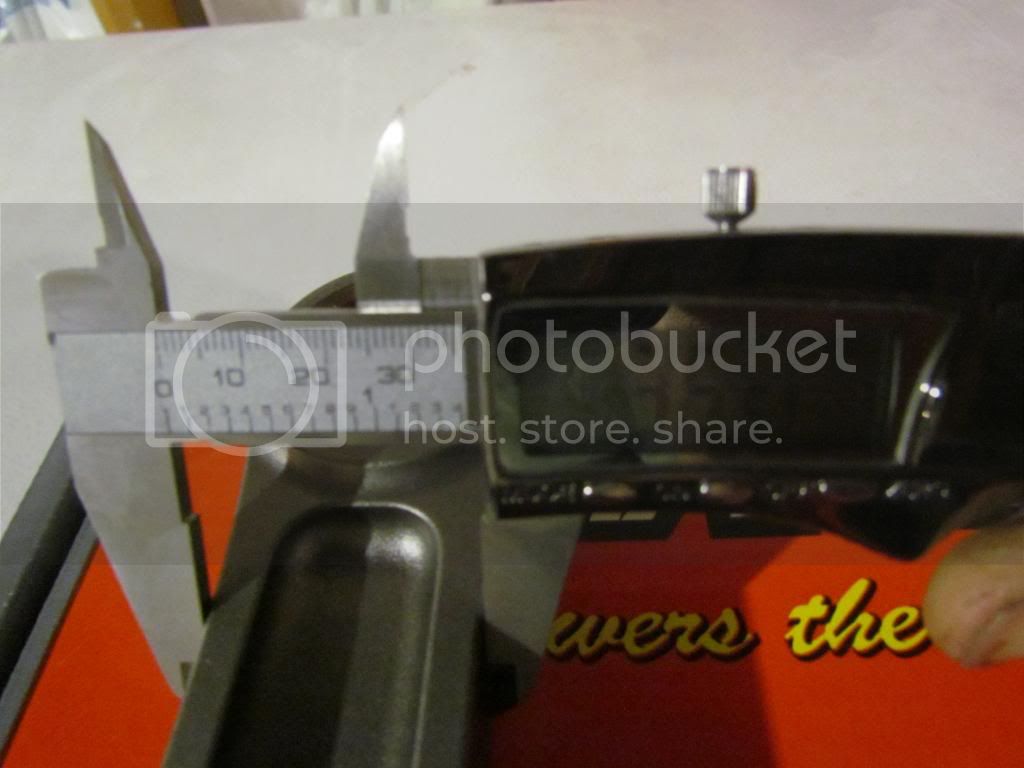

Small part of the neck on the MANLEY rod.

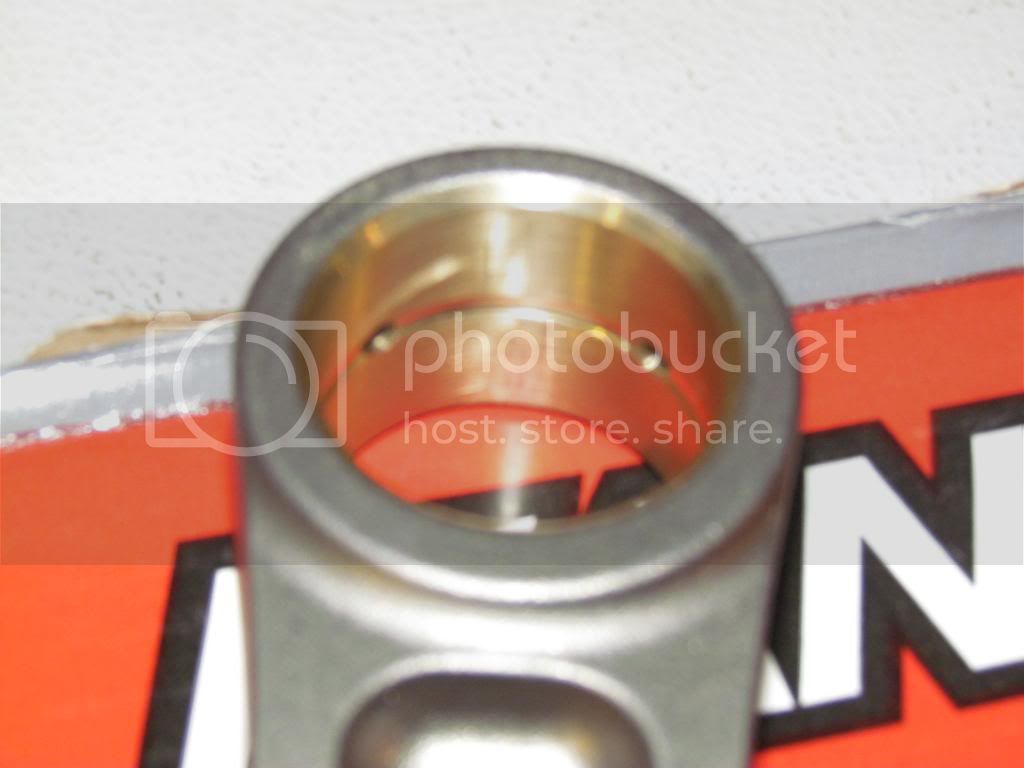

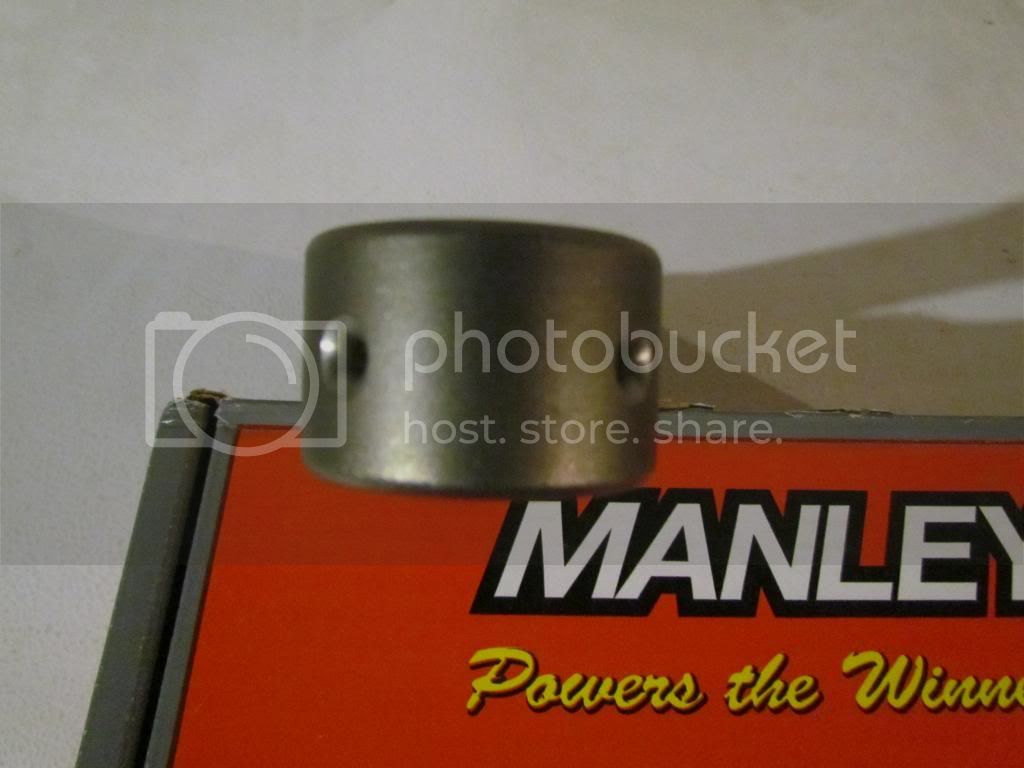

The wrist pin bearing.

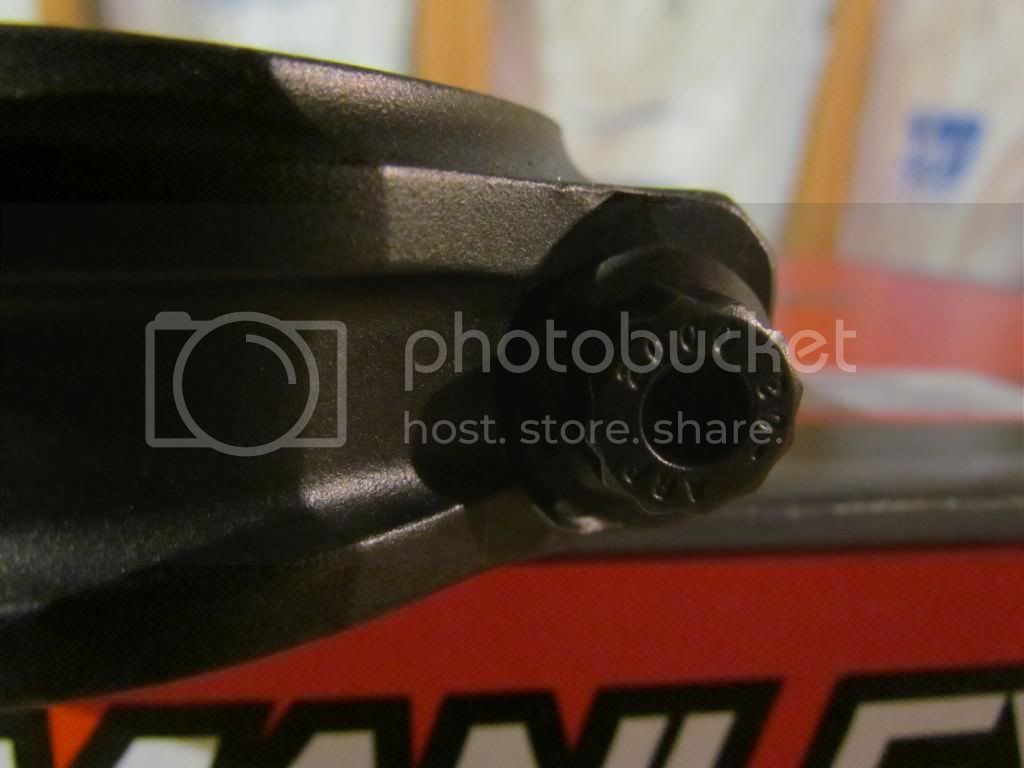

ARP bolts.

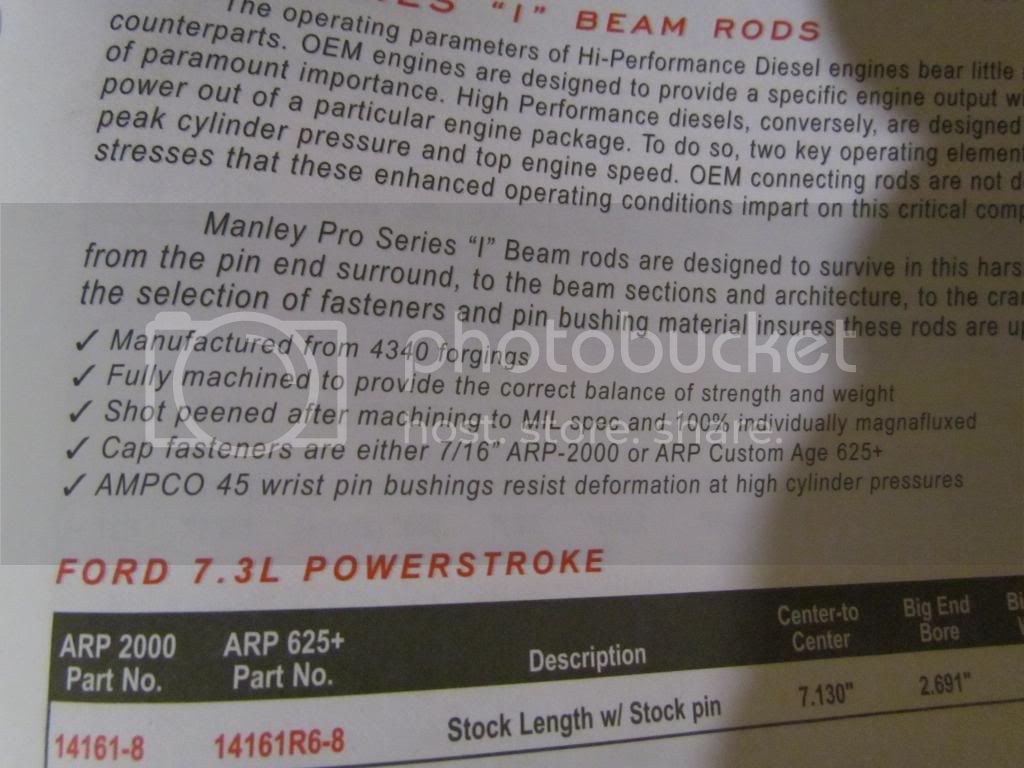

The specs provided by MANLEY




If you have any Questions please feel free to ask!!

Thanks.


907DAVE

Active member
Joined
May 21, 2011
Messages
2,166
Reaction score
0
Location
AK
Those look just like the Crowers except the second oiling hole for the wrist pin. Very nice!


2000wa250

Active member
Joined
Oct 15, 2011
Messages
1,048
Reaction score
0
So these are billet? Very interested depending on price. Pm incoming.

Sent from my DROID BIONIC using Tapatalk 2


Powerstroke Cowboy

Well-known member
Joined
May 20, 2011
Messages
4,383
Reaction score
156
Location
Montana
So these are billet? Very interested depending on price. Pm incoming.

Sent from my DROID BIONIC using Tapatalk 2

They are made from 4340 forgings then machined to specs. That is all the information I have. I will have to ask the owner of Manley. I will get back to you on this.

Thanks!


Powerstroke Cowboy

Well-known member
Joined
May 20, 2011
Messages
4,383
Reaction score
156
Location
Montana
Weights for those interested:

1422.3 grams total

914.2 grams big end

508.1 grams pin end



Thanks Jason! You saved me the time. Still might still do it just for the fun of it.


I take it you bought a set? If so What do you think?


Trip Manley
Well, technically, they are a "fully machined forging".....so they "look" like a billet....but have the advantages of a forging (grain flow, strength)

This was strait from Trip Manley.


Hotrodtractor

Moderator
Joined
May 18, 2011
Messages
4,934
Reaction score
14
Location
Mingo, Ohio
Thanks Jason! You saved me the time. Still might still do it just for the fun of it.

I take it you bought a set? If so What do you think?

No I have not bought a set. I have not seen a set in person either. That is data straight from Trip from the initial offering when they released them.


2000wa250

Active member
Joined
Oct 15, 2011
Messages
1,048
Reaction score
0
So these have the benefits of billet and forged? So in other words, best of both worlds strength wise?

Sent from my DROID BIONIC using Tapatalk 2


Powerstroke Cowboy

Well-known member
Joined
May 20, 2011
Messages
4,383
Reaction score
156
Location
Montana
No I have not bought a set. I have not seen a set in person either. That is data straight from Trip from the initial offering when they released them.

Ok got you. I had that Email to. Just forgot about it.

So these have the benefits of billet and forged? So in other words, best of both worlds strength wise?

That would be what trip said. You are correct.

Sent from my DROID BIONIC using Tapatalk 2

Pm me a price shipped to 82070. Both with the first 5 discount and after that discount is up. Thank ya.

PM sent

Thanks!


Petro

Well-known member
Joined
May 22, 2011
Messages
1,209
Reaction score
34
Location
Lincoln Nebraska
Shoot me a price just for Sh!ts And Giggles. Dont know if I will ever make any real power with a 7.3 but its possible.
