6.4 carnage pics

webb06 · Apr 26, 2016

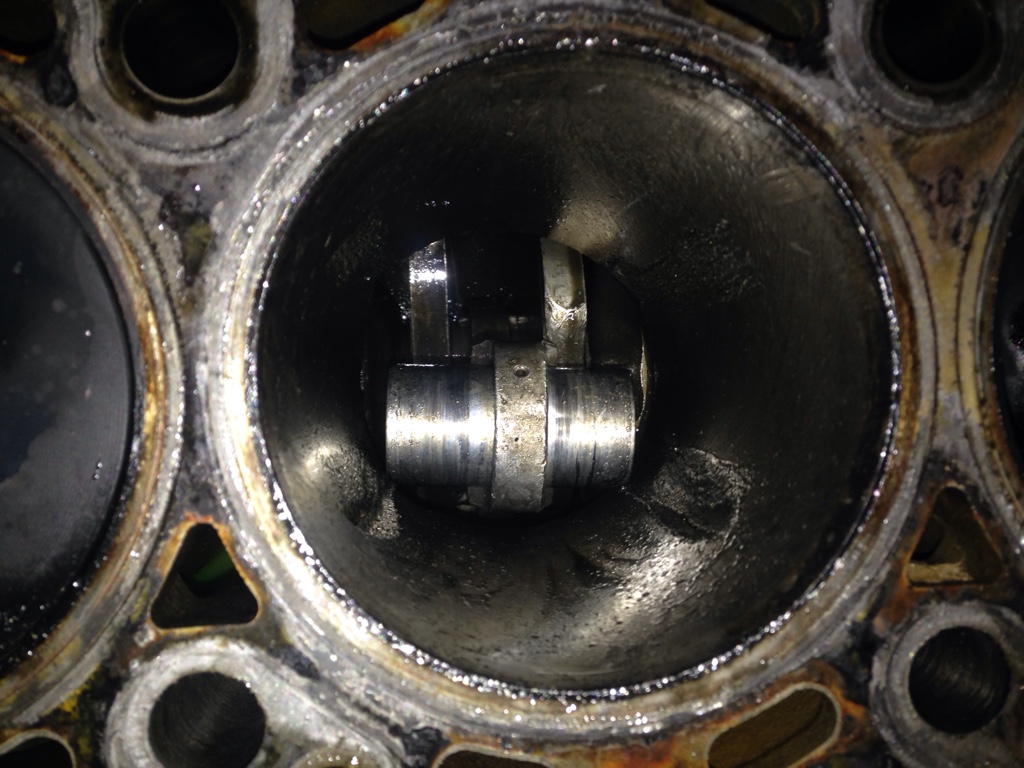

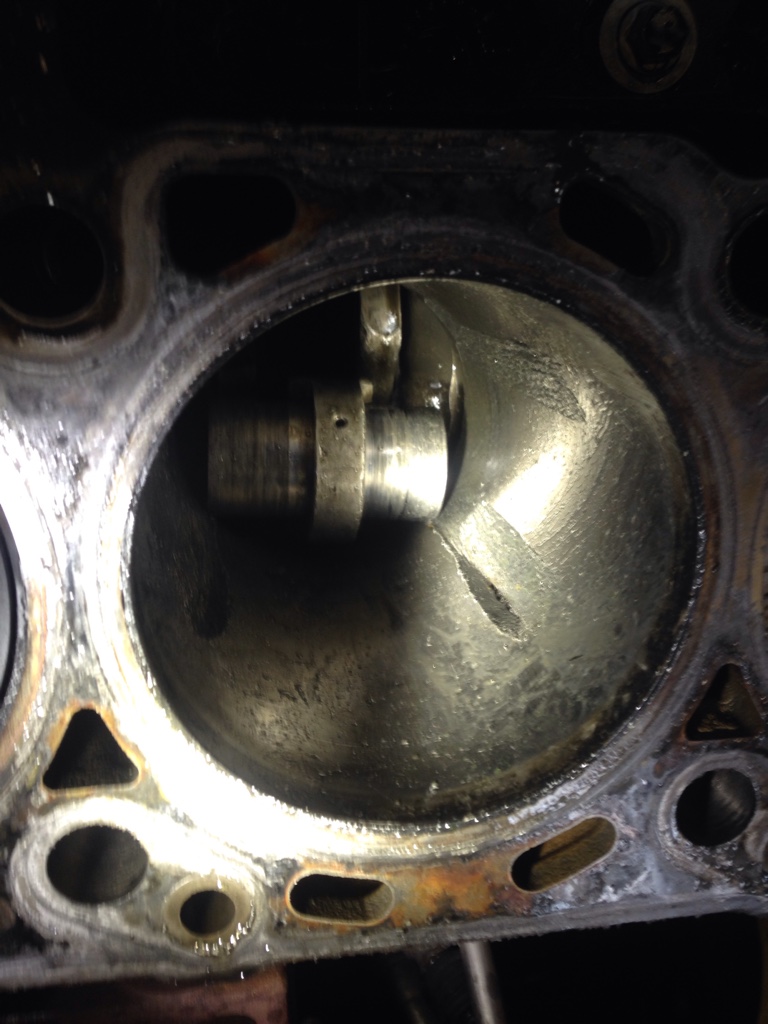

Had a truck come in the shop a few weeks ago, customer said he heard a pop noise at a stoplight and then started idling rough. He first took it to ford dealer because they told him they would fix anything that happened to it, turns out they wanted nothing to do with it now. Figured it had a cracked piston considering the massive amount of blowby. It also had a banging/clanging noise. I pulled the cab and head off and found this....anyone seen this before? This is what it looked like after removing the head. The piston is missing, assuming it's in the oil pan, and cylinder wall is BEAT, so bad that all the coolant inside the block got drained out with the oil. In the pics you can see a few spots where there are holes in the cylinder walls.

Sent from my iPhone using Tapatalk

forcefed6.4ford · Apr 26, 2016

See, thats your problem right there.

Highroller54 · Apr 26, 2016

Lol! I've seen it but not on a 6.4.

Magnum PD · Apr 26, 2016

There should be something on the end of that arm to keep it from digging into the round chamber.

6.0 Tech · Apr 26, 2016

Piston deeeleete kits lower egts

sootie · Apr 26, 2016

By any chance are any valves missing from the head? That is EXACTLY what mine looked like when it dropped a valve.

superpsd · Apr 27, 2016

Now it's a 5.6L. I had a 4.6L gas engine that dropped a valve and did the exact same thing.

powerstrokedkid87 · Apr 27, 2016

have two in the shop right now that look just like that. that's gona get pricey....

97f350stroker · Apr 27, 2016

Just remove that rod and weld up the cylinder she'll ride... LOL

78f100 · Apr 27, 2016

I have a 6.0 here like that, cylinder isn't as bad but the piston is gone. The customer had done a egr, and hpop then drove it about 70 miles when it locked up. I looked in the cylinder with a bore scope and couldn't find the piston...lol so pulled it down. On his a piece of the piston wedged between the rod and crank locking it up, 2 valves were gone but the stems were still in the head. I feel like my customer dropped something down the intake while he had it off causing the valve to break. It only has 140k on it.

powerjoke4life · Apr 27, 2016

so... did you lose compression?

DEEZUZ · Apr 27, 2016

Awesome thread is awesome.

Thank you

f350guy · Apr 27, 2016

Wow! Did he actually drive it like this to the dealer and around to your shop?

superpsd · Apr 27, 2016

From the marks on the cylinder wall it looks like he did. Beats calling a tow truck lol.

78f100 · Apr 27, 2016

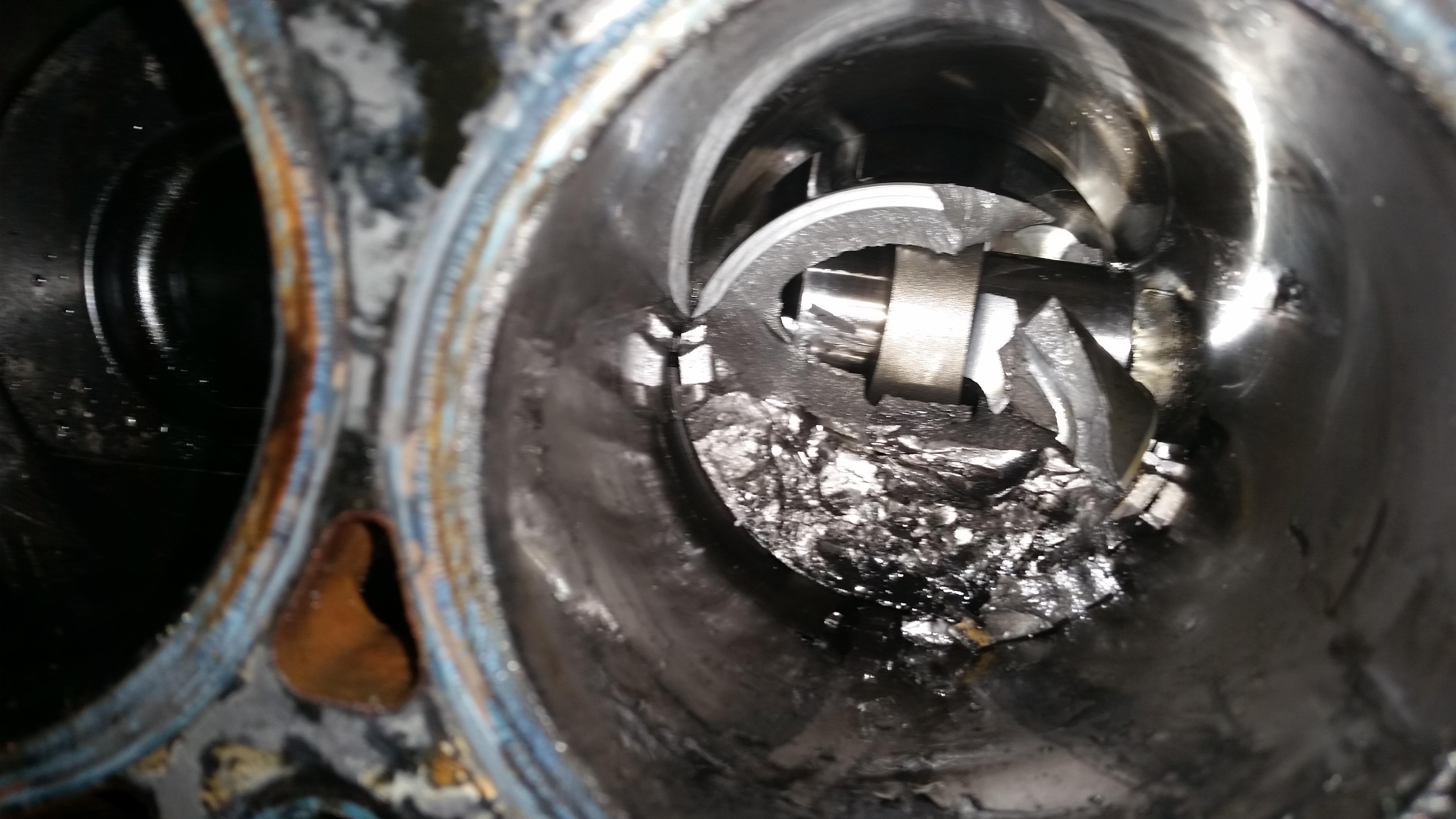

Here is the 6.0 I have at the shop.

bluedge8 · Apr 27, 2016

Might as well keep driving it, not like it's going to get any worse lol.

webb06 · Apr 27, 2016

6.0 Tech said:
Piston deeeleete kits lower egts

No doubt!

sootie said:
By any chance are any valves missing from the head? That is EXACTLY what mine looked like when it dropped a valve.

Valves intact, head is beat to crap on that cylinder

f350guy said:
Wow! Did he actually drive it like this to the dealer and around to your shop?

Hauled it to ford, when dropped off they said they were gunna go drive it. Not sure how far or if they even did. I started it at our shop and drove it inside. Having no idea it was like this, but the damage was already done. No way in saving that.

webb06 · Apr 27, 2016

I'm anxious to get the engine out and find out what the piston looks like.

Sent from my iPhone using Tapatalk

6.4f350 · Apr 28, 2016

Saw one like that out of an ambulance a while back that did the exact same thing. The entire truck was being sold dirt cheap, I was going to sleeve that cylinder and slap it together but wound up passing on the deal.

f350guy · Apr 28, 2016

webb06 said:
Hauled it to ford, when dropped off they said they were gunna go drive it. Not sure how far or if they even did. I started it at our shop and drove it inside. Having no idea it was like this, but the damage was already done. No way in saving that.

Sounds like a $15k repair bill to me.

I wonder what caused the piston failure? What a way for a motor to fail.
