So, I've always seen mixed reviews on intercoolers, so I figured it was time that we got some solid data on one. Peter from Alradco was all about helping make it happen, so we came up with a game plan to get some good solid info on this intercooler doing what most of us do with our trucks :D

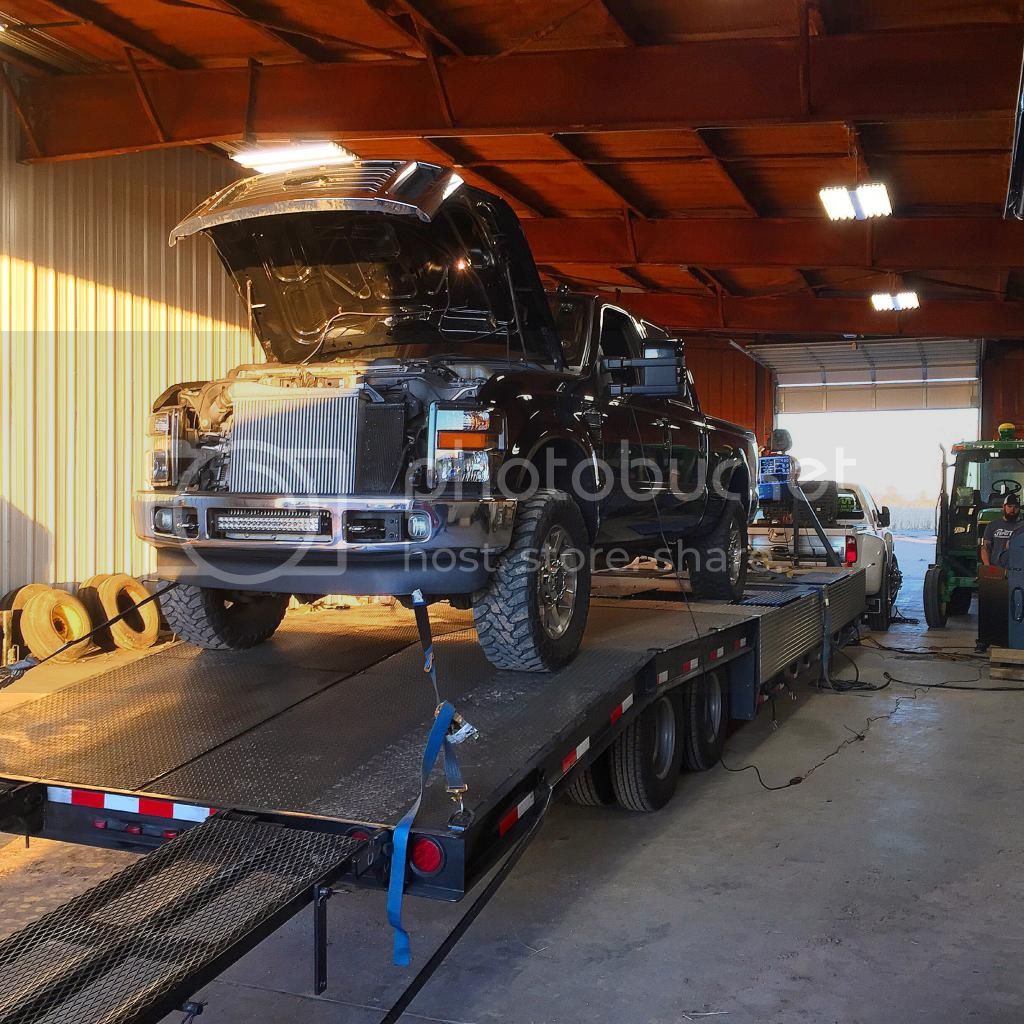

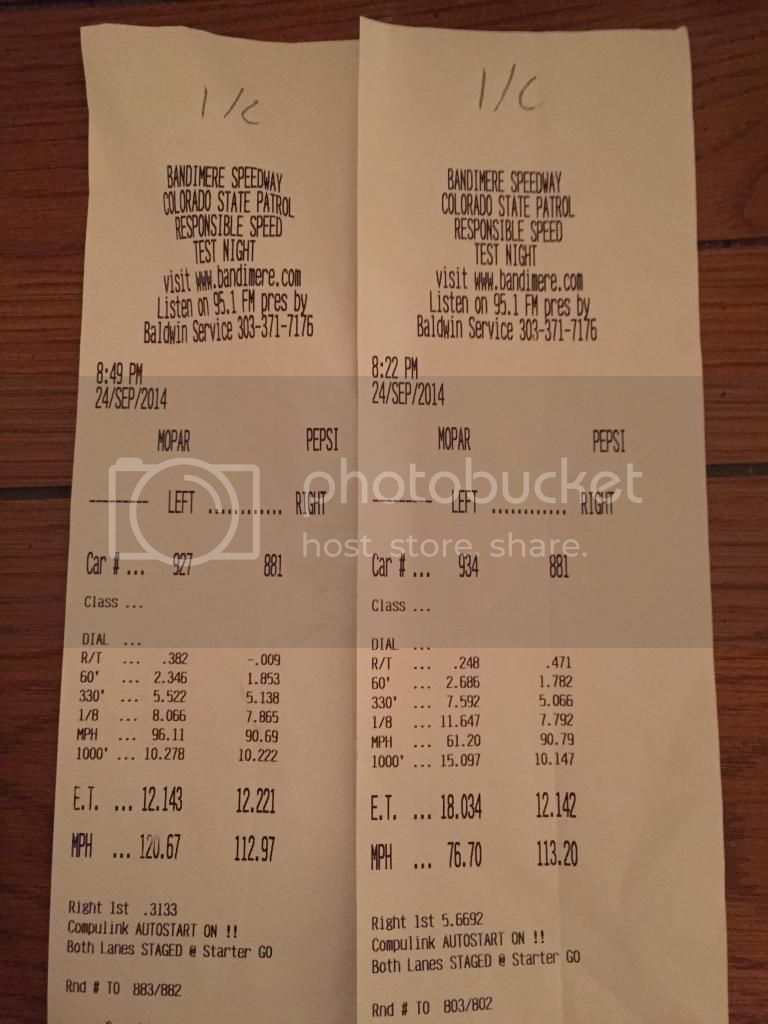

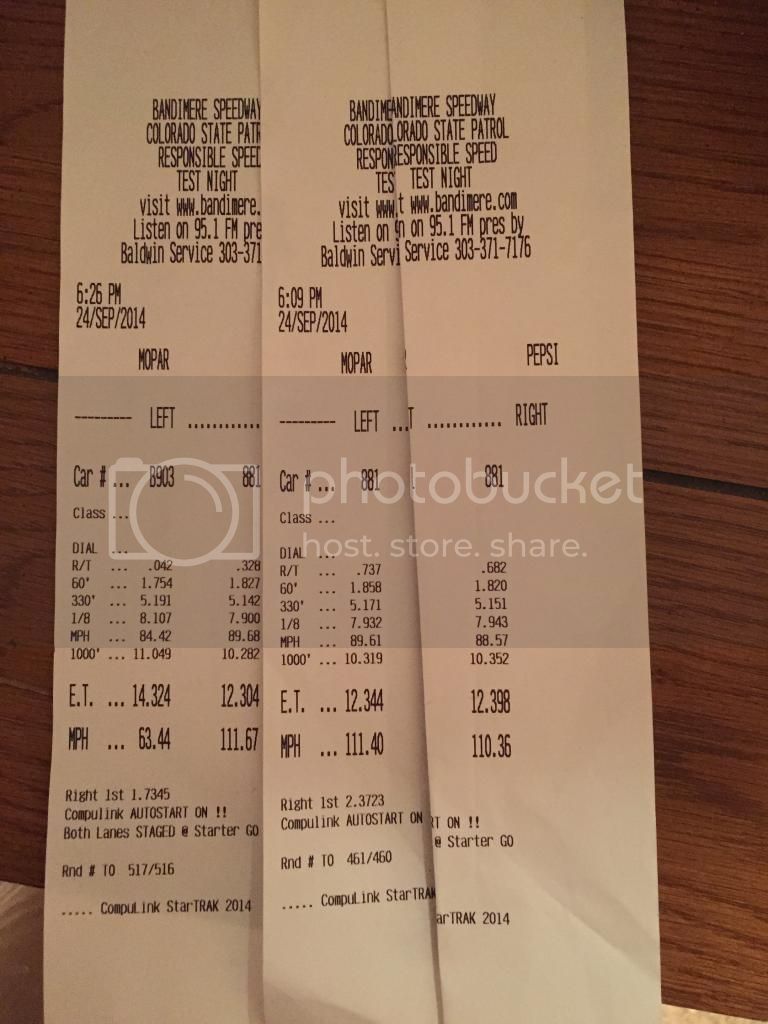

Started off with a raw intercooler from Alradco (no coating or polish) and Nathannial and I went to the track the first evening I could! Obviously we were at Bandimere, and Density Altitude was 8700' or so that night. I made 3 passes, and datalogged each pass. Each pass, I pegged the EGT sensor, so it's tough to say how toasty things got lol. I tried to stay consistent and my best pass was 12.3 at 111.67. Anyway, here are the slips and the Intercooler after we swapped it!


To recap - Peaks were:
EGT: 1760+ :lookaround:
Boost: 69 Psi
12.3 @ 111.67





And here's a video of one of my stock intercooler passes. Pay attention to smoke output.

http://www.youtube.com/watch?v=YeVq8y_xuP0

Swapping the Intercooler was smooth... really no hiccups aside from 1.) I forgot a 10mm socket somehow, and 2.) The brackets for my lightbar were in the way a little bit. Everything lined up perfect.


On to the good stuff! Now with the intercooler I made 2 more passes and datalogged each. I was shocked at the results.

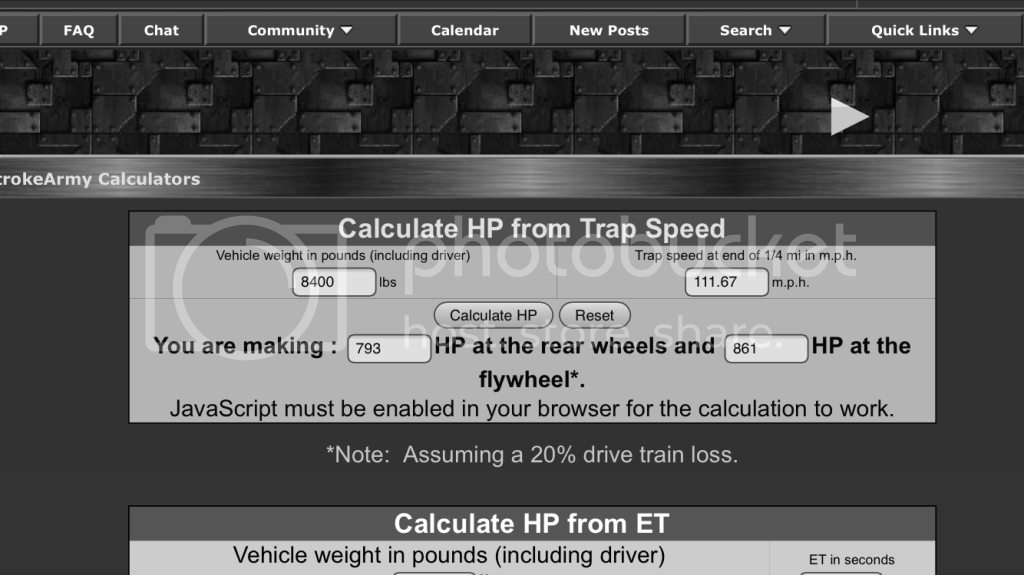

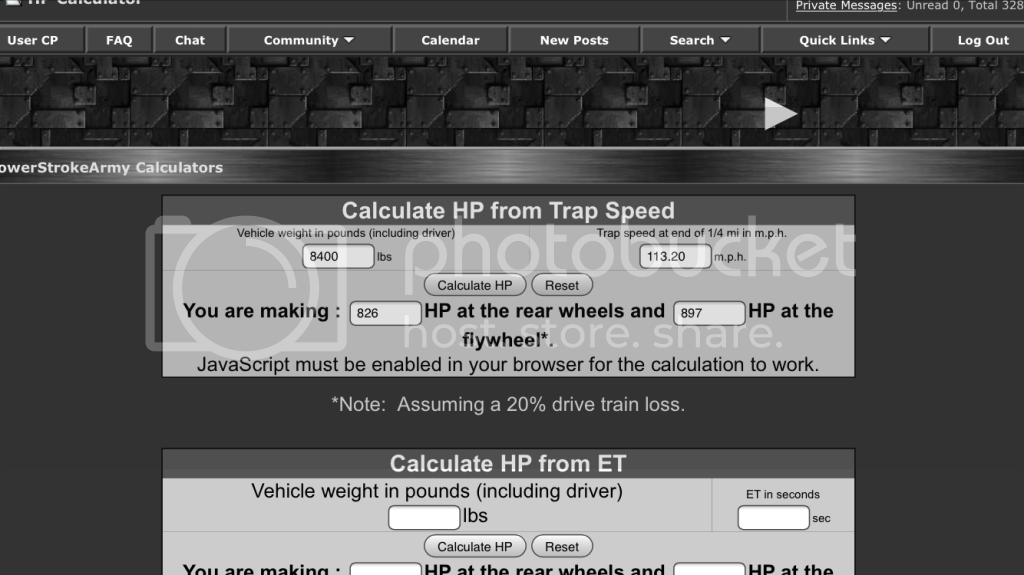

The truck picked up almost 2 tenths and almost 2 mph! Running the MPH through the calculator shows the truck picked up 33 horsepower :eek:







Looking at the datalogs for these 2 runs, peak EGT's were 1691* and 1680* and boost was 71 psi. Looks like a drop of 160+* EGT's and 2 psi more boost with the intercooler!

Additionally, smoke output was lower... you can see in the video how much quicker it clears up.

http://www.youtube.com/watch?v=nzpoWs-fl6I




On the drive home, EGT's hung right around 50* cooler than I would normally see through the same stretches. I confirmed that over the next several days of driving, EGT's seemed to stay 50* lower than with the stocker.

On top of that, my truck looks much better with an Intercooler behind the grill!



jdgleason

Active member
Joined
May 18, 2011
Messages
7,993
Reaction score
0
Location
Fort Collins, CO
Next up, I figured I'd throw it on the dyno to see if we could get some more concrete data.

The dyno - Mustang 500 Loaded.

Pretty Simple. Back to back pulls, and compare.

My truck was up first. I still had the Alradco cooler in it, so first numbers were with the IC. The truck made 755/1451 with a peak EGT of 1626*. Boost was 59 PSI. I had to try twice for this pull - I developed a boost leak that I couldn't hear inside the truck until the boot exploded... I was wondering why I couldn't get up on the chargers :p Please excuse the smoke show.



http://www.youtube.com/watch?v=jxMRXjSNdLE

This was a pull with no boost leak...

http://www.youtube.com/watch?v=zLTpuTgkxZU

We swapped the stock intercooler back in and made a couple more pulls. The best numbers were 728/1389 with a peak EGT of 1733* and 57 PSI. So, according to the dyno, we lost 27hp going back to the stock intercooler! And also lost 2 psi and gained 107* EGT.

Pretty consistent with what the track said! Here is a graph with the 2 runs overlayed on it.



We also decided that Justin's truck could benefit from some intercooler testing! For a refresher, Justin's truck is a 2010 with Intake, Exhaust, Gearhead tunes, my old Dirty Diesel CAC pipe and an Elite 71mm atmosphere.

Stock Intercooler made 639/1248 with a peak EGT of 1492* and 45psi. We swapped the intercooler and the truck made 647/1240 with a peak of 1447 and 48 psi. So, we gained 8 hp, lost 55* and made 3psi more boost on a truck with stock fuel. Pretty impressive!

http://www.youtube.com/watch?v=cN0CqKGoAI4
