light bar pics

Squat and Poot · Sep 3, 2014

It's the owner's, Dorian, truck.
20 " bar

Lugger007 · Sep 3, 2014

How did you guys mount your lights in the lower opening between the tow hooks?
Also any issues with restricted air flow?

Sent from my iPhone using Tapatalk

WUnderwood · Sep 3, 2014

I mounted my curved LED lightbar with a Rigid mount, but it needed to be changed, since the mount I assuming is for a straight bar. I lost my license plate in the front, and need to figure out how/where I am going to put it. I still have my stock tow hooks.

zporta · Sep 3, 2014

i used a piece of 1" aluminum angle. drilled it and used some bolts and fenderwashers

http://i265.photobucket.com/albums/...6-226A-4B12-817A-DCF19EDA3E5B_zpsseiwmgjz.jpg

http://i265.photobucket.com/albums/...3-31B3-48F3-B740-D96F22F17675_zps3bo2w8cp.jpg

matt92idi · Sep 4, 2014

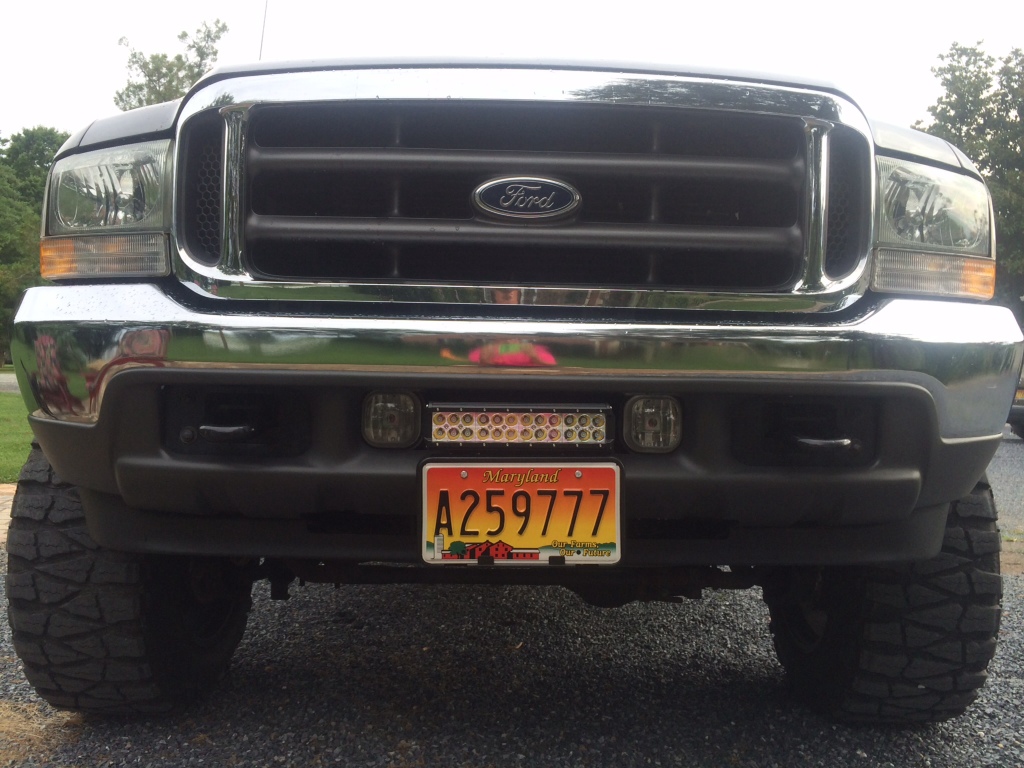

This is my little baby light bar. It's a 12 inch Cree light. I didn't wanna get too crazy and just use it off road on the farm at night.



Bigwill0815 · Sep 4, 2014

Just installed my D2's in the fogs on my '15

Sent from my iPhone using Tapatalk

kjdavis · Sep 5, 2014

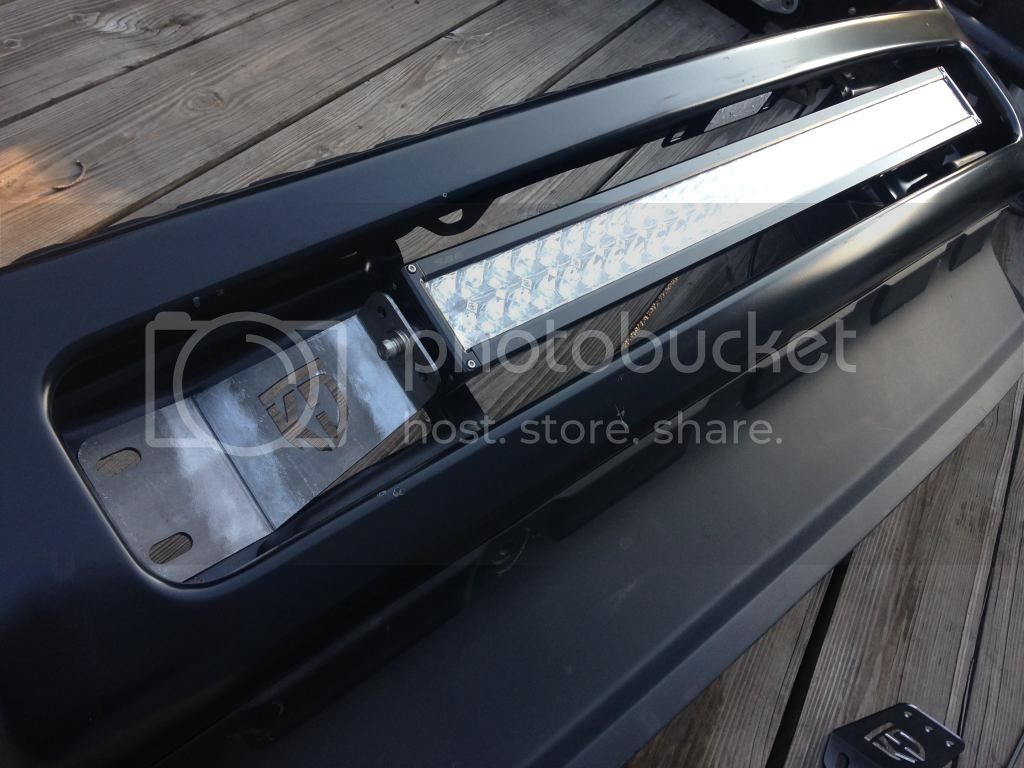

40"

30"

mwdguy · Sep 5, 2014

Pics of how far it sticks out from bumper please

kjdavis · Sep 5, 2014

mwdguy said:
Pics of how far it sticks out from bumper please

Sent you a PM

CUZICAN · Sep 6, 2014

kjdavis said:
40"

30"

Do you make these, or can I get a link to where I can get them?

Koda22 · Sep 6, 2014

Wow those are some nice mounts....very clean

Lugger007 · Sep 6, 2014

kjdavis said:
40"

30"

Did you have to remove the tow hooks? And did you make them or where did you get them?

Sent from my iPhone using Tapatalk

WUnderwood · Sep 6, 2014

can you take a pic of the backside of the bumper?

dsmracing1 · Sep 6, 2014

Lugger007 said:
Did you have to remove the tow hooks? And did you make them or where did you get them?

Sent from my iPhone using Tapatalk

WHS ^^^^^ I'm Interested as well

kjdavis · Sep 6, 2014

Yes, the tow hooks have to come off unfortunately.

1bad6.7 · Sep 6, 2014

look up kd fabworks and the tow hooks need to be removed but the bracket is bolt on. This is the way to go if you want a 40 led in the bumper.

jcain · Sep 6, 2014

just another option. 30" rigid SR in the grill

taterthedog · Sep 6, 2014

That looks clean. ^

anth · Sep 6, 2014

I saw a few pictures a while back where I believe it was the diesel cartel put two 30 inch light bars in the two grill bars on a platinum grill because they are mesh. I don't remember seeing any pictures of them on but they looked super slick.
